Soporte de pared Ergotron StyleView 61 cm (24 pulgadas)

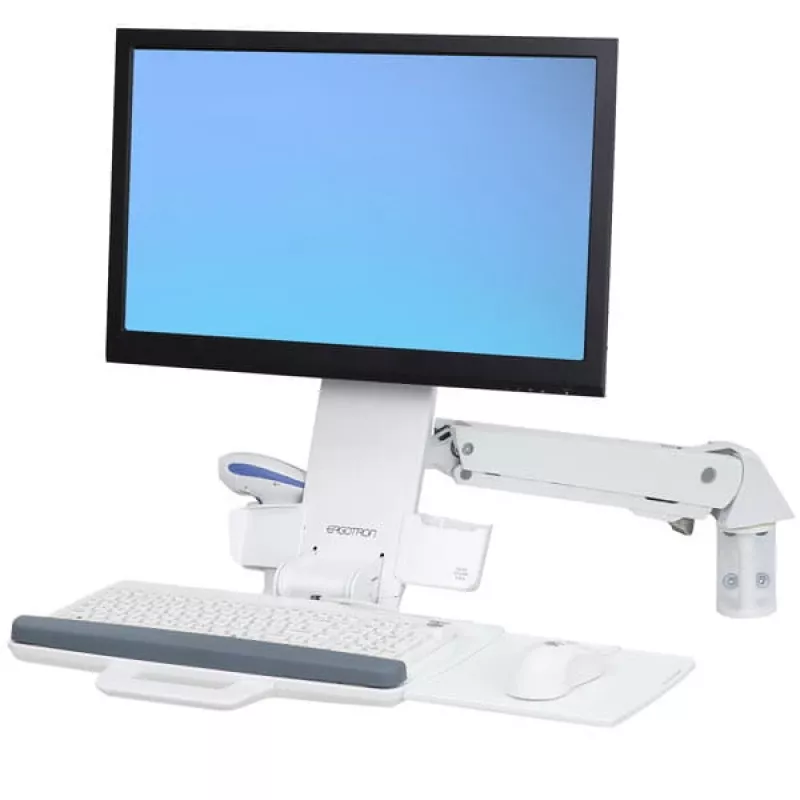

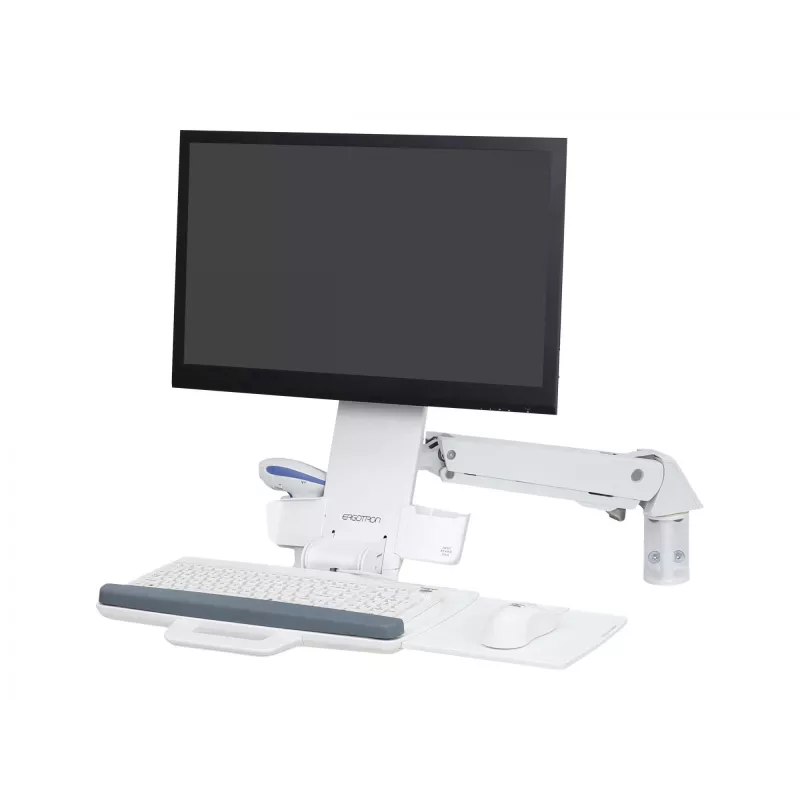

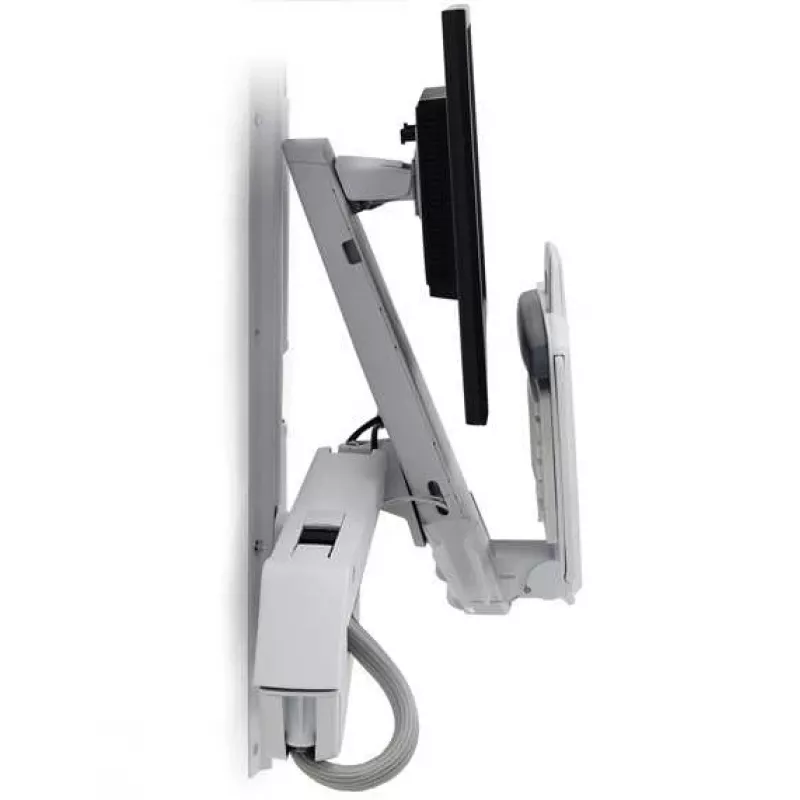

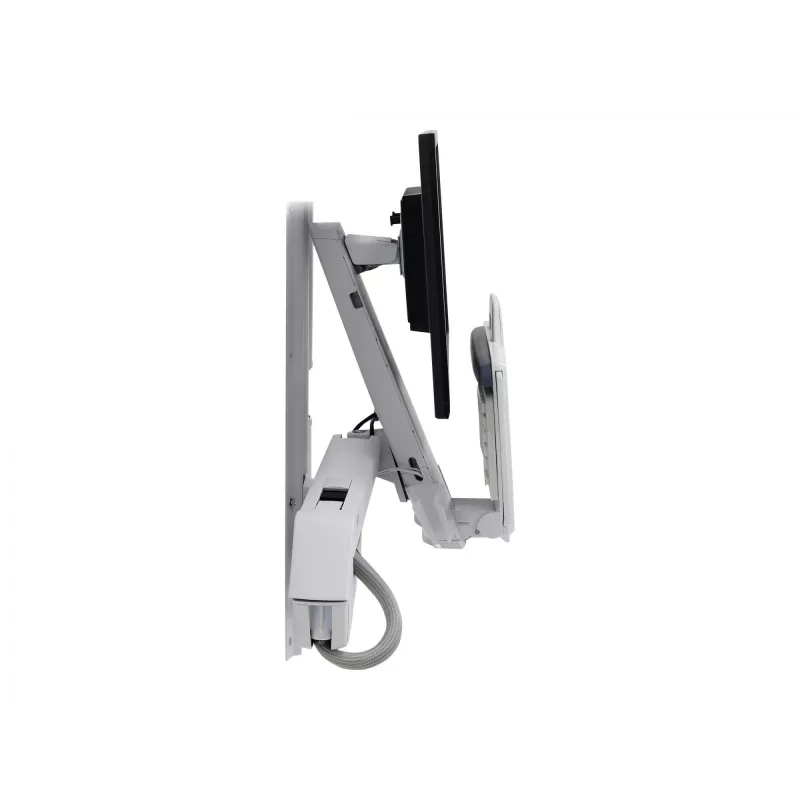

The Ergotron StyleView Sit-Stand Combo Arm (white) is a wall-mounted ergonomic workstation that supports monitors up to 24" (61 cm) and a maximum weight capacity of 13.2 kg. Constructed from durable aluminum, the unit holds a monitor, barcode scanner, keyboard, wrist rest and mouse on a single arm and provides a single-motion height adjustment to enable sitting or standing work. Cable management is integrated to conceal and organize cords and to simplify cleaning.

Advantages

The combo arm offers a flexible open-architecture design that can scale with future equipment. It provides a broad LCD height adjustment range (up to 25" / 64 cm) for sit-stand use and an independent five-inch (12.7 cm) LCD fine-adjustment to accommodate individual users. The system preserves the relative position of the screen and keyboard throughout the full range of motion. Features include an ergonomic back-tilt keyboard tray that stows inside the worksurface, a barcode scanner holder for easy access, the ability to extend components up to 39.75" (101 cm) from the wall and an easy-to-clean construction that supports infection-control protocols.

Suitable for

• Healthcare workstations where cleanliness and infection control are important
• Reception desks and point-of-sale with barcode scanning
• Shared or hot-desking environments requiring sit-stand flexibility
• Clinical documentation and data-entry tasks

Key specifications

• Manufacturer: ERGOTRON, model 45-266-216
• Colour: White
• Maximum supported display size: 24" (61 cm)
• Maximum weight capacity: 13.2 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Tilt range: -30° to 30°
• LCD height adjustment range: up to 25" (64 cm); independent 5" (12.7 cm) fine adjustment
• Maximum extension from wall: up to 39.75" (101 cm); minimum stored depth with keyboard stowed: approx. 12" (30 cm)
• Cable management system: integrated, concealed routing

How to use

Mount the StyleView arm to a suitable wall surface following the manufacturer’s installation instructions and VESA mounting pattern. Attach the monitor using the compatible VESA bracket (75 x 75 mm to 100 x 100 mm) and secure keyboard, wrist rest, mouse and barcode scanner in their respective positions on the arm. Adjust the system height with a single smooth motion to switch between sitting and standing positions; use the independent LCD fine-adjustment to set optimal screen height and the back-tilt keyboard tray to achieve a neutral wrist posture. Route cables through the integrated cable management channel to keep cords concealed and to make surface cleaning easier.

Recommendations

Ensure the wall structure can support the device and total equipment weight before installation. Follow ERGOTRON installation guidelines and local building codes. Regularly clean exposed surfaces and cable channels using manufacturer-approved cleaning agents to maintain infection-control standards and preserve finish.
