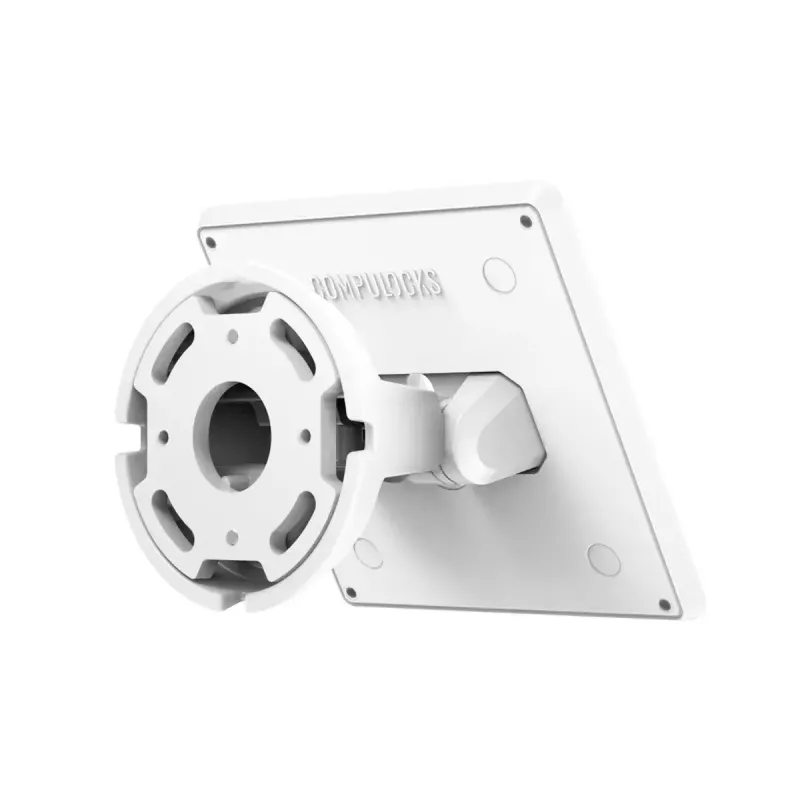

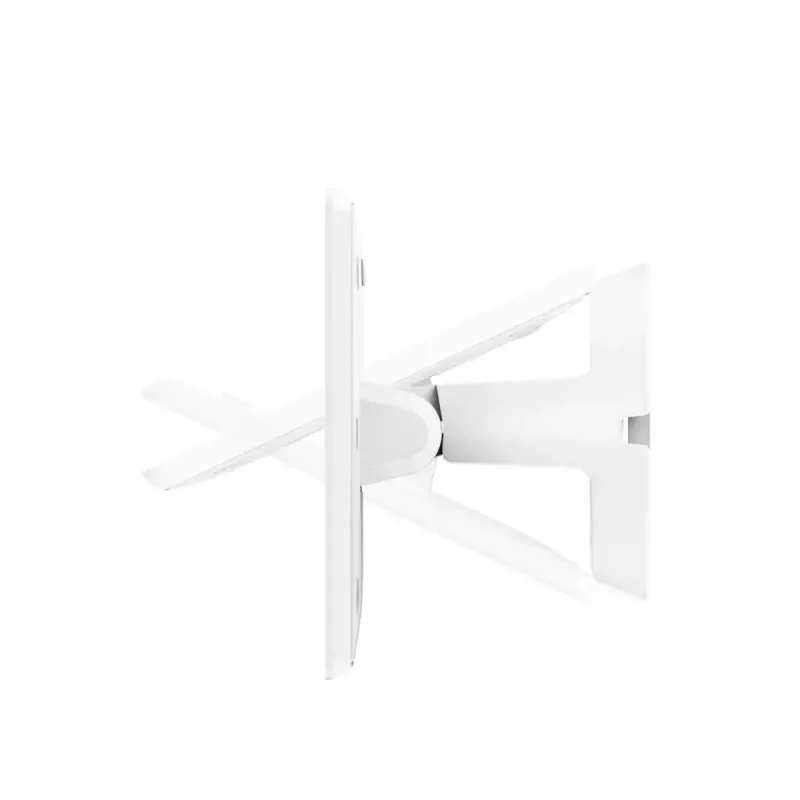

Soporte de pared inclinable VESA Compulocks 505W blanco tamaño máximo de pantalla 27"

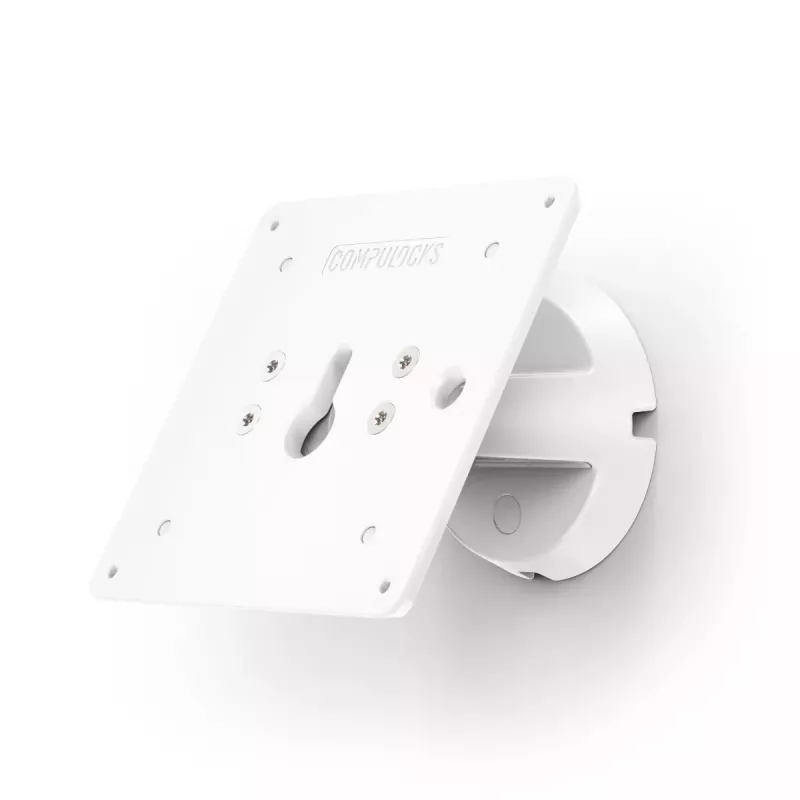

The Compulocks VESA Tilting Wall Mount (model 505W) is a white, aluminum wall bracket designed for displays up to 27" with a maximum VESA pattern of 100 x 100 mm. It provides tilt and pan adjustment, positions a display approximately 4 inches from the wall when used with a compatible enclosure, and includes integrated cable-routing options and a lock slot for added security.

Advantages

The mount offers adjustable tilt and panning for improved viewing angles and easy hinge tension access to maintain screen stability. Its aluminum construction provides durability while keeping the unit lightweight. Multiple cable exit options and a hidden cable passage through the arm enable neat cable management. A lock slot secures compatible universal tablet holders such as Magnetix. The white finish provides a clean, unobtrusive appearance for public or commercial installations.

Suitable for

• Mounting a single display up to 27" with VESA 100 x 100 or 75 x 75
• Interactive displays in retail, hospitality, or kiosk environments
• Secure installations requiring a lockable holder (e.g., Magnetix)
• Locations where concealed cable routing is desired

Key specifications

• Brand: Compulocks
• Model / MPN: 505W
• Maximum screen size: 27"
• Maximum VESA mount: 100 x 100 mm (also compatible with 75 x 75 mm)
• Number of displays supported: 1
• Material: Aluminum
• Colour: White

How to use

Attach the base plate to a suitable flat wall surface using appropriate fixings for the wall type. Connect the arm and secure the display to the VESA holes (100 x 100 mm or 75 x 75 mm) on the mount. Route the display cable through the arm or through one of the four cable exit options at the base; optionally route the cable through the center of the base plate for full concealment. Adjust hinge tension as required for stable tilt and pan, and insert a compatible lockable holder into the lock slot if additional security is needed.

Recommendations

Use fixings suited to the wall material and the display weight; check that the display and enclosure combination remains within the mount's specified limits. For public or unattended installations, secure the display with a compatible lockable holder and conceal cables through the provided routing channels.
