Soporte de pared Lift Ergotron Neo-Flex 61 cm (24 inch) Negro

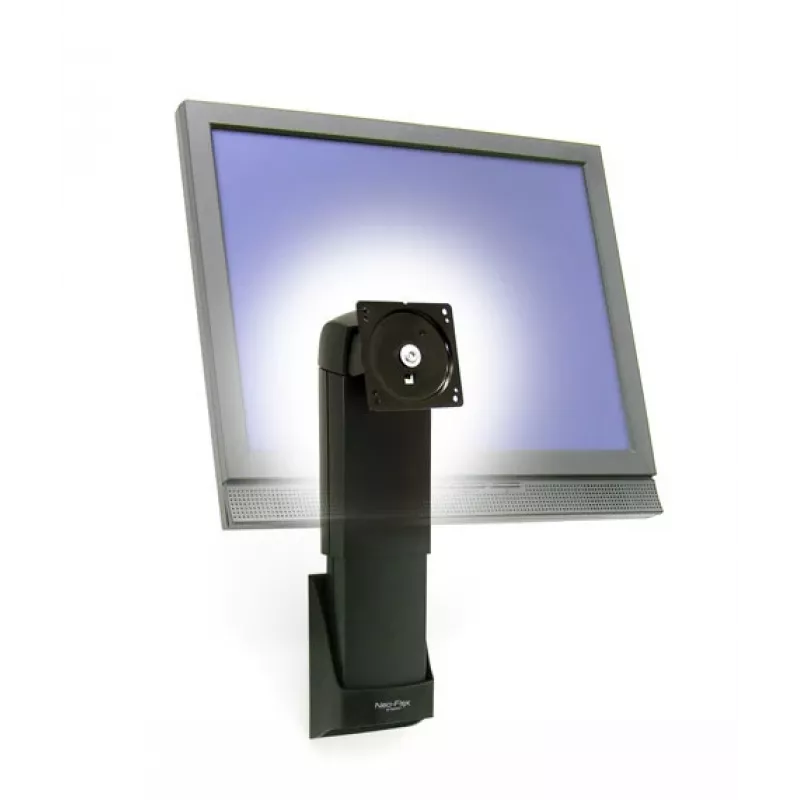

The Ergotron Neo-Flex Wall Mount Lift is a slim wall mount designed for LCD displays and TVs up to 61 cm (24") and a maximum weight of 7.2 kg. It provides 5" (12.7 cm) vertical lift and a wide range of motion including right/left pan, forward/back tilt and 90° rotation for portrait or landscape viewing. Its slim profile keeps the display close to the wall, making it suitable for space-constrained environments.

Advantages

Patented CF lift-and-pivot motion technology delivers smooth and precise adjustment of the display. The slim profile (less than 4" / 10 cm between wall and display) saves space while maintaining full mobility. The 5" vertical adjustment improves ergonomics for multiple users, and right/left pan plus forward/back tilt reduce glare and enhance viewing comfort. The mount supports standard VESA patterns and is compatible with most 24" screens within the specified weight limit.

Suitable for

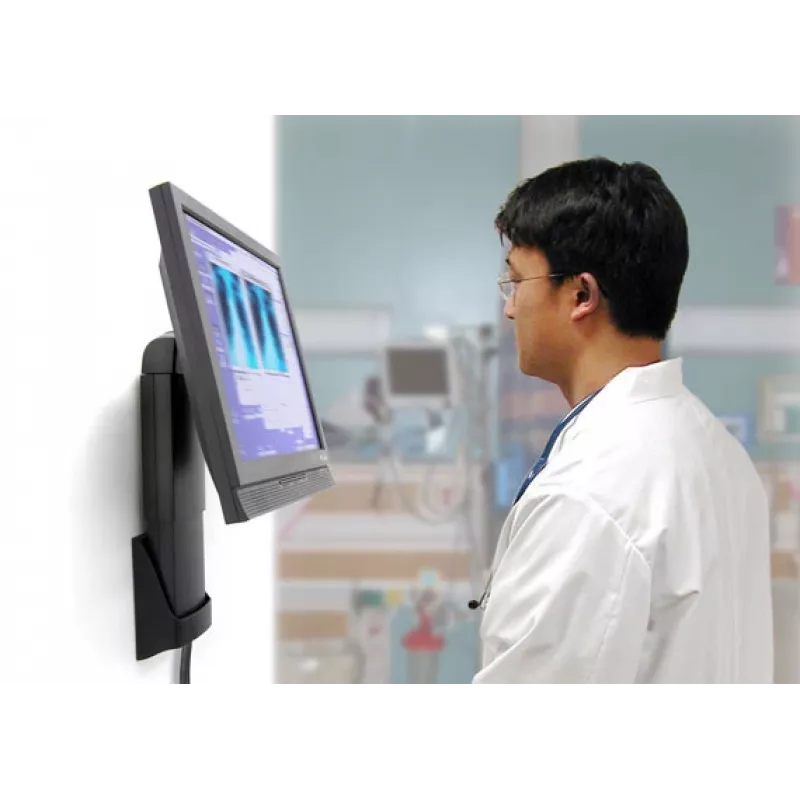

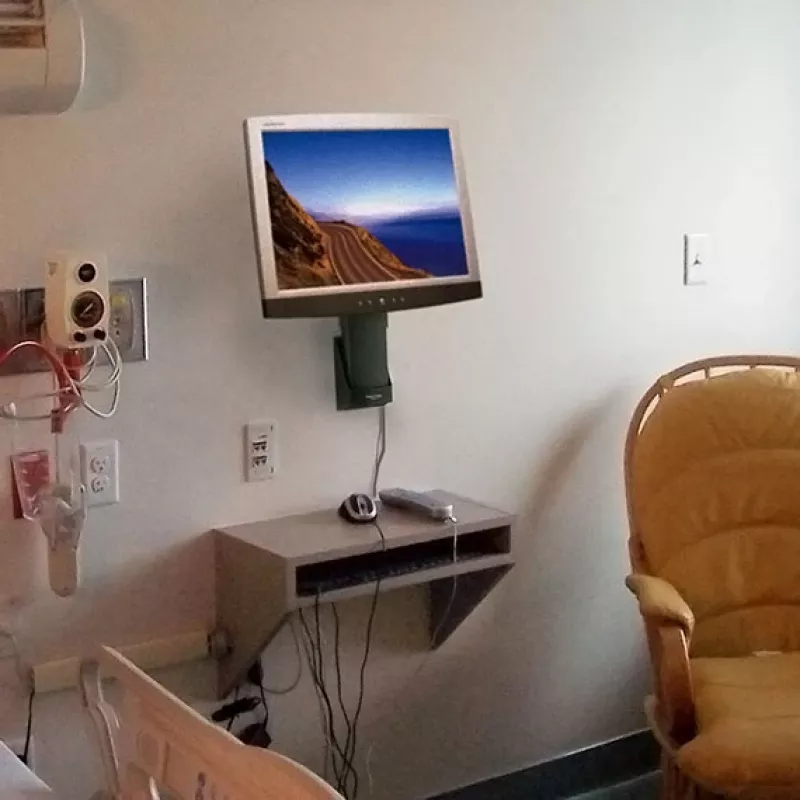

• Clinics and medical offices
• Laboratories and research facilities
• Airports and public spaces with limited wall space

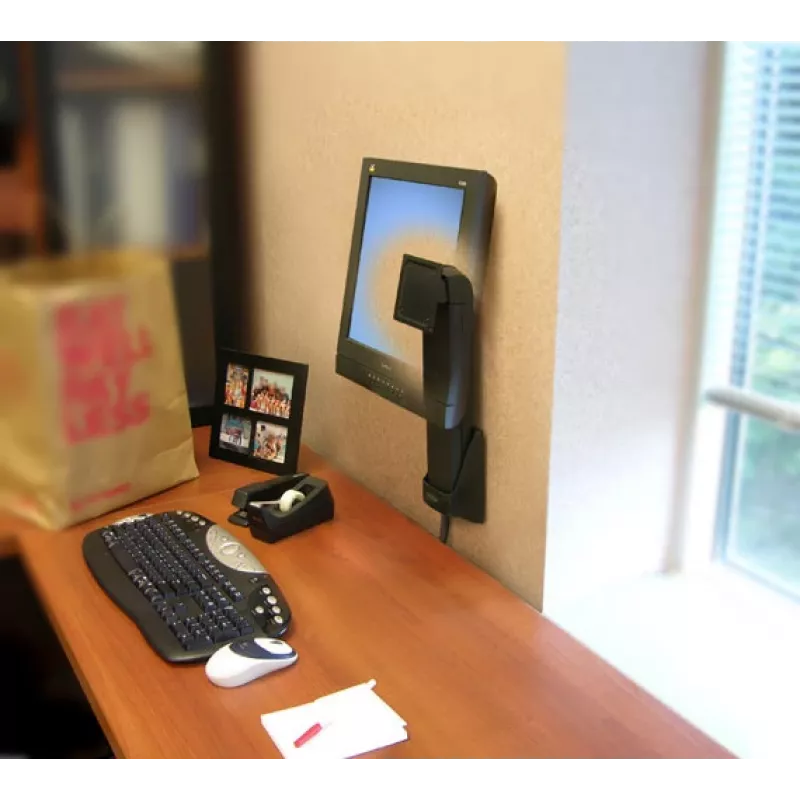

• Home or office workstations using 24" displays

Key specifications

• Maximum screen size: 61 cm (24")
• Maximum weight capacity: 7.2 kg
• VESA compatibility: 75 x 75 mm to 100 x 100 mm
• Tilt range: -35° to 35°
• Vertical adjustment (lift): 5" (12.7 cm)
• Rotation: 0° to 90° (landscape/portrait)
• Product colour: Black
• Product weight: 1.905 kg

How to use

Mount the Ergotron Neo-Flex to a solid wall following the included installation instructions and using appropriate anchors for your wall type. Attach the display to the VESA plate (75 x 75 mm or 100 x 100 mm) and verify the screen weight does not exceed 7.2 kg. Use the lift-and-pivot mechanism to raise or lower the display up to 5" (12.7 cm), tilt between -35° and 35°, pan left or right, and rotate 90° for portrait orientation. Check all fasteners after installation and adjust tension as needed to maintain smooth motion.

Recommendations

For stable and safe installation, mount on a load-bearing wall and use anchors rated for the combined weight of the mount and display. Periodically inspect mounting hardware and adjustment mechanisms for wear and retighten fasteners if necessary.
