Soporte de pared Megasat WB 60 aluminio-acero 60 cm distancia a la pared 200 mm altura

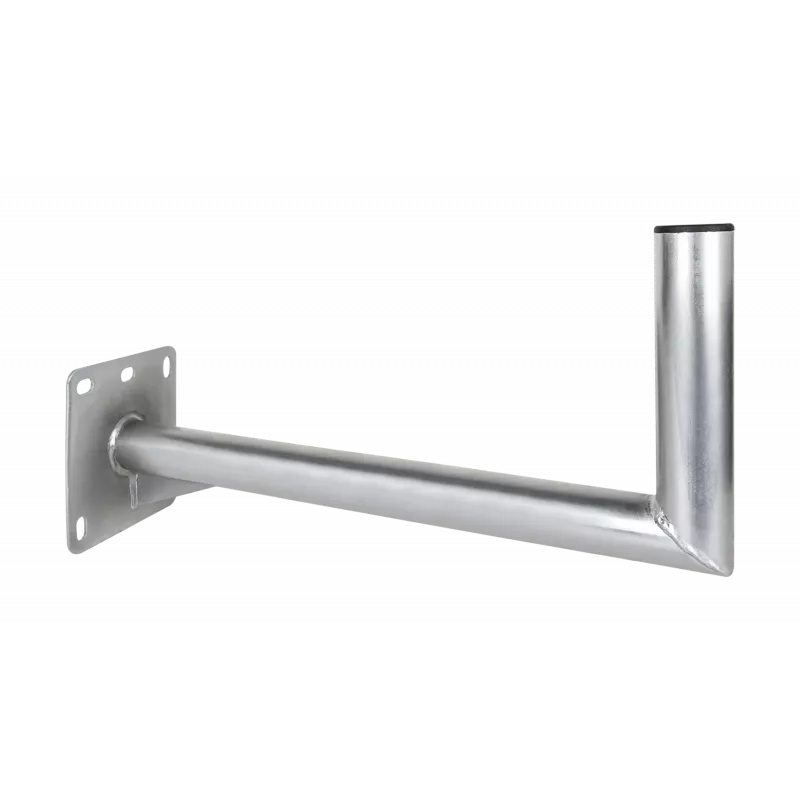

The Megasat WB 60 Aluminium Steel Wall Mount is a durable bracket for mounting a single satellite dish on a house wall. Constructed from steel with an aluminium-zinc coating, it resists corrosion and provides the rigidity required for larger dishes. The mount has a 60 cm distance from the wall and a height of 200 mm, with a tube diameter of 42 mm and a weight of 2.22 kg.

Advantages

Made of steel with an aluminium-zinc protective layer, the bracket offers high torsional stiffness and long-term resistance to corrosion without compromising structural stability. The oblong holes on the base plate allow fine alignment of the bracket after drilling. Available in multiple lengths, this version provides a 60 cm wall offset for improved reception and clearance.

Suitable for

Key specifications

How to use

Position the wall mount at the desired location on the house wall and mark drill points through the oblong holes in the base plate. Drill appropriate holes for the chosen wall anchors, insert anchors, and loosely attach the mount. Adjust the bracket alignment using the oblong holes to achieve correct vertical and horizontal orientation, then tighten all fasteners securely. Attach the satellite dish to the mount according to the dish manufacturer’s instructions and perform final alignment for optimal signal reception.

Recommendations

Use appropriate wall anchors and corrosion-resistant fasteners suited to the wall material (masonry, concrete, or brick). For safety and optimal performance with larger dishes, confirm load capacity and, if necessary, consult a qualified installer.
