Soporte de pared para antena parabólica ShiverPeaks ALU 550×250 mm para tubo de 50 mm

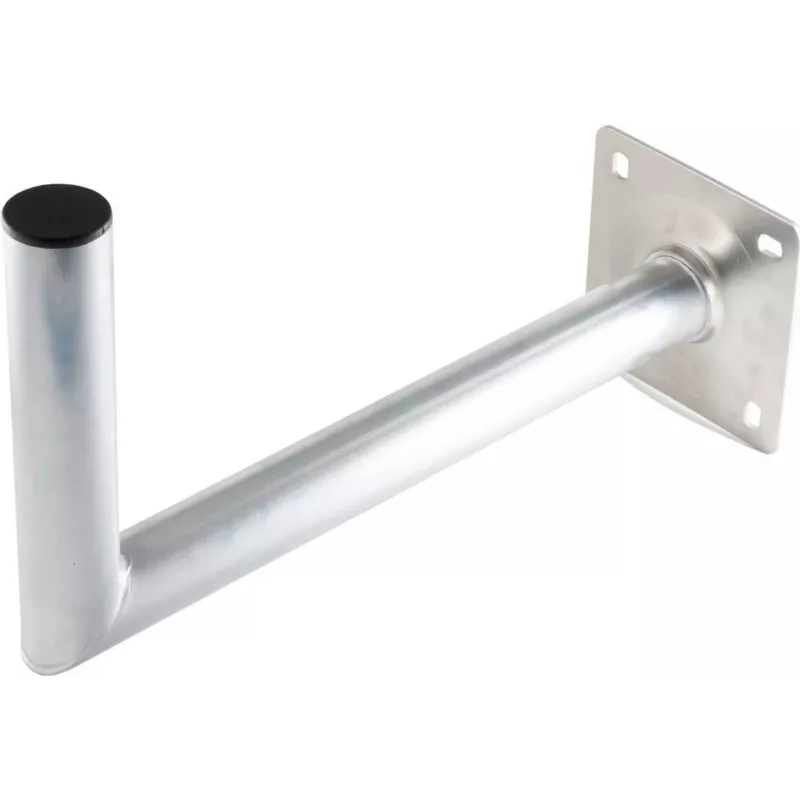

The Wall Mount for Satellite Antenna ShiverPeaks ALU 550×250 mm for 50 mm Pipe is an aluminum wall bracket designed to secure satellite dishes to exterior walls. The mount features a rectangular plate with dimensions 550 × 250 mm and a socket sized to accept a 50 mm diameter mast. Constructed from corrosion-resistant aluminum, the bracket provides a stable, low-maintenance fixing point for residential and light-commercial satellite installations where reliable alignment and weather resistance are required.

Advantages

The aluminum construction offers a high strength-to-weight ratio while resisting rust and corrosion. The large plate distributes load across a wider wall area to reduce point stress and improve stability. Compatibility with a 50 mm mast makes the mount suitable for standard satellite masts and accessories. The bracket’s simple mechanical design facilitates straightforward installation and stable, long-term support in outdoor conditions.

Suitable for

• Mounting parabolic satellite dishes on exterior walls of houses and small commercial buildings
• Fixed installations where a 50 mm diameter mast is used
• Locations requiring corrosion-resistant mounting hardware in outdoor environments

Key specifications

• Material: aluminum, corrosion-resistant
• Plate dimensions: 550 × 250 mm
• Mast/socket diameter: for 50 mm pipe
• Intended mounting: external wall fixed bracket
• Application environment: outdoor residential and light-commercial use

How to use

Position the plate on a suitable external wall surface and mark drill points according to the plate hole pattern. Use appropriate anchors or through-bolts for the wall material and secure the plate firmly to achieve a rigid base. Insert a 50 mm diameter mast into the socket and fasten with the provided clamping hardware or compatible bolts. Mount the satellite dish onto the mast, perform coarse alignment, tighten all fasteners, and then make fine adjustments to the dish elevation and azimuth to obtain optimal signal reception.

Recommendations

Verify wall substrate and choose suitable fixings for masonry, concrete, or timber walls; use stainless fasteners in coastal or high-humidity locations to extend service life. Periodically inspect fasteners and mast alignment, especially after severe weather, to maintain optimal signal performance.
