Soporte de pared Schwaiger WAH1525 001 plata aluminio

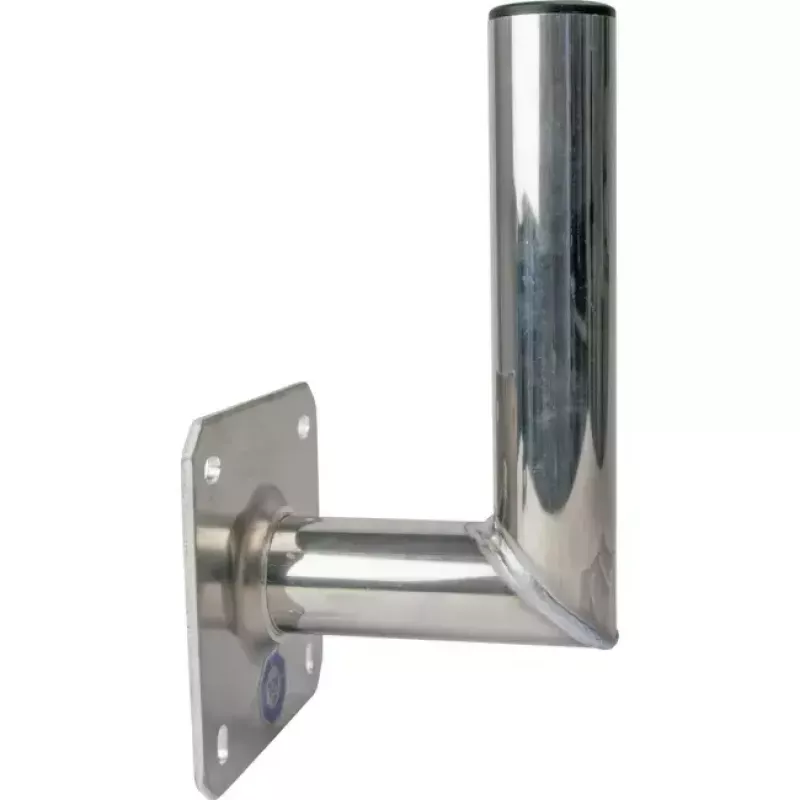

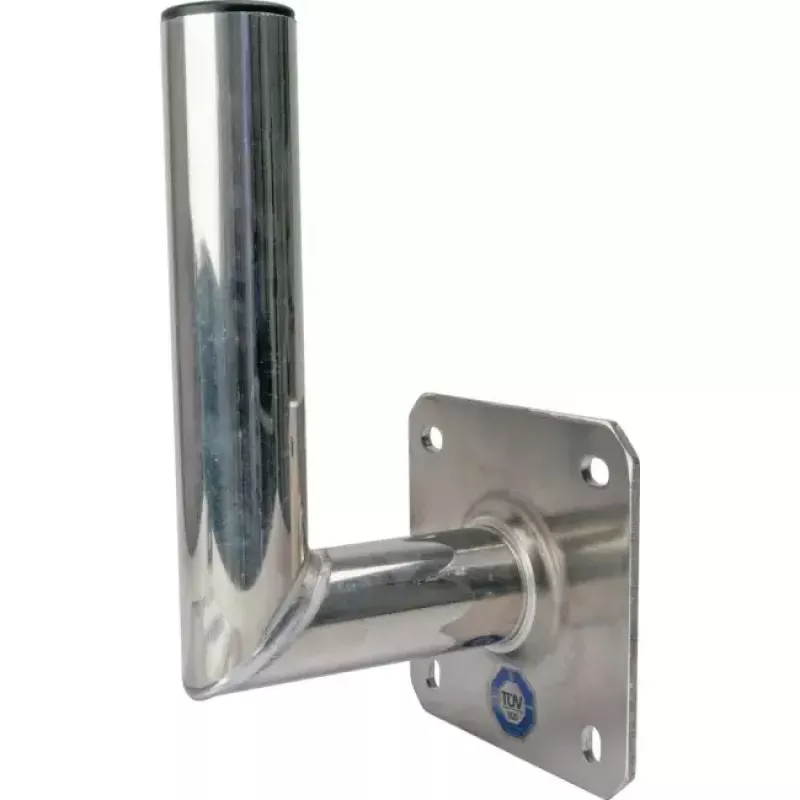

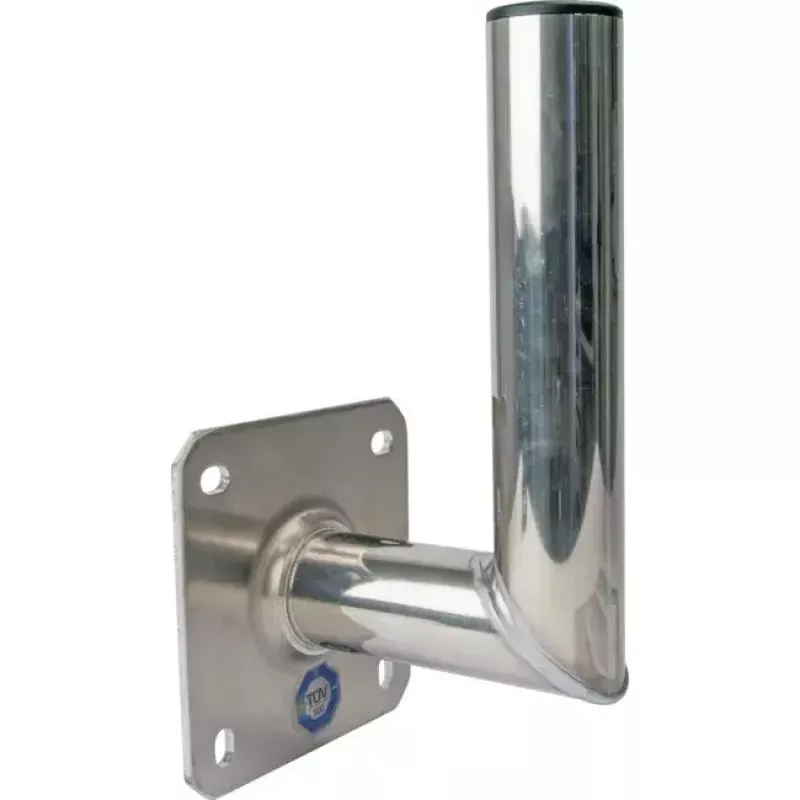

The Schwaiger WAH1525 001 wall mount bracket is a silver aluminium support designed for fastening offset antennas with a diameter of up to 90 cm. It provides a stable mounting solution with a 15 cm distance from the wall and compact dimensions suitable for residential and light commercial installations.

Advantages

The bracket is made of aluminium for corrosion resistance and reduced weight, while the silver finish offers a neutral appearance. With a 15 cm wall distance and dimensions of 150 mm × 150 mm × 305 mm, it allows secure attachment of satellite and offset antennas and keeps cabling accessible. The product is produced by SCHWAIGER and carries the manufacturer code WAH1525001 for easy identification.

Suitable for

• Mounting offset/satellite antennas up to 90 cm diameter
• Residential external walls and facades
• Light commercial installations requiring compact, stable brackets

Key specifications

• Brand: SCHWAIGER
• Model / MPN: WAH1525001
• Material: Aluminium
• Finish: Silver
• Wall distance: 15 cm

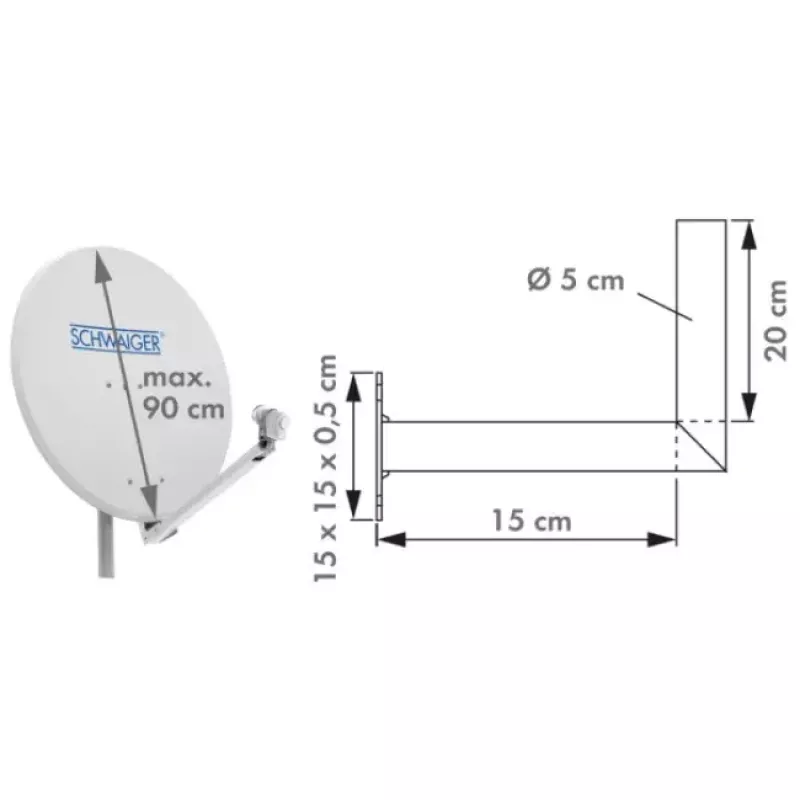

• Dimensions (W × D × H): 150 mm × 150 mm × 305 mm
• Compatible antenna diameter: up to 90 cm
• EAN: 4004005027372

How to use

Choose a suitable mounting location on a stable wall or façade, ensuring the antenna has the required clear line of sight. Mark and drill holes for the bracket according to the bracket's mounting holes, using appropriate anchors or bolts for the wall material. Attach the bracket securely to the wall, then mount the offset antenna to the bracket and tighten all fasteners. Route and secure coaxial cables as needed, and adjust antenna alignment per receiver instructions.

Recommendations

For long-term performance, use corrosion-resistant fixings appropriate for the wall type, check and retighten fasteners seasonally, and follow antenna manufacturer guidance for alignment and wind-load considerations.
