Soporte de pared SMS Smart Media Solutions FS000450AW-P2

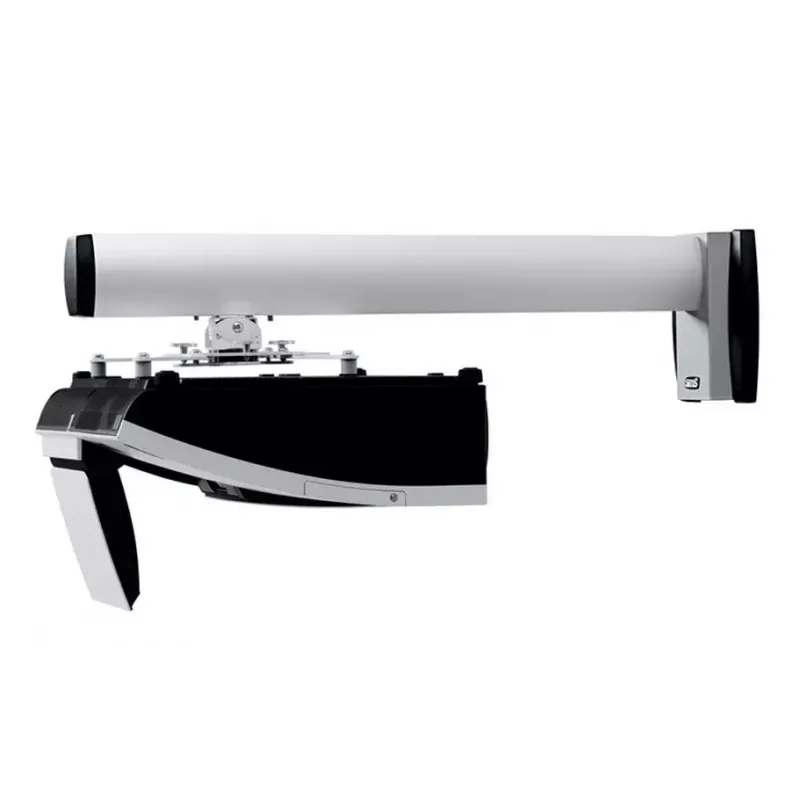

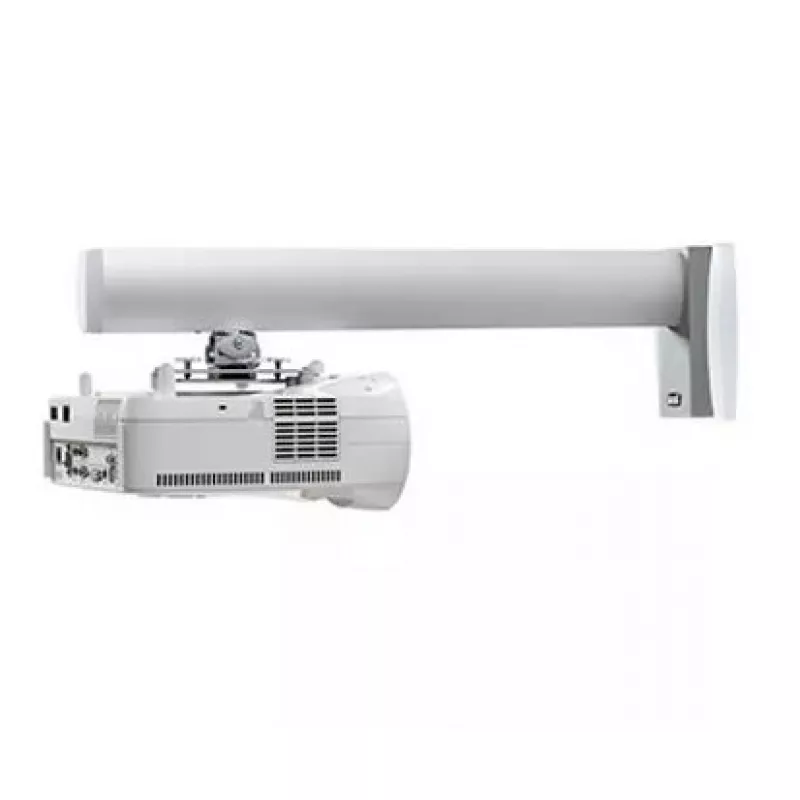

The SMS Smart Media Solutions FS000450AW-P2 is a wall mount for short-throw projectors that allows installation close to the wall or ceiling. Constructed from aluminium with white plastic fittings, it supports projectors up to 12 kg and has a 450 mm depth, offering a robust and discreet solution for mounting projectors where space is limited.

Advantages

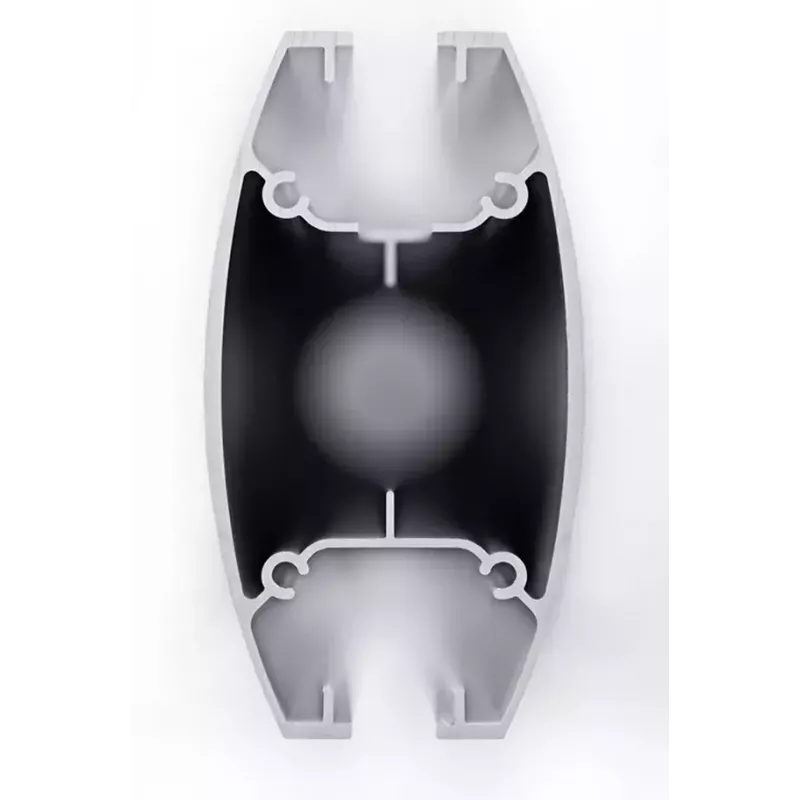

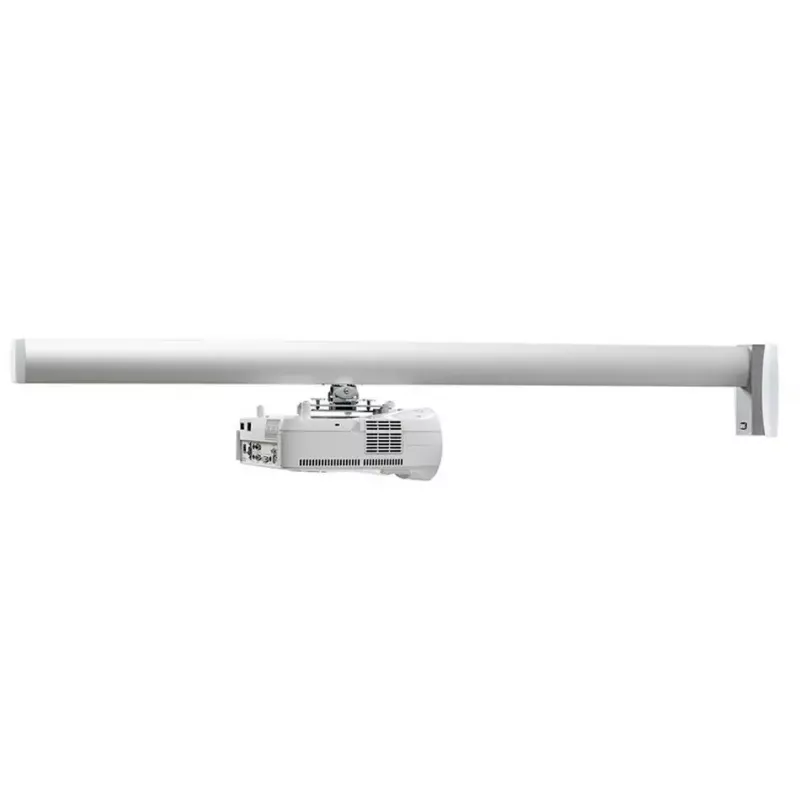

The mount provides flexible vertical adjustment and allows the projector to be suspended at any position along the full length of the pillar. It offers swivel and tilt movement for precise alignment. Modern aluminium construction with white or black plastic fittings and an optional matching slide make it suitable for different room interiors.

Suitable for

• Short-throw projectors
• Living rooms and home cinemas with limited projection distance
• Small conference rooms and classrooms where ceiling mounting is restricted
• Installations requiring a clean, near-ceiling wall plate

Key specifications

• Model: SMS FS000450AW-P2
• Mounting type: Wall
• Maximum load: 12 kg
• Depth: 450 mm
• Colour: Aluminium with white plastic fittings (option for black fittings)
• EAN: 8715946423265

How to use

Attach the wall plate close to the ceiling at a structurally sound point, then mount the aluminium pillar to the plate. Slide the projector bracket to the desired height along the pillar and fix it in place. Connect the universal slide (white or black) to match the projector and room appearance. Adjust swivel and tilt to achieve correct image alignment, then tighten all fasteners to secure the installation.

Recommendations

Ensure the chosen mounting point can support the combined weight of the mount and projector (maximum 12 kg). Use appropriate wall anchors for your wall type and verify projector compatibility with the universal slide before final tightening.
