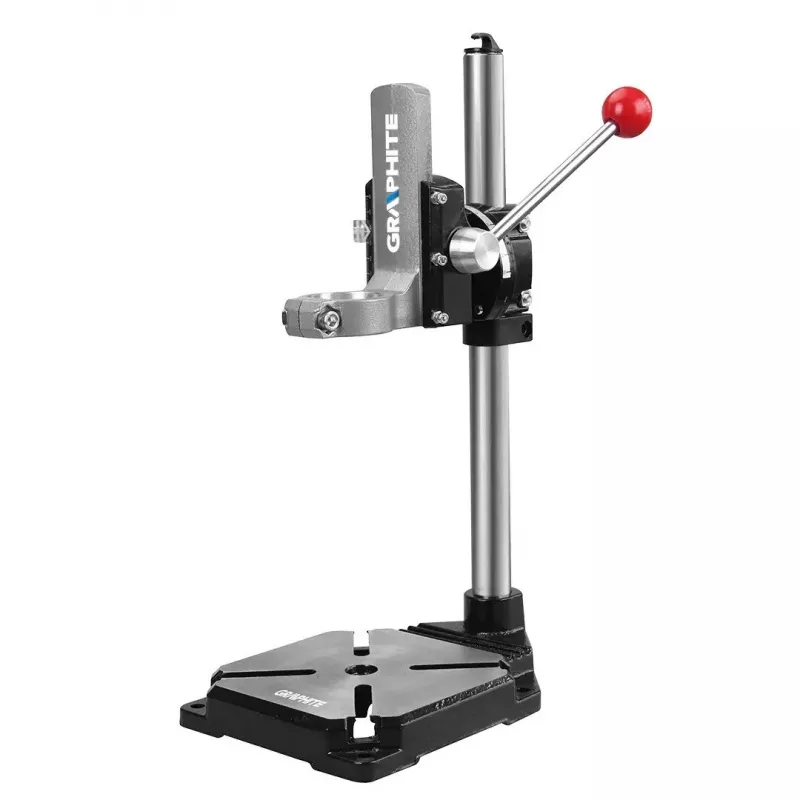

Soporte de taladro GRAPHITE 56H655 para brocas de 42 mm de diámetro, carrera 60 mm

Drill stand GRAPHITE 56H655 for 42 mm diameter drills, 60 mm stroke is an accessory designed to secure a handheld drill in a guided column to perform stable vertical drilling. The stand accepts drills with a maximum drilling diameter of 42 mm and provides a 60 mm vertical stroke, enabling repeatable hole placement and improved alignment compared with freehand drilling. It is intended for workshop and light industrial environments where better control and precision are required for wood, plastic and metal-compatible materials.

Advantages

The stand delivers a fixed drilling axis to reduce deviation and increase repeatability. Its guided column and mounting interface improve safety by keeping the user's hands away from the rotating bit and allow consistent pressure application for cleaner holes. The compact design simplifies setup on benches or portable work surfaces and is compatible with standard pistol-grip drills within the specified diameter limit.

Suitable for

• Precise vertical drilling in wood panels and boards
• Drilling holes in plastics and composite materials
• Light metalworking tasks where handheld drills are used
• Workshop jigs, prototype assembly and repetitive drilling operations

Key specifications

• Maximum compatible drill diameter: 42 mm
• Vertical stroke (travel): 60 mm
• Mounting arrangement: guided column for handheld drills
• Intended applications: workshop and light industrial use
• Material compatibility: wood, plastics, and metal-compatible materials

How to use

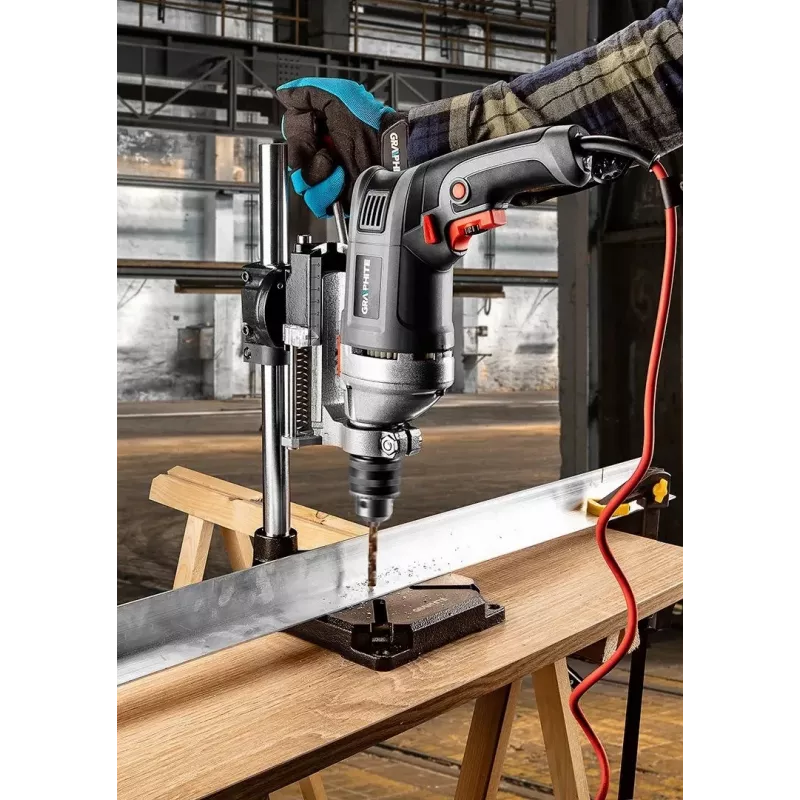

Install the drill stand on a stable bench or work surface and secure it according to the manufacturer's mounting points. Fit a handheld drill into the stand's mounting interface, ensuring the drill's chuck and body are compatible with the holder and the chuck can accept the chosen drill bit with a maximum diameter of 42 mm. Adjust the vertical position and set the stop if depth-limiting is required, then clamp or lock the drill in place. Operate the drill with controlled feed through the stand's guided column, using the full 60 mm stroke range as needed while maintaining steady pressure. Regularly check fastenings and alignment before each use.

Recommendations

Use appropriate drill bits for the material being worked and observe safety measures: wear eye protection, secure the workpiece, and ensure the drill is switched off before mounting or removing it from the stand. Avoid exceeding the maximum drill diameter and do not apply excessive lateral force to the drill while operating to prevent damage to the stand or the tool.
