Soporte de techo Chief KITMC080135W

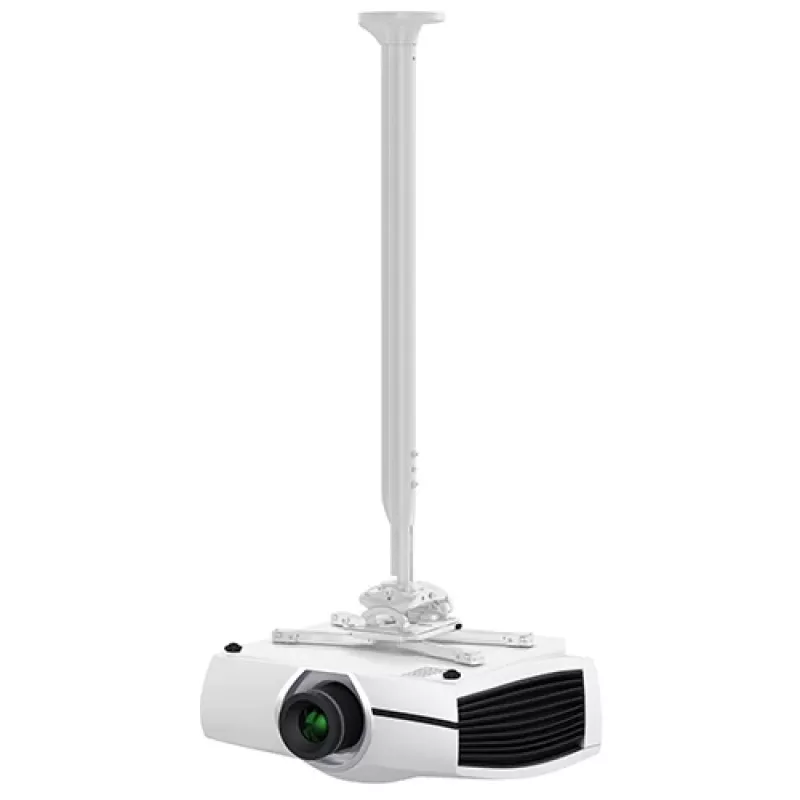

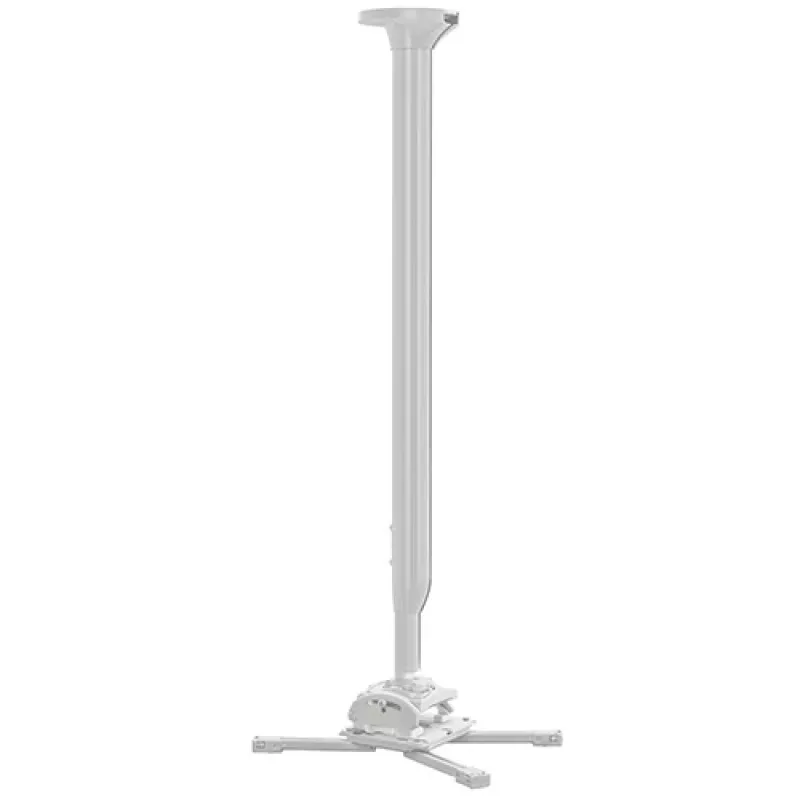

The Chief KITMC080135W ceiling mount kit contains all components required for most projector ceiling installations: the RPMEU Mini Elite projector mount, CPA116 flat ceiling plate, CPA640 decorative shield ring and an 80–135 cm telescoping extension column. The kit is finished in white and is suitable for mounting projectors up to the specified load capacity.

Advantages

The telescoping column offers infinite positioning between 80 cm and 135 cm, allowing precise adjustment of projector height. Microzone adjustments enable fine registration for accurate image alignment. A Q-Lock quick release lever provides tool-free connect/disconnect for servicing. Integrated keyed locking and All-Points Security hardware increase theft deterrence and secure the projector to the mount.

Suitable for

• Projector installations requiring adjustable ceiling drop (80–135 cm)
• Commercial and educational environments where secure mounting is needed
• Rooms requiring fine image alignment and occasional projector servicing

Key specifications

• Model: Chief KITMC080135W
• Included components: RPMEU Mini Elite mount, CPA116 ceiling plate, CPA640 shield ring, 80–135 cm telescoping column
• Mounting type: Ceiling
• Colour: White
• Maximum supported weight: 22 kg
• Product weight: 4 kg

How to use

Install the CPA116 flat ceiling plate to a suitable structural support according to local building codes, attach the telescoping column to the plate, and mount the RPMEU Mini Elite projector bracket to the column. Secure the projector to the bracket and use the microzone adjustment controls to align the image. Use the Q-Lock quick release lever when you need to disconnect the projector for service.

Recommendations

Ensure the ceiling structure and fasteners are rated for the combined weight of the mount and projector (maximum 22 kg). Follow all installation instructions and local regulations. Use the keyed lock and All-Points Security hardware when additional physical security is required.
