Soporte de techo Kindermann 4000000030

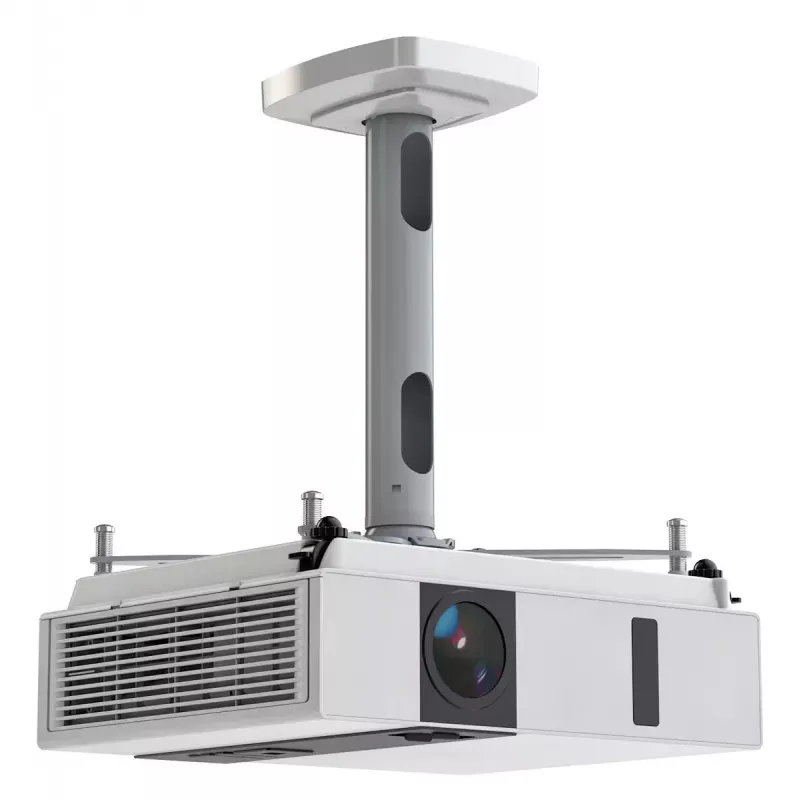

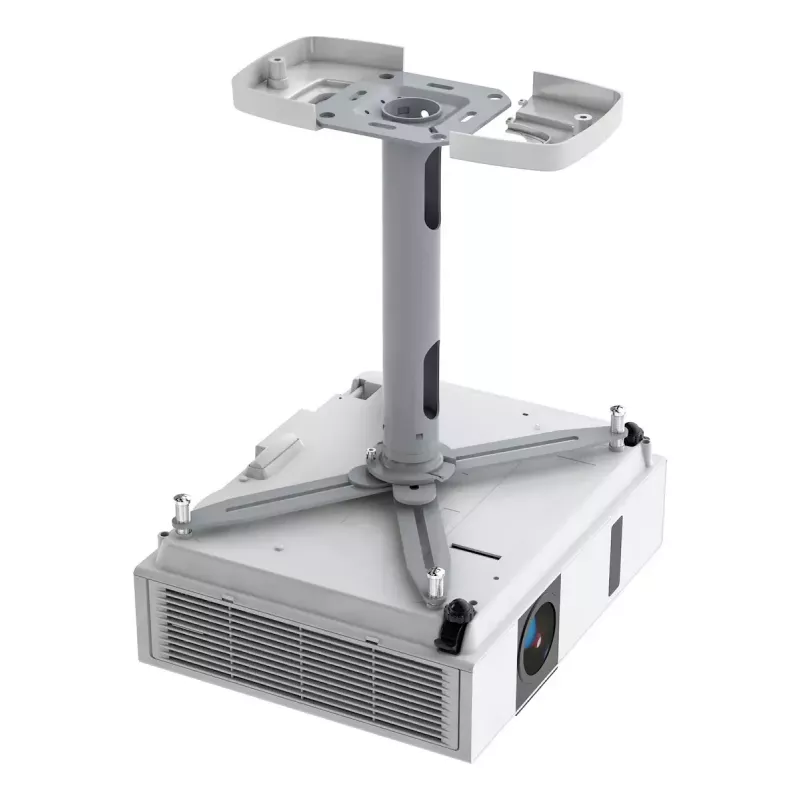

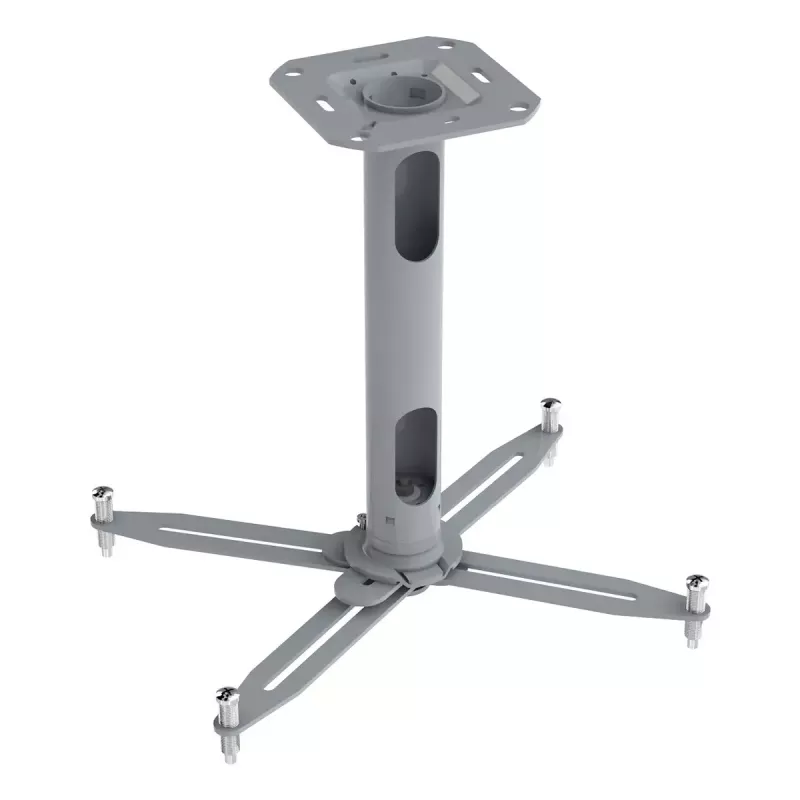

Ceiling mount for projectors Kindermann 4000000030, finished in RAL 9006 silver metallic with a supplied white (RAL 9003) plastic rosette. The mount has a ceiling distance of 30 cm, an inner tube diameter of 37 mm and supports devices up to 20 kg. It is fully pre-mounted for faster installation and includes an integrated cable channel for a tidy installation.

Advantages

The bracket features a 3D joint allowing tilt of ±20° in all directions and rotation of ±180°, enabling precise projector alignment. It permits quick exchange of the projector for maintenance, has adjustable fixing points from 100 to 370 mm, and is TÜV/GS certified for safety. The included plastic rosette in white provides a clean finish at the ceiling connection.

Suitable for

Key specifications

How to use

Attach the pre-mounted ceiling plate to a suitable ceiling substrate following local building regulations and using appropriate fasteners (not supplied). Route cables through the integrated cable channel and secure the projector to the mounting plate using the adjustable fixing points (100–370 mm). Use the 3D joint to set the required tilt and rotation, then tighten all adjustment screws to lock the position.

Recommendations

Ensure the ceiling structure and chosen fasteners can safely support the combined weight of the mount and the projector (up to 20 kg). For permanent installations follow local electrical and building codes and consider professional installation if unsure.
