Soporte de techo Neomounts CL35-340BL12 peso máximo 50 kg para pantallas de 23–42"

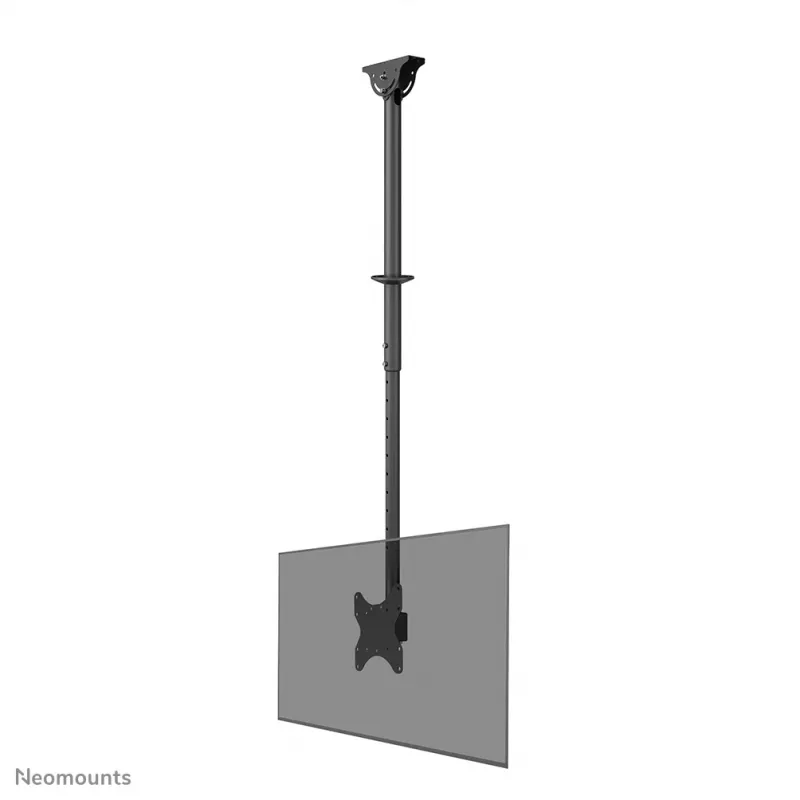

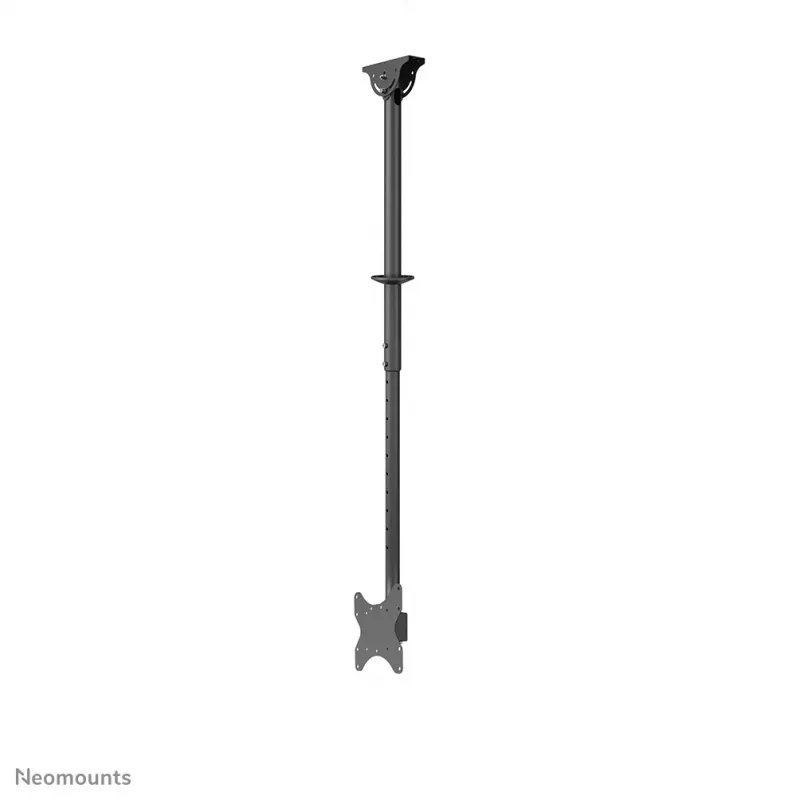

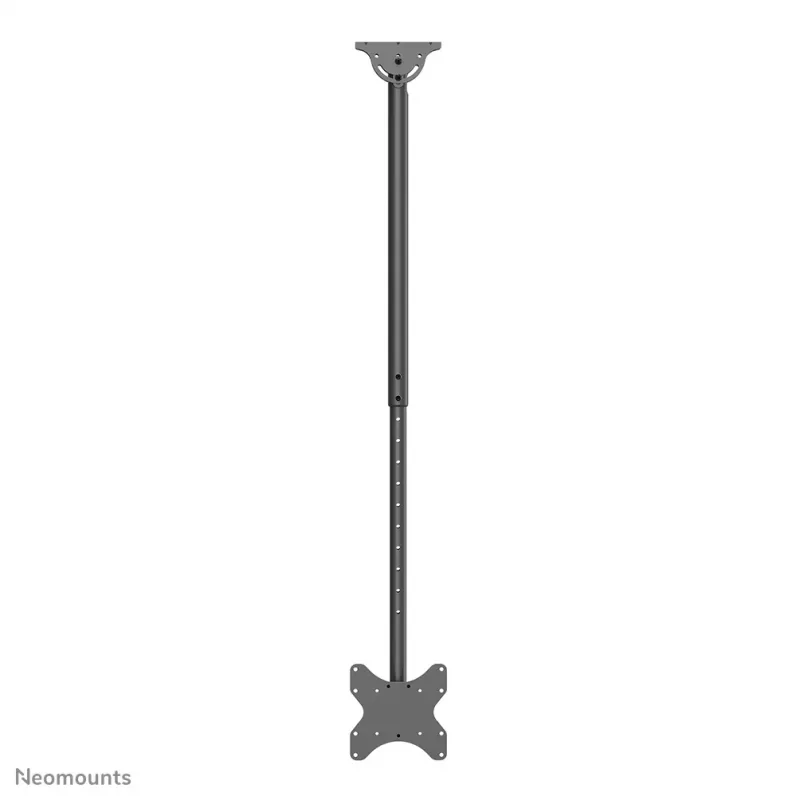

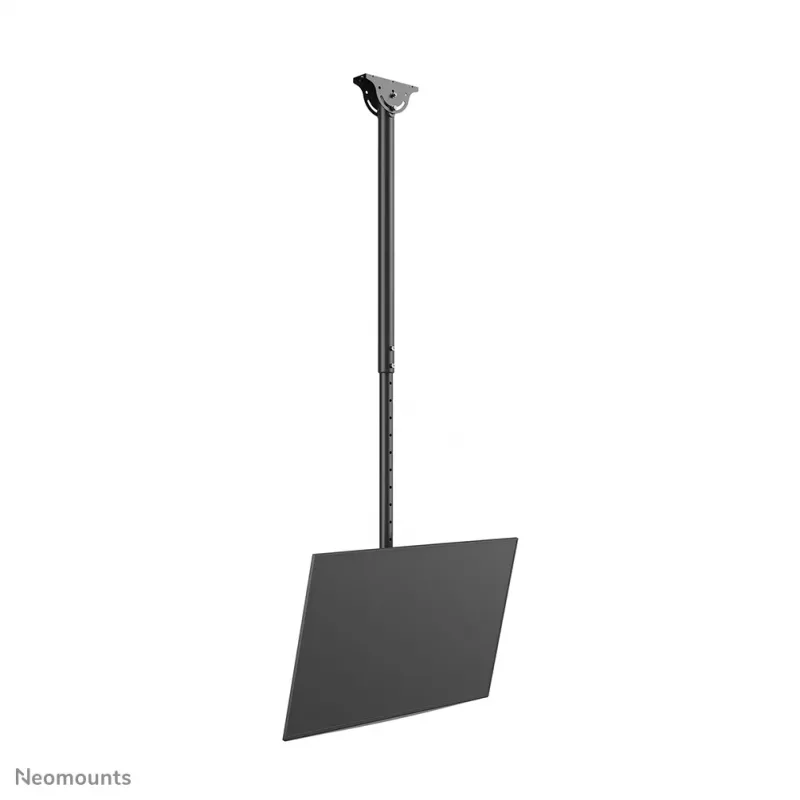

The Neomounts CL35-340BL12 is a full motion ceiling mount for flat screens up to 42". It supports VESA hole patterns from 100x100 to 200x200 mm, has a load capacity of 50 kg, and features adjustable tilt and swivel to set the optimal viewing angle. The mount includes level adjustment, integrated cable management from ceiling to screen, an adjustable mounting angle for sloped ceilings, and an extra cover for installation on suspended ceilings. Height is adjustable from 106 to 156 cm using the included pole; an optional Neomounts NS-EP100BLACK extension pole can add 107.5 cm.

Advantages

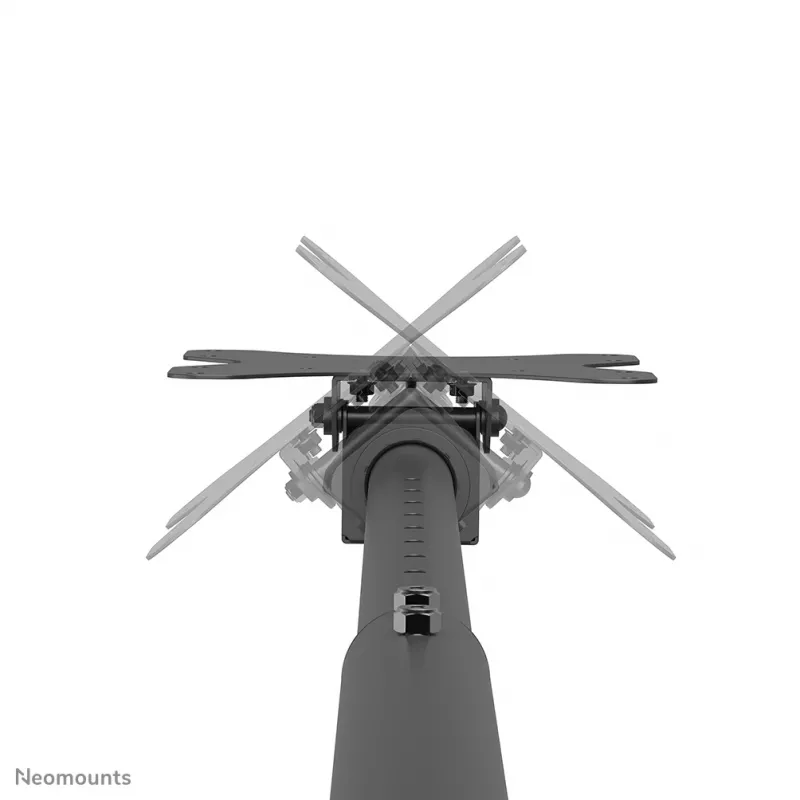

The CL35-340BL12 provides flexible positioning with 25° tilt and 360° swivel, enabling precise orientation for different viewing situations. Built-in level adjustment simplifies accurate installation. Cable management keeps cables hidden and organized. The mount accommodates sloped and suspended ceilings thanks to its adjustable mounting angle and supplied cover. A high 50 kg weight capacity ensures compatibility with a wide range of 42" screens that meet the supported VESA patterns.

Key specifications

• Model: Neomounts CL35-340BL12
• Screen size compatibility: up to 42"

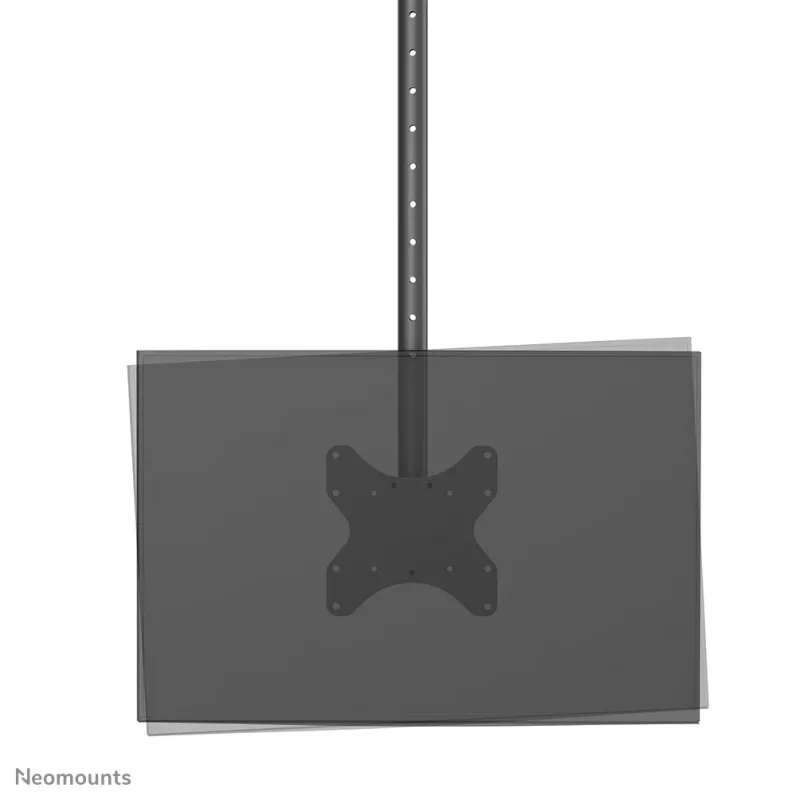

• VESA: 100x100 to 200x200 mm
• Maximum load: 50 kg

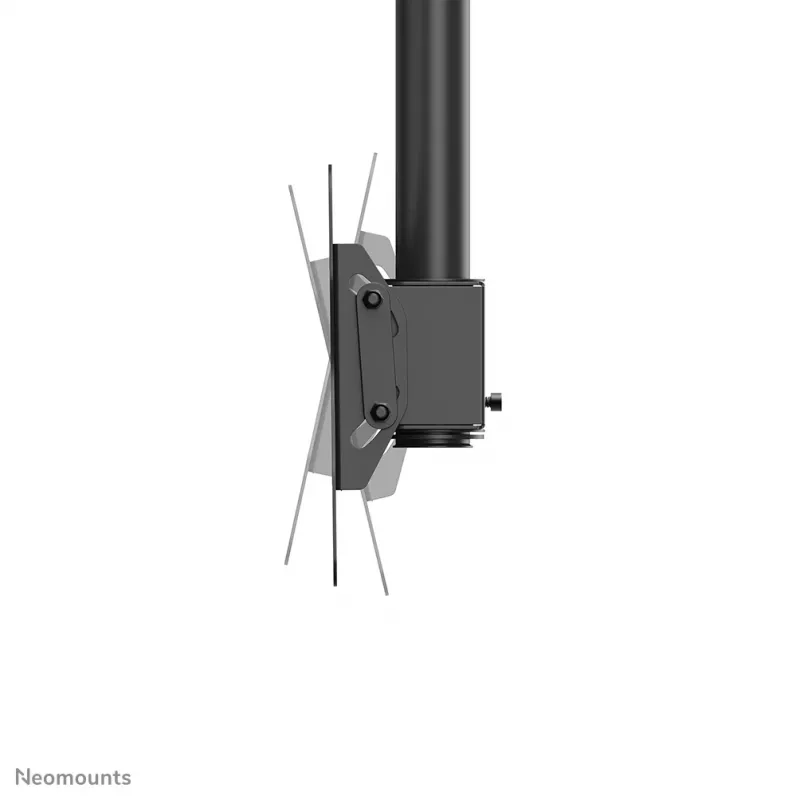

• Tilt: 25°
• Swivel: 360°

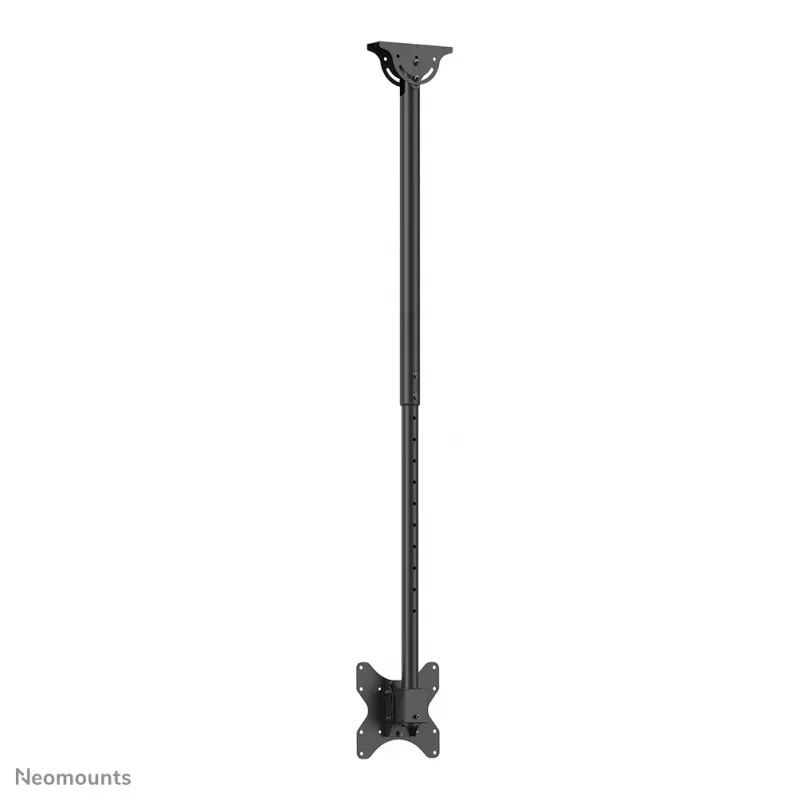

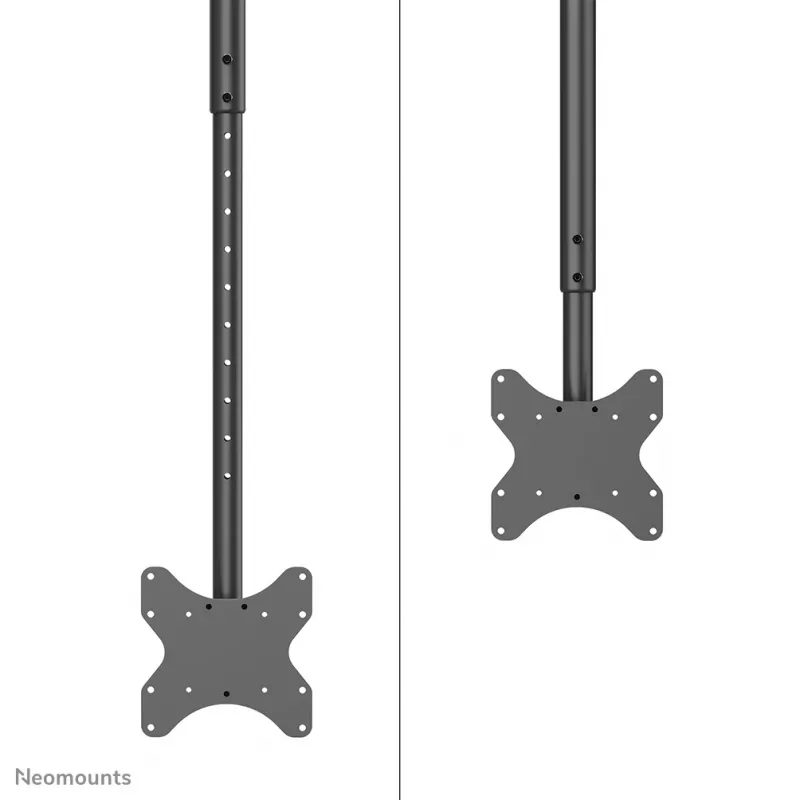

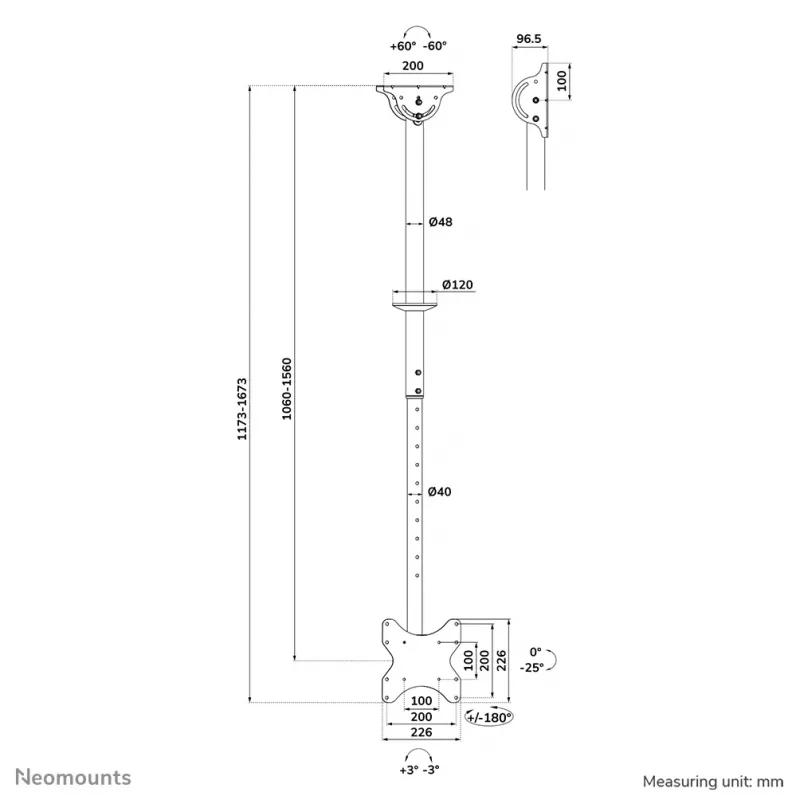

• Height adjustment: 106–156 cm (with included pole)

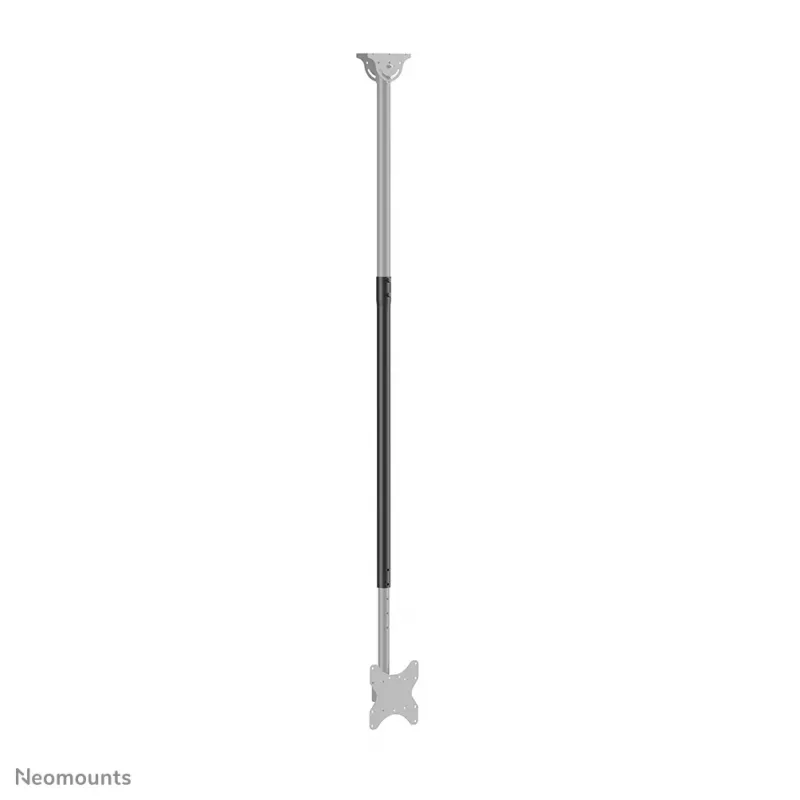

• Optional extension: NS-EP100BLACK adds 107.5 cm

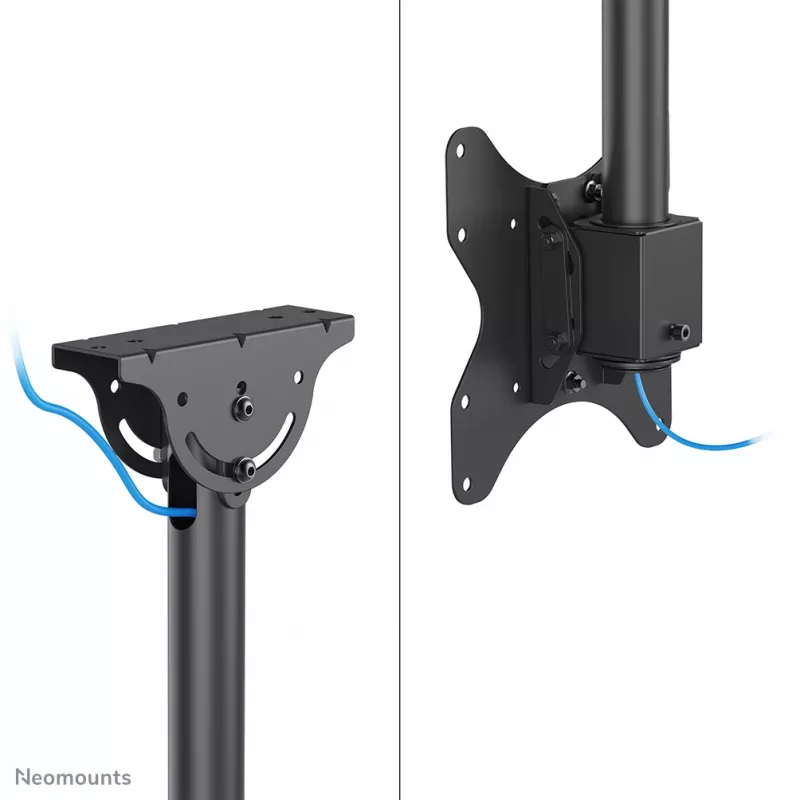

• Cable management: integrated

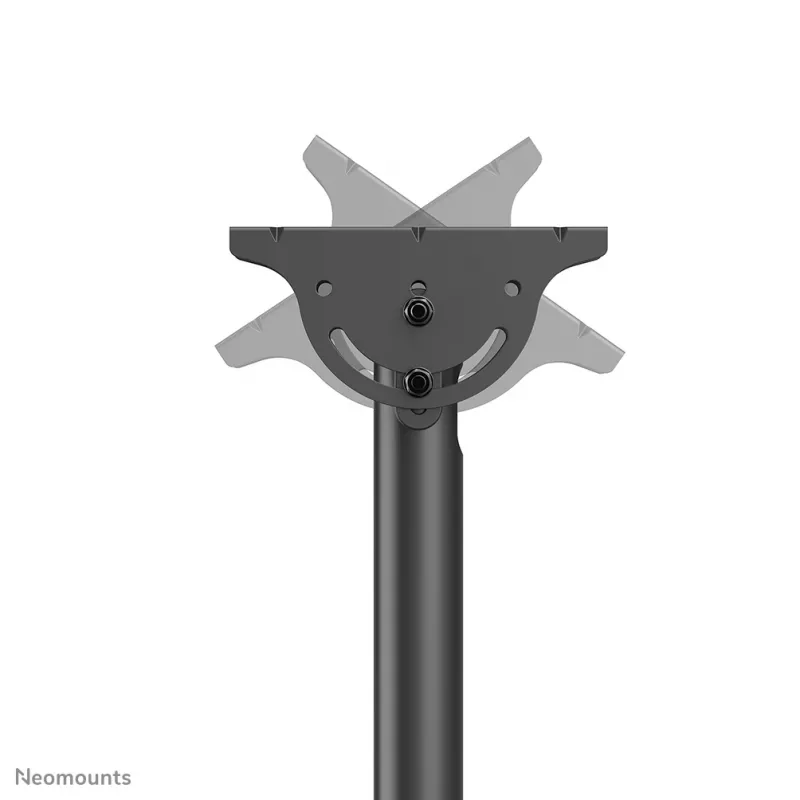

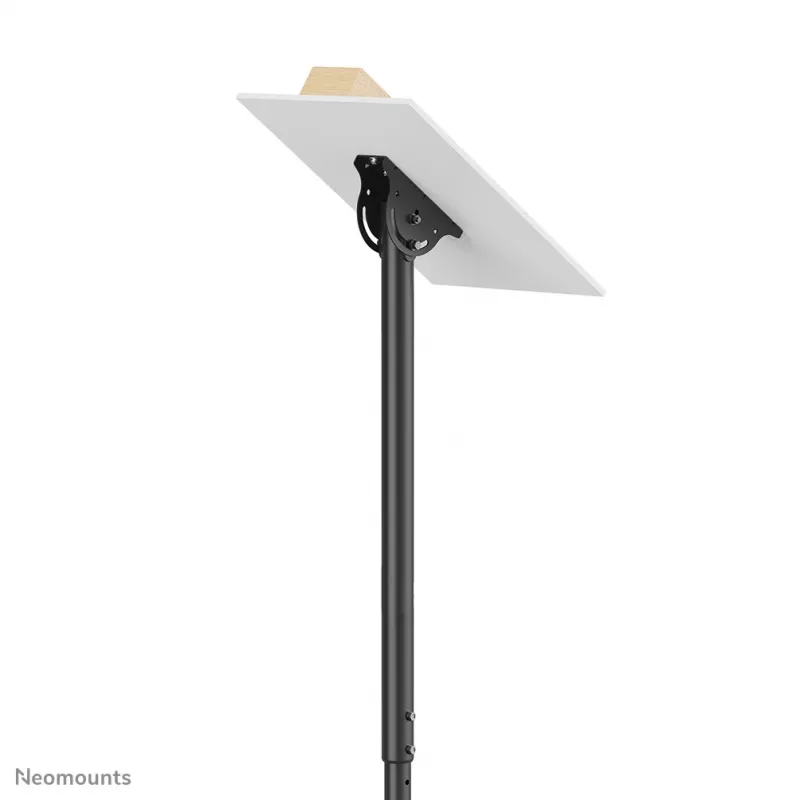

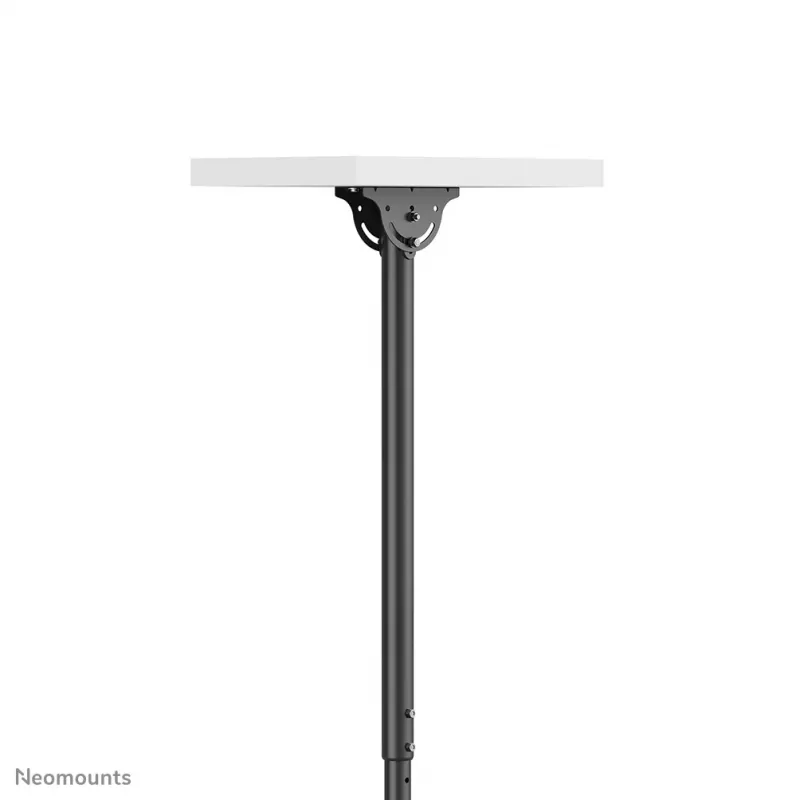

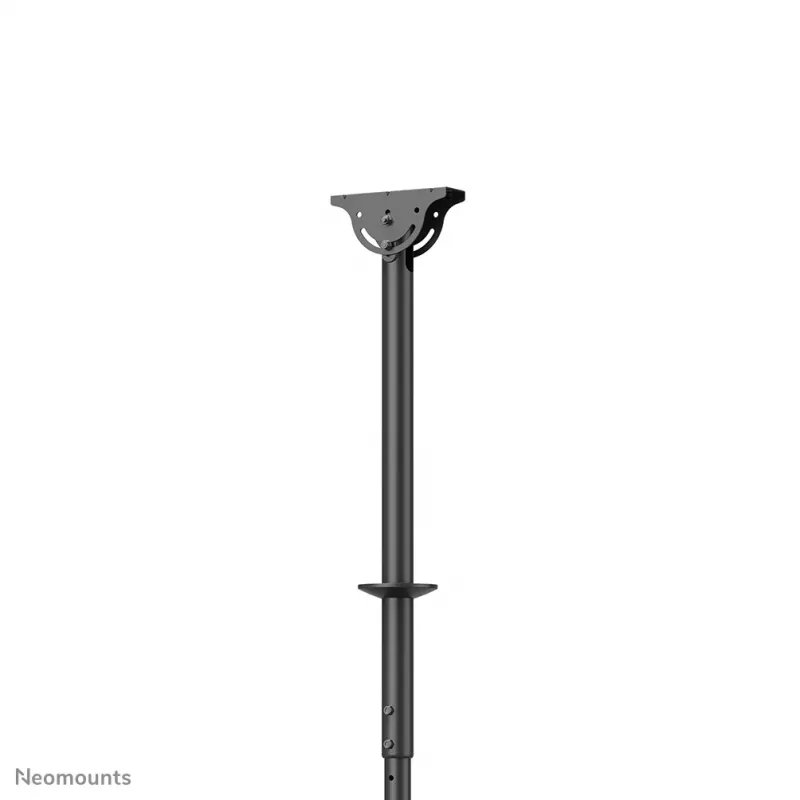

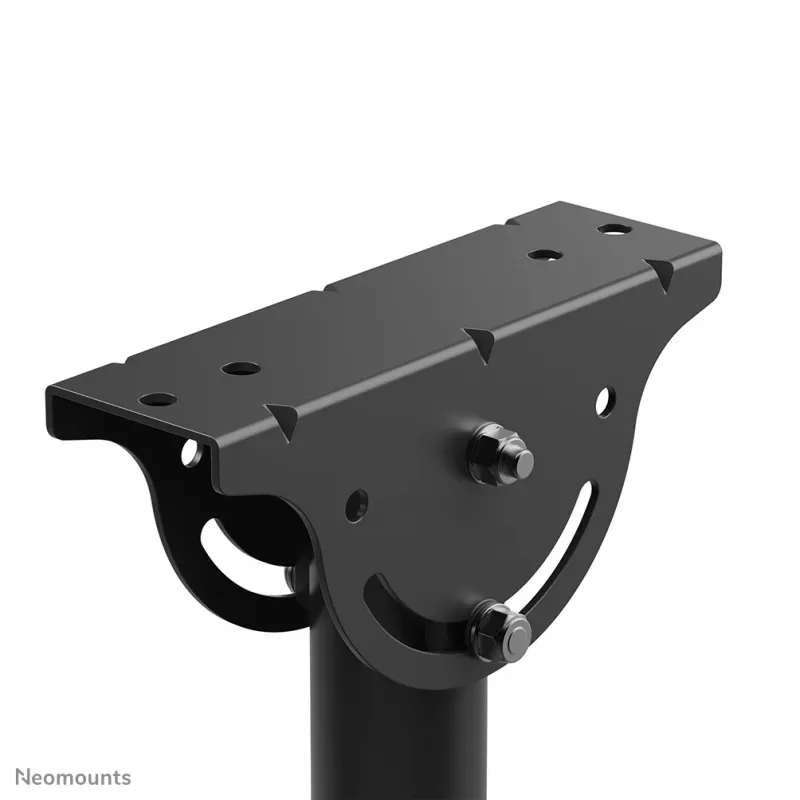

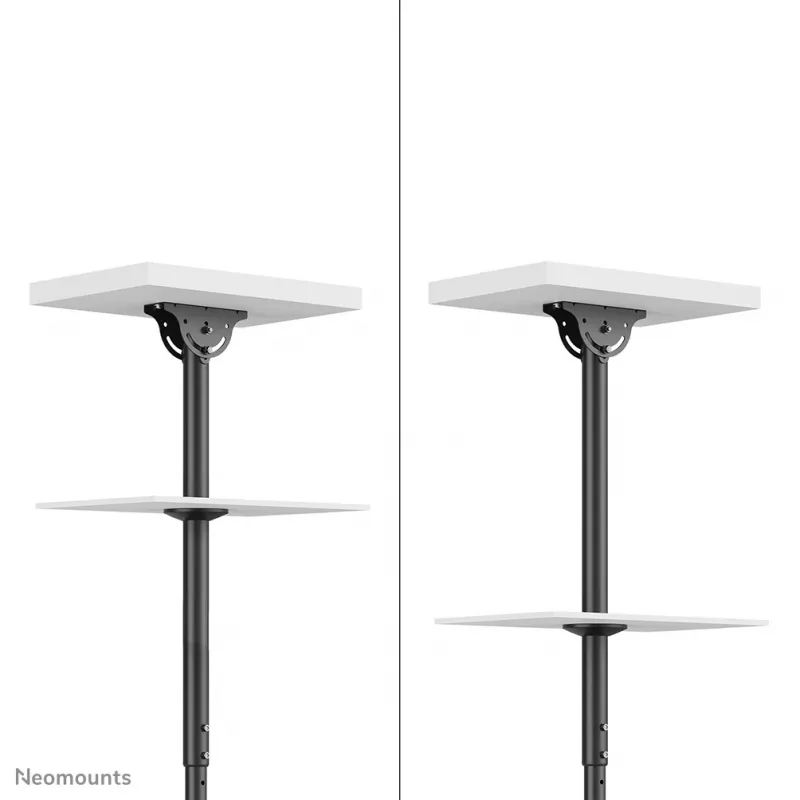

• Special features: adjustable mounting angle for sloped ceilings, cover for suspended ceilings

How to use

Select a ceiling location capable of supporting the mount and screen weight. Attach the mount to the ceiling following the provided instructions and ensure the level adjustment is used to align the screen. Mount the display using the matching VESA holes (100x100 to 200x200 mm) and secure it according to the screen manufacturer’s guidance. Adjust tilt (up to 25°) and swivel (360°) to achieve the desired viewing angle. Route cables through the integrated cable management channel. If extra height is needed, fit the optional NS-EP100BLACK extension pole to increase the height by 107.5 cm.

Recommendations

Verify ceiling structure and anchor type before installation; use appropriate fixings for material and load. Confirm the screen’s VESA pattern and weight do not exceed the mount’s specifications. For suspended ceilings, use the supplied cover and follow mounting instructions carefully. If unsure, consult a professional installer.
