Soporte de techo Neomounts FPMA-HAC100HC capacidad máxima 12 kg tamaño de pantalla 10 a 32 pulgadas

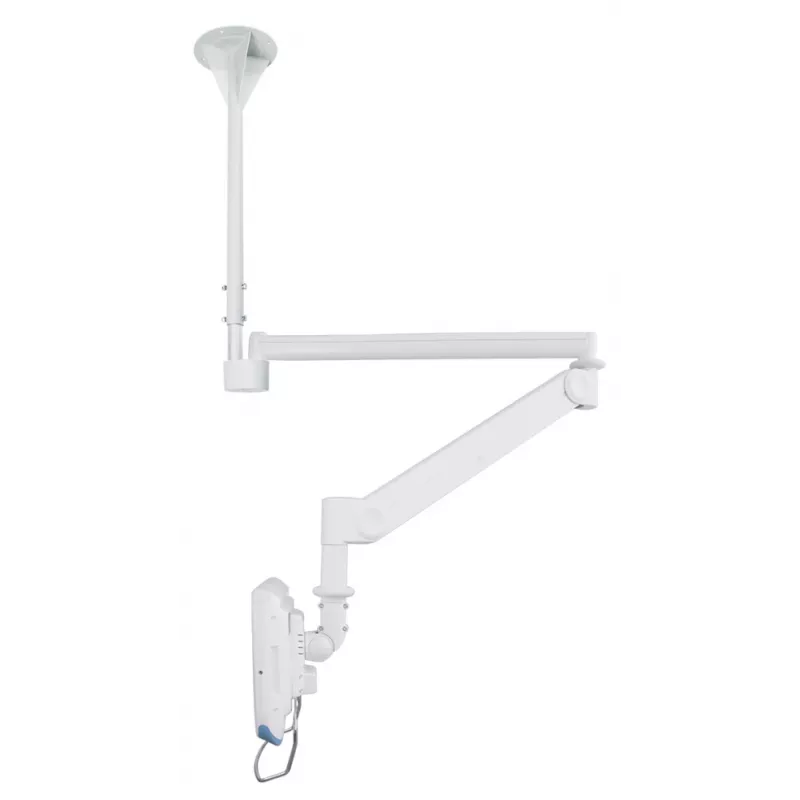

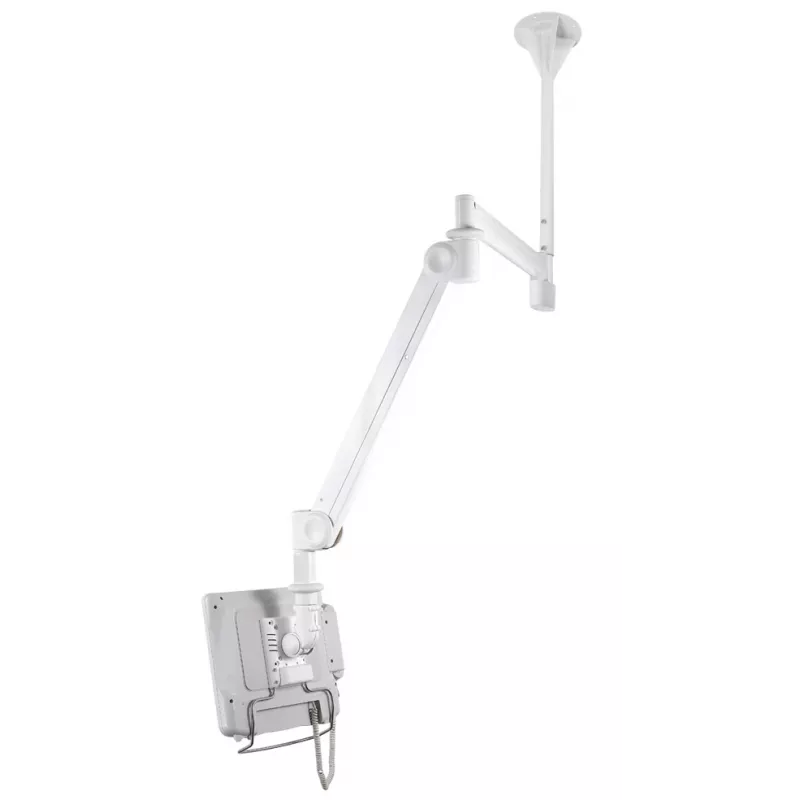

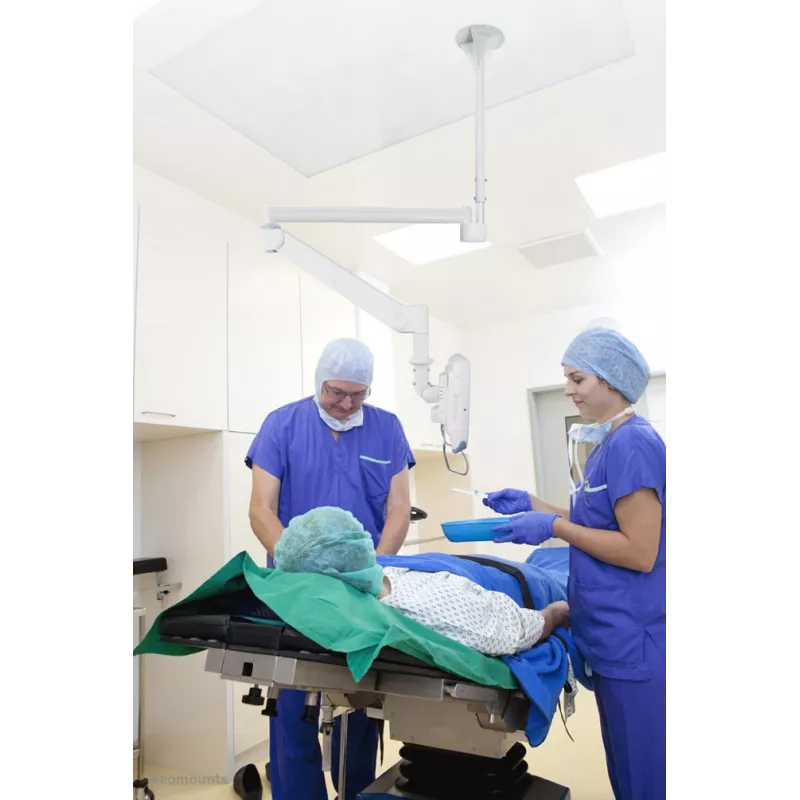

The Neomounts FPMA-HAC100HC ceiling mount is a tilt-and-swivel solution for medical flat screens from 10 to 32 inches, supporting a maximum load of 12 kg. Designed for situations where wall or floor placement is not possible, the mount offers height and depth adjustment and integrated cable management to keep the installation compact and orderly.

Advantages

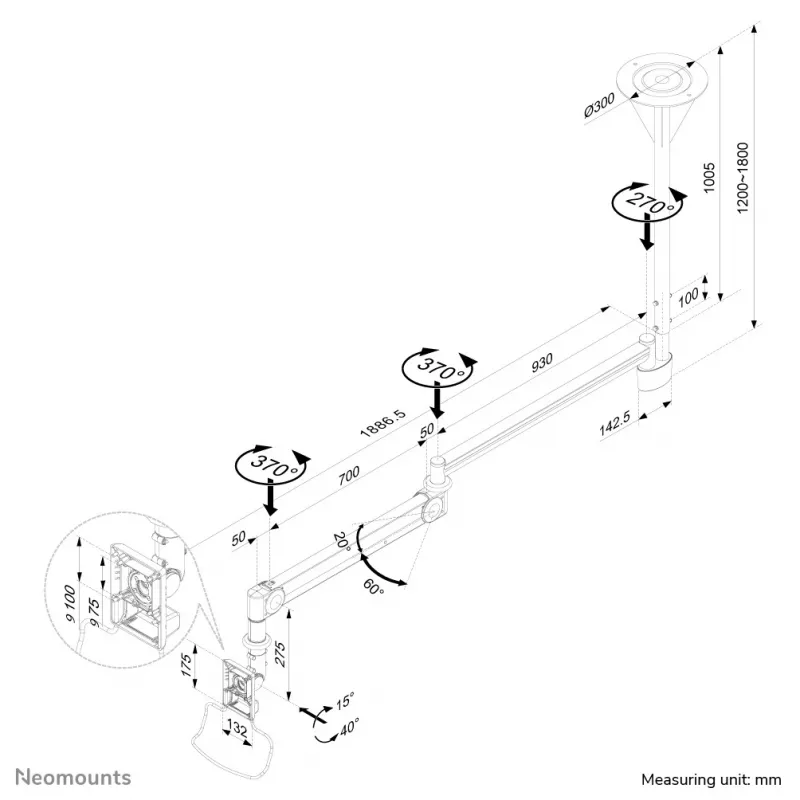

The mount provides a wide tilt range up to 55° and swivel capability to adjust viewing angle, plus a gas-spring mechanism for smooth height adjustment from 0 to 170 cm. Depth adjustment up to 170 cm and an internal cable routing system conceal cables between the ceiling bracket and the screen. It supports VESA patterns 75x75 and 100x100 mm and includes all necessary installation hardware.

Suitable for

Key specifications

How to use

Install the ceiling plate using the included mounting hardware, attach the VESA bracket to the display (use adapter plates if needed for other hole patterns), and hang the display on the mount. Use the gas-spring height adjustment to set the display to the desired height and adjust tilt and swivel to achieve the required viewing angle. Route cables through the integrated cable management channel to keep them concealed and secure before final tightening.

Recommendations

Verify the display weight and VESA pattern before installation. Ensure the ceiling structure can support the combined weight of the mount and screen and follow local installation regulations. For non-standard VESA patterns, use Neomounts adapter plates. Regularly check fasteners and cable routing for wear or loosening.
