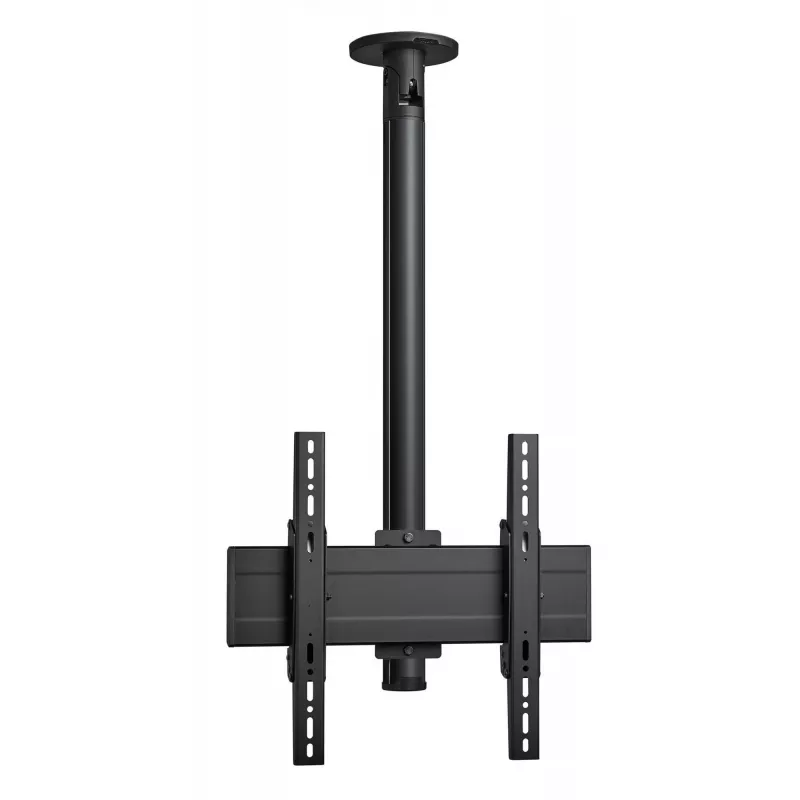

Soporte de techo Vogel's CT 240844B giratorio e inclinable de mástil individual para 80 kg, VESA 400x400

Vogel's CT 240844B turn-tilt single-pole ceiling bracket is a ceiling-mounted solution for displays with VESA 400x400 pattern. Designed to support displays up to 80 kg, this bracket secures screens overhead while offering controlled pan and tilt adjustments to set the correct viewing angle. The single central pole design reduces ceiling footprint and provides a stable mounting point for conference room, classroom or public-space installations.

Advantages

The bracket supports a high load capacity while keeping a compact and unobtrusive profile thanks to its single-pole ceiling attachment. Adjustable turn and tilt mechanisms allow precise positioning of the display without requiring additional structural elements. Constructed for fixed overhead use, it simplifies cable routing along the pole and maintains a neat installation. The VESA 400x400 compatibility ensures broad device support among medium to large displays that meet this mounting standard.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Reception areas and lobbies
• Retail and public information displays
• AV installations where ceiling mounting is preferred to wall mounting

Key specifications

• Mount type: ceiling-mounted turn-and-tilt single pole
• VESA compatibility: 400 x 400 mm
• Maximum supported display weight: 80 kg
• Adjustment: pan (turn) and tilt mechanisms for viewing-angle optimization
• Design: single central pole for compact ceiling footprint and integrated cable routing
• Intended use: fixed overhead installations in commercial and educational environments

How to use

Install the ceiling bracket according to the mounting instructions and local building regulations, ensuring the ceiling structure can support the specified maximum weight. Attach the bracket’s pole to a suitable ceiling anchor point, then secure the VESA plate to the display using compatible screws and washers. Lift and secure the display onto the bracket, verify the locking mechanisms, and adjust pan and tilt to achieve the desired viewing angle. Route cables neatly along the pole or through provided channels to maintain a tidy appearance.

Recommendations

Verify ceiling load-bearing capacity before installation and use appropriate anchors for the ceiling material. For heavy displays near the maximum supported weight, perform the installation with two trained installers to ensure safety. Periodically check fasteners and adjustment points to confirm they remain secure and free of excessive wear.
