Soporte de TV Deltaco ARM-0256 139,7 cm (55 pulgadas) negro

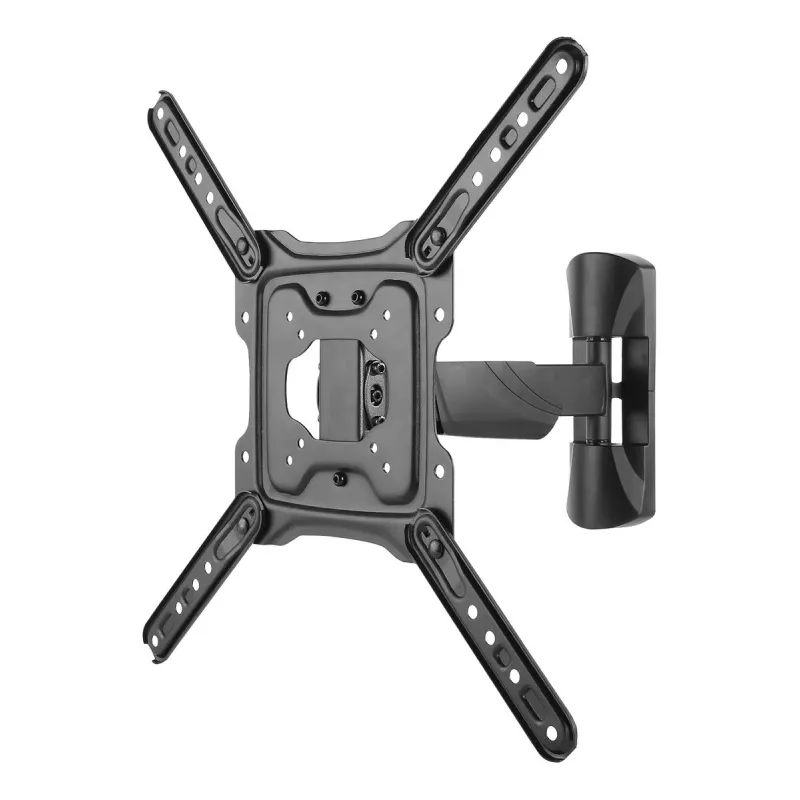

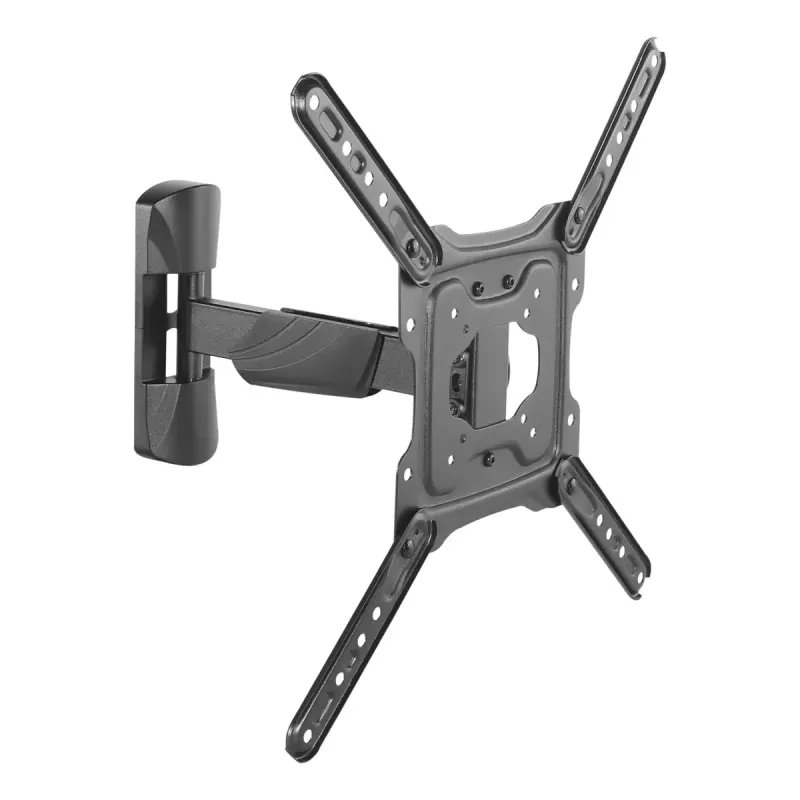

ARM-0256 is a full-motion wall mount designed for most 23"–55" flat panel TVs with a maximum weight of 35 kg. It supports VESA patterns up to 400 x 400 mm and provides integrated cable management, decorative covers and pre-assembled parts for faster installation. The mount allows precise level adjustment to ensure the screen is straight after mounting.

Advantages

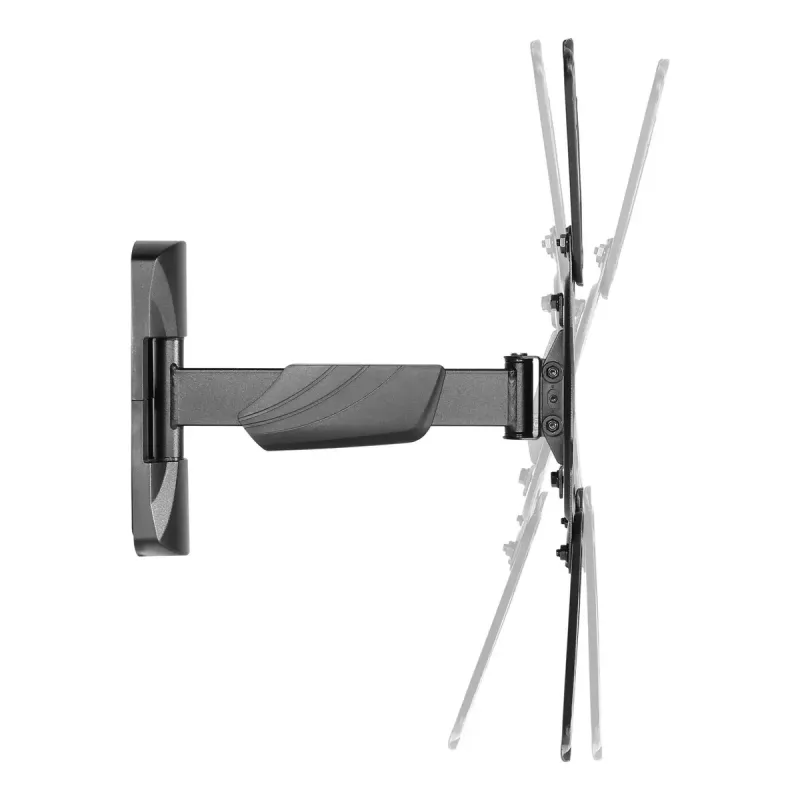

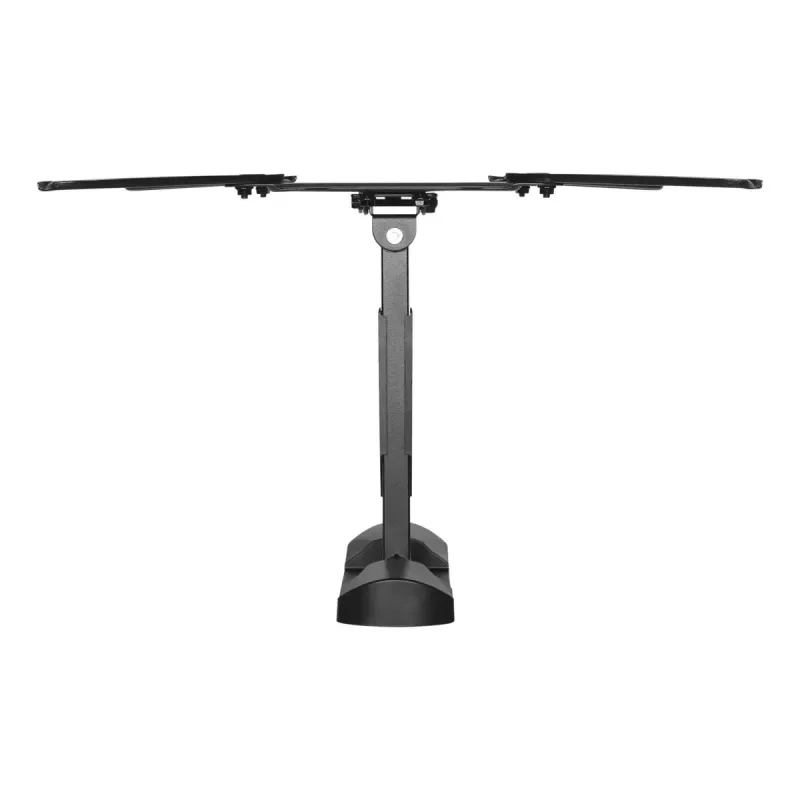

The Deltaco ARM-0256 offers a wide range of motion with up to 305 mm extension, swivel up to 90° left or right and a tilt range of -15° to +5°. It is pre-assembled to reduce installation time and includes cable routing and decorative covers for a neat appearance. Built-in fine level adjustment enables up to 3° clockwise and counterclockwise correction to achieve perfect alignment.

Suitable for

• Mounting 23"–55" flat panel TVs
• Rooms where adjustable viewing angle is required (living rooms, bedrooms, kitchens)
• Setups requiring concealed cable routing and a clean finish

Key specifications

• Maximum screen size: 55" (139.7 cm)
• Maximum weight capacity: 35 kg (77 lbs)
• VESA compatibility: up to 400 x 400 mm (supports 75 x 75 to 400 x 400)
• Tilt range: -15° to +5°
• Swivel range: up to ±90°
• Maximum extension: 305 mm
• Colour: Black

How to use

Attach the wall bracket to a suitable load-bearing surface following the supplied template and using appropriate fixings for your wall type. Mount the TV plate to the television using the compatible VESA holes, then hang the TV on the wall bracket. Adjust extension, swivel and tilt to the desired viewing angle. Use the integrated cable management channels and decorative covers to route and conceal cables. Finally, use the built-in level adjustment to correct up to 3° clockwise or counterclockwise so the screen sits perfectly straight.

Recommendations

Ensure the wall and fixings can support the combined weight of the mount and TV (maximum 35 kg). Confirm the TV's VESA pattern is within the supported range (up to 400 x 400 mm) before installation. For masonry, timber stud or other wall types, use suitable anchors and fasteners and follow local building codes. If unsure, consult a professional installer.
