Soporte Hikvision DS-1271ZJ-140

The Mount Hikvision DS-1271ZJ-140 is a universal wall mount designed for security camera installations. It is constructed from durable materials, finished in white, and provides a stable, discreet support for cameras up to a specified maximum load. With a height of 565 mm, depth of 150 mm and a lightweight body of 1.9 kg, this mount is intended for fixed-position indoor or sheltered outdoor installations where a clean appearance and reliable hold are required.

Advantages

The DS-1271ZJ-140 offers a balance of strength and low weight, making it easier to handle during installation while providing a stable platform for camera systems. Its white finish enables a neutral visual integration with most facades and interiors. The mount’s dimensions provide adequate clearance and positioning options for many dome and bullet cameras, while the specified maximum load capacity ensures safe operation when the combined weight of camera and accessories does not exceed limits.

Suitable for

• Wall-mounted CCTV cameras in residential and commercial buildings
• Indoor camera installations in halls, corridors and offices
• Sheltered outdoor camera installations such as under eaves or canopies
• Replacing or upgrading existing mounts for compatible camera sizes

Key specifications

• Material: durable metal/plastic composite construction for stability
• Finish: white
• Maximum load capacity: 4.5 kg

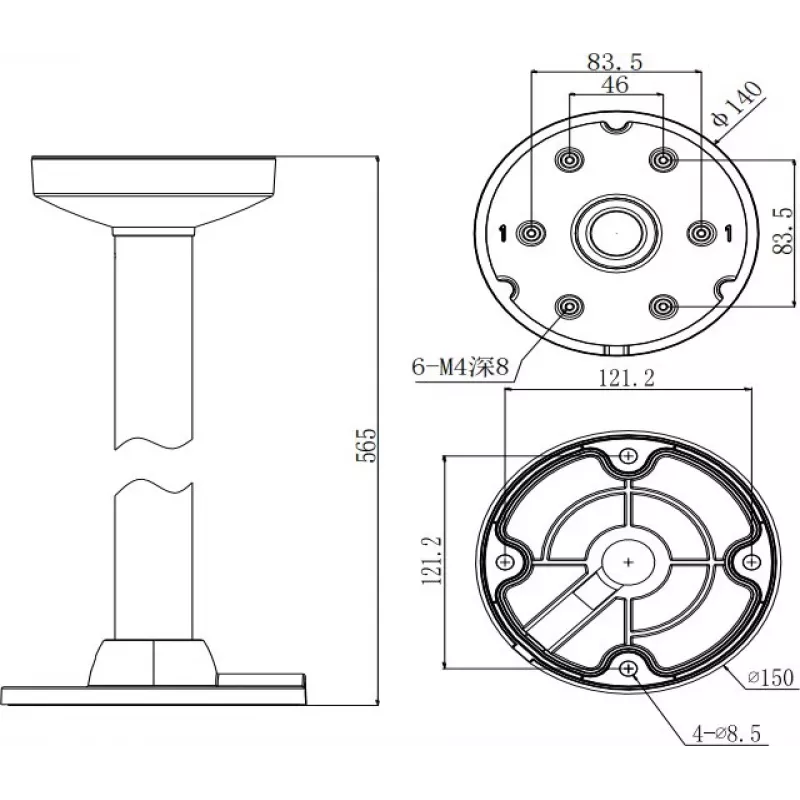

• Height: 565 mm
• Depth: 150 mm
• Weight: 1.9 kg
• Mount type: wall bracket suitable for fixed camera positioning

How to use

Install the bracket on a flat, stable wall surface capable of supporting at least three times the total weight of the camera and mount. Mark the fixing points, drill appropriate holes, and secure the mount with suitable anchors and fasteners for the wall material. Attach the camera to the mount according to the camera manufacturer’s instructions, ensure all fastenings are tightened, and verify the camera orientation and focus. Confirm that the combined weight of camera and accessories does not exceed the mount’s maximum load capacity of 4.5 kg.

Recommendations

Use corrosion-resistant anchors in exposed or humid environments and check fixing integrity periodically. When installing outdoors, position the mount under eaves or other protection to reduce direct exposure to weather. Always follow the camera manufacturer’s mounting guidance and verify that the wall substrate can support over three times the combined weight of the camera and mount before final installation.
