Soporte Multibrackets M VESA Super Slim Tilt & Turn Plus HD

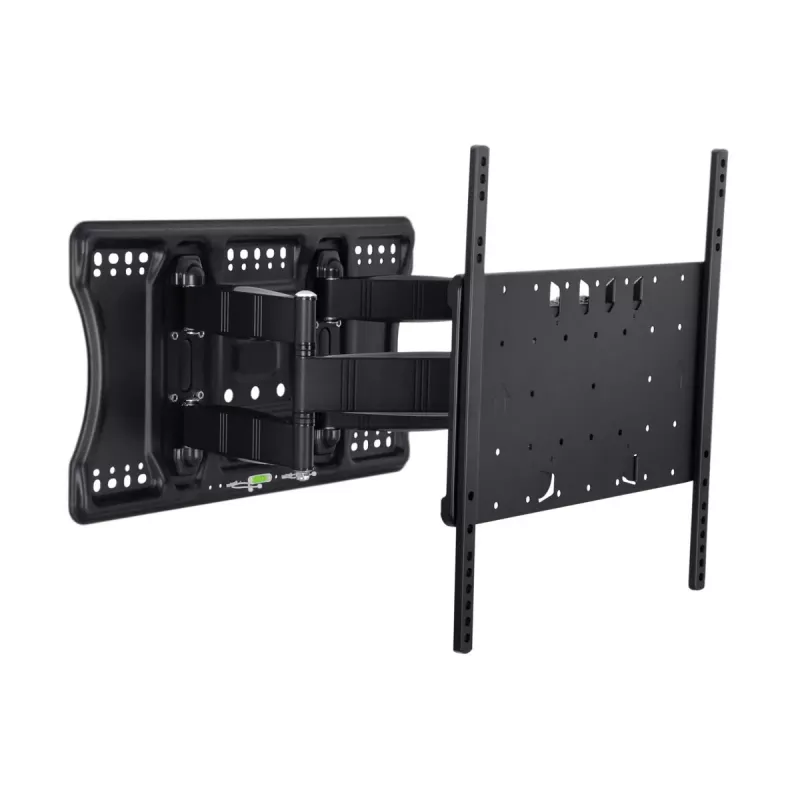

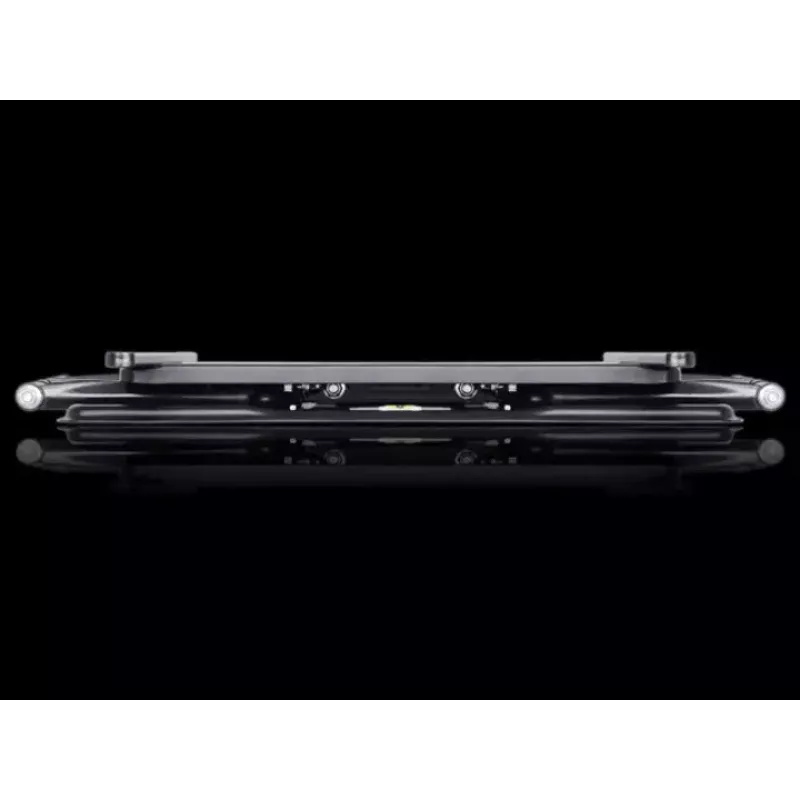

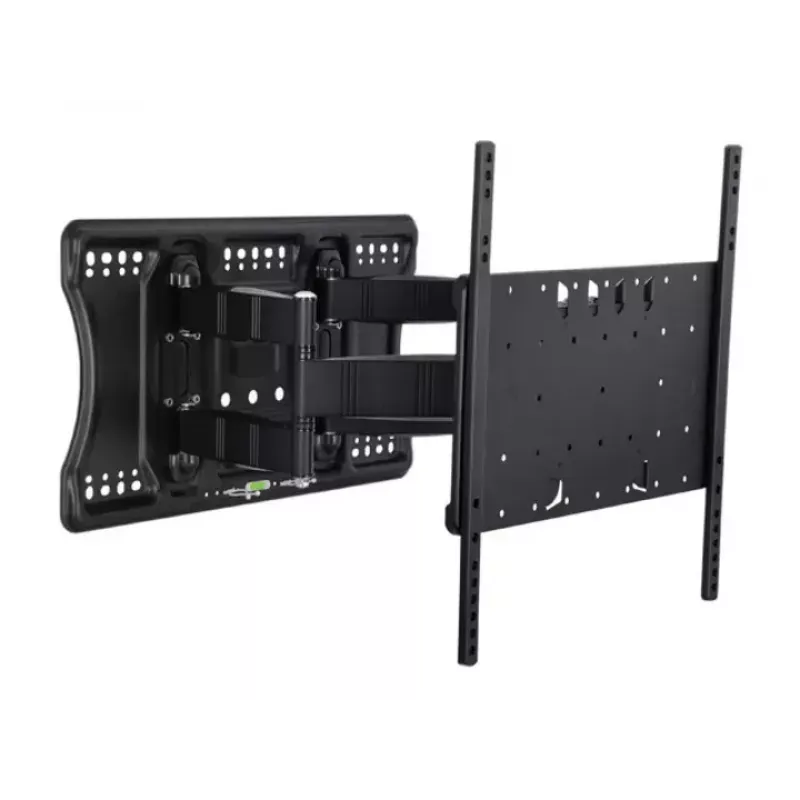

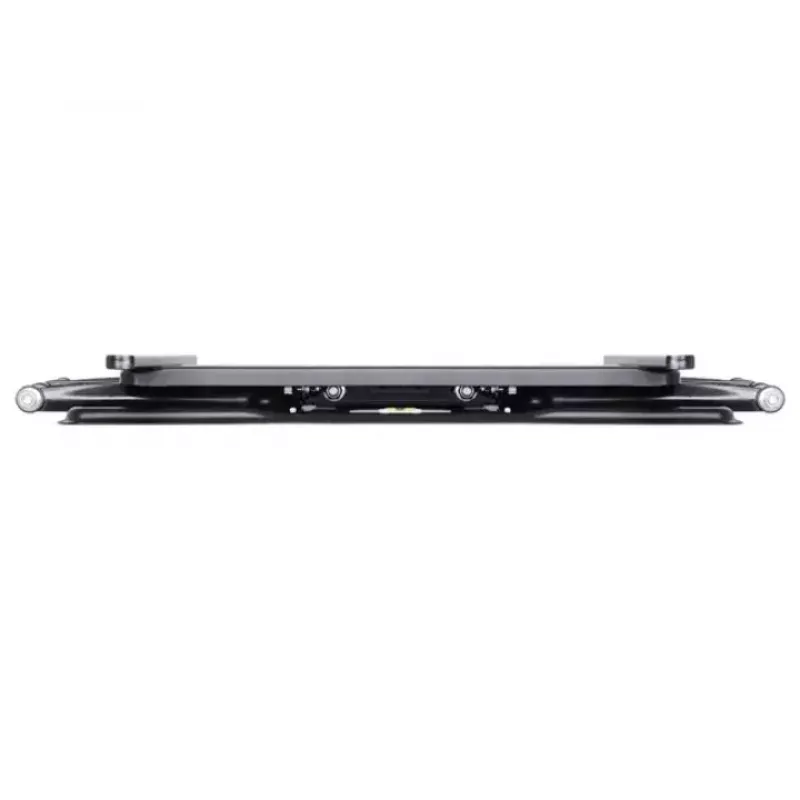

The Multibrackets M VESA Super Slim Tilt & Turn Plus HD is a low-profile wall mounting bracket for flat-panel displays from 40" up to 85" with a maximum load of 65 kg. Its slim, discreet design provides a near-invisible installation while retaining tilt and turn functionality and support for common VESA patterns up to 400 x 400 mm. The bracket is part of the Super Slim Series and is finished in black for a modern, unobtrusive look.

Advantages

The mount combines a very slim profile with built-in flexibility, allowing easy adjustment of the screen for an optimal viewing angle. It supports multiple VESA standards (100/200/300/400 mm) and can be expanded with an optional VESA extender kit for 600 x 400 mm, making it compatible with most displays. The product is designed to hold up to 65 kg while remaining compact and discreet on the wall.

Suitable for

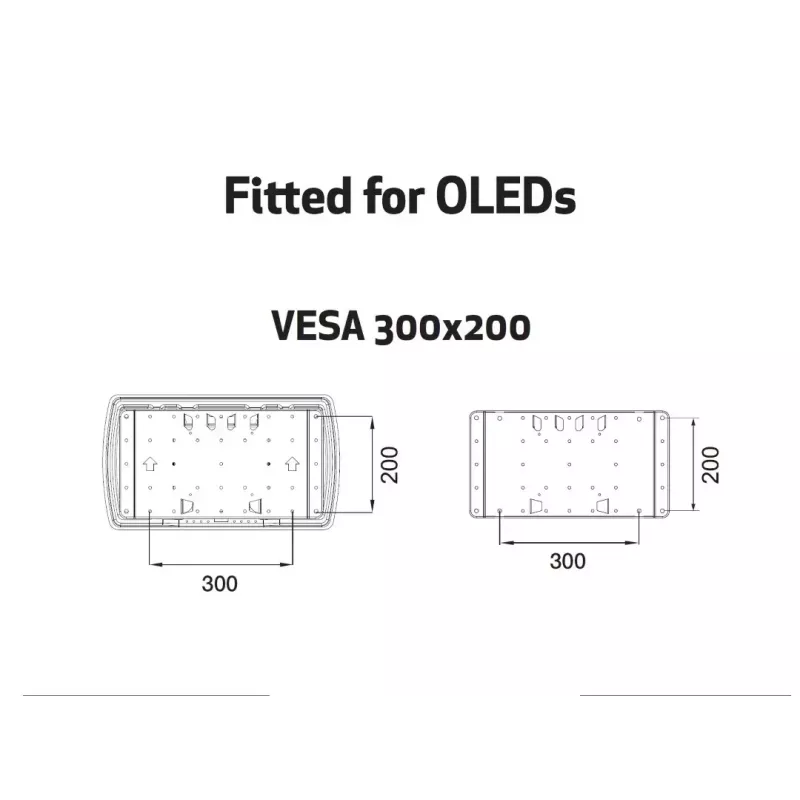

• Wall mounting 40"–85" LED and OLED flat-panel TVs and professional displays

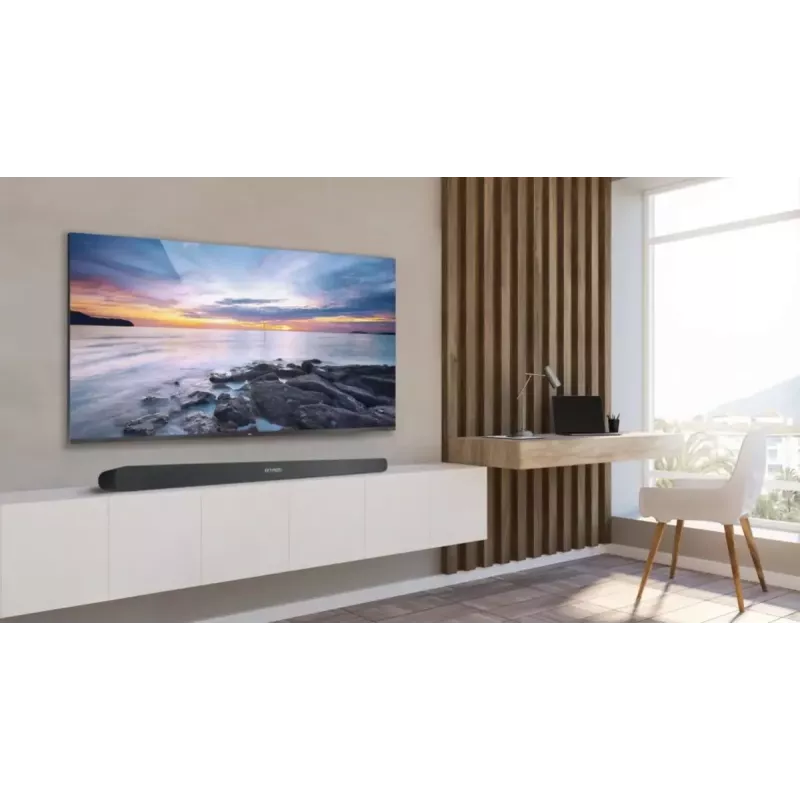

• Applications where a slim, low-profile installation is required (living rooms, meeting rooms, public spaces)
• Setups requiring VESA 100–400 mm compatibility (with optional extender for 600x400 mm)

Key specifications

• Maximum screen size: 85"
• Maximum weight capacity: 65 kg

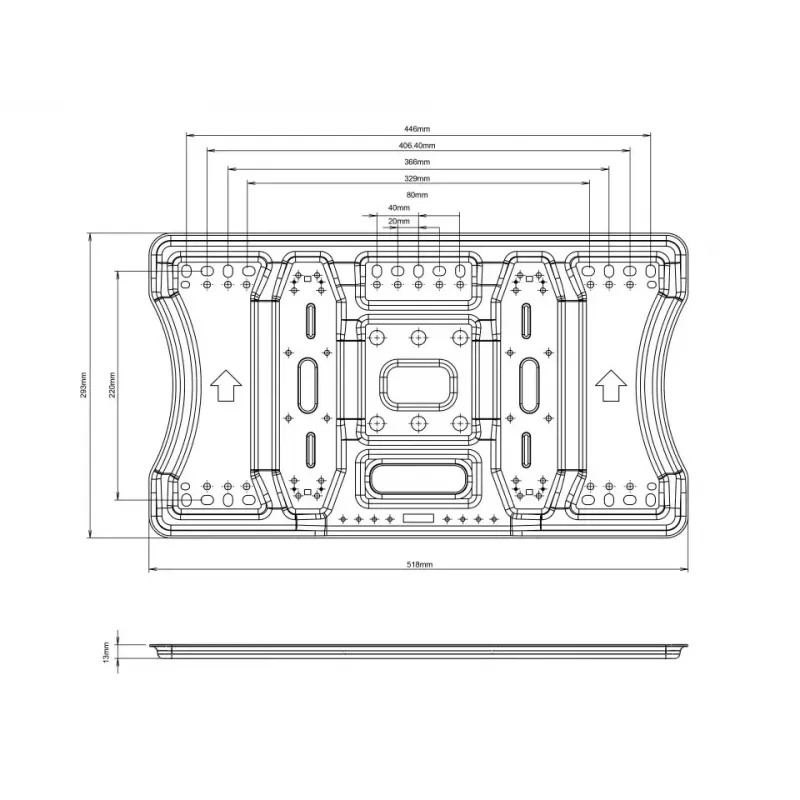

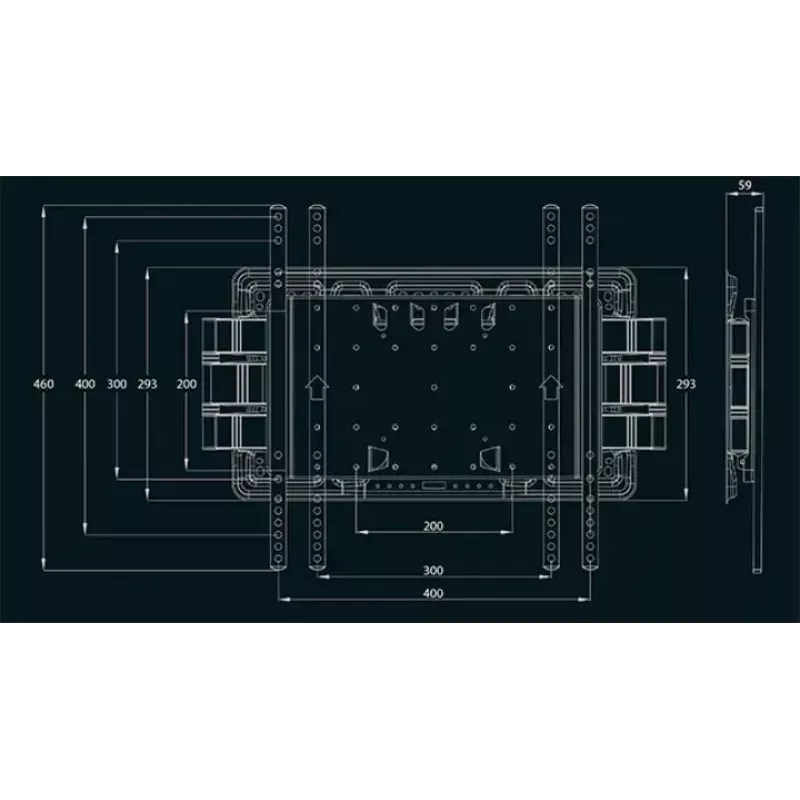

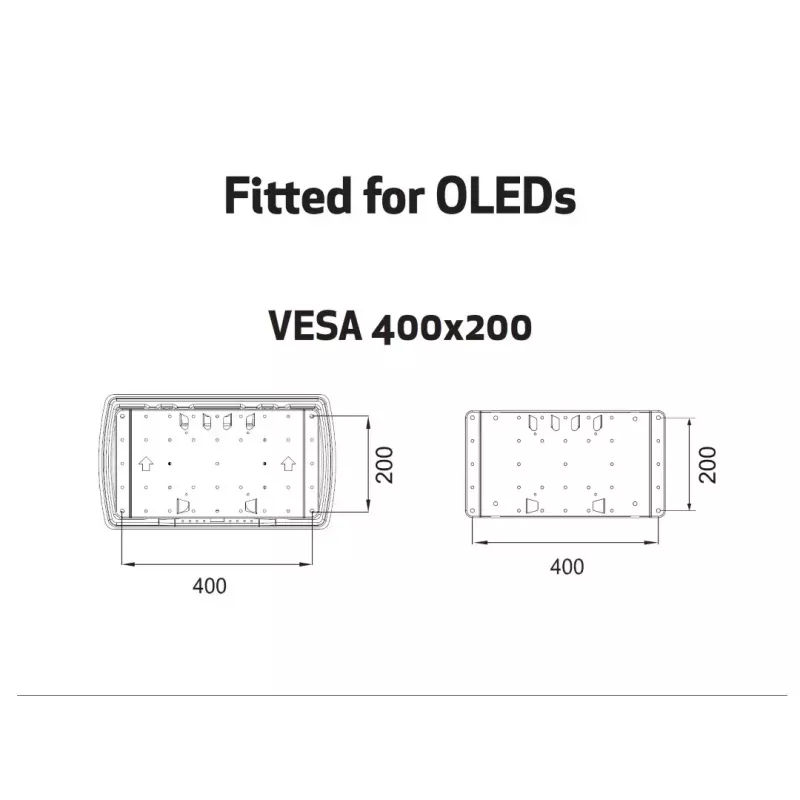

• Supported VESA: 100 x 100, 200 x 200, 300 x 300, 400 x 400 mm (optional extender for 600 x 400 mm)

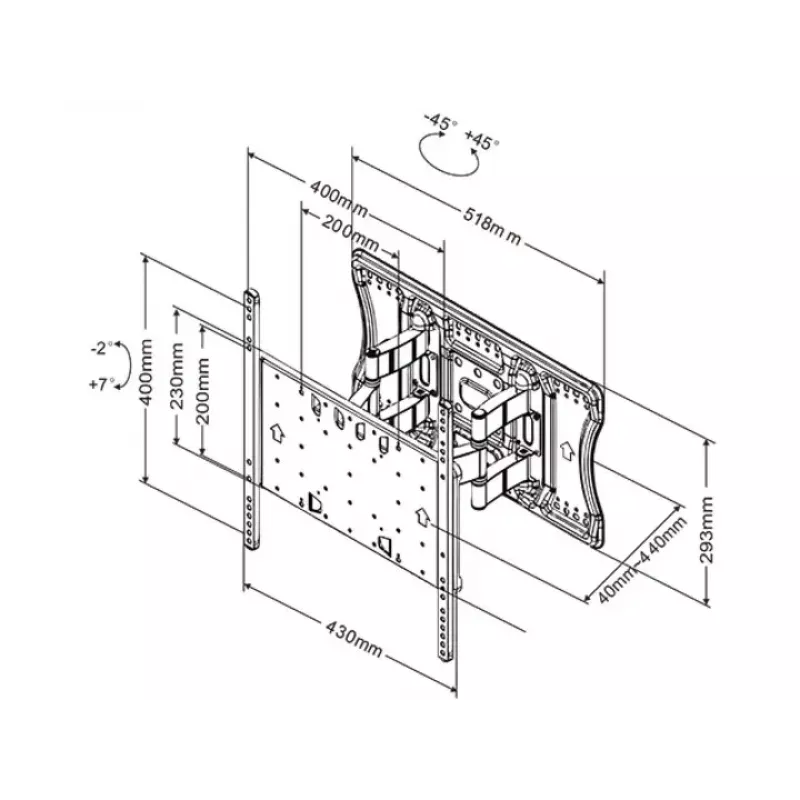

• Tilt angle range: 0° to 7°
• Number of displays supported: 1
• Product colour: Black
• Product weight: 10 kg

How to use

Secure the bracket to a suitable load-bearing wall following the included installation instructions and ensuring proper anchoring for the combined weight of the mount and display. Attach the display to the bracket using the appropriate VESA holes and fasteners. Adjust tilt and turn as needed to obtain the desired viewing angle, then tighten adjustment points to secure the display in position. If your display uses a 600 x 400 mm VESA pattern, fit the optional VESA extender kit before mounting.

Recommendations

Verify wall construction and use suitable fixings for your wall type; professional installation is recommended for heavy displays or uncertain wall conditions. Do not exceed the 65 kg maximum load and confirm VESA compatibility before mounting.
