Soporte para esquemas eléctricos Digitus DN-97679 gris plástico 263x30x233mm

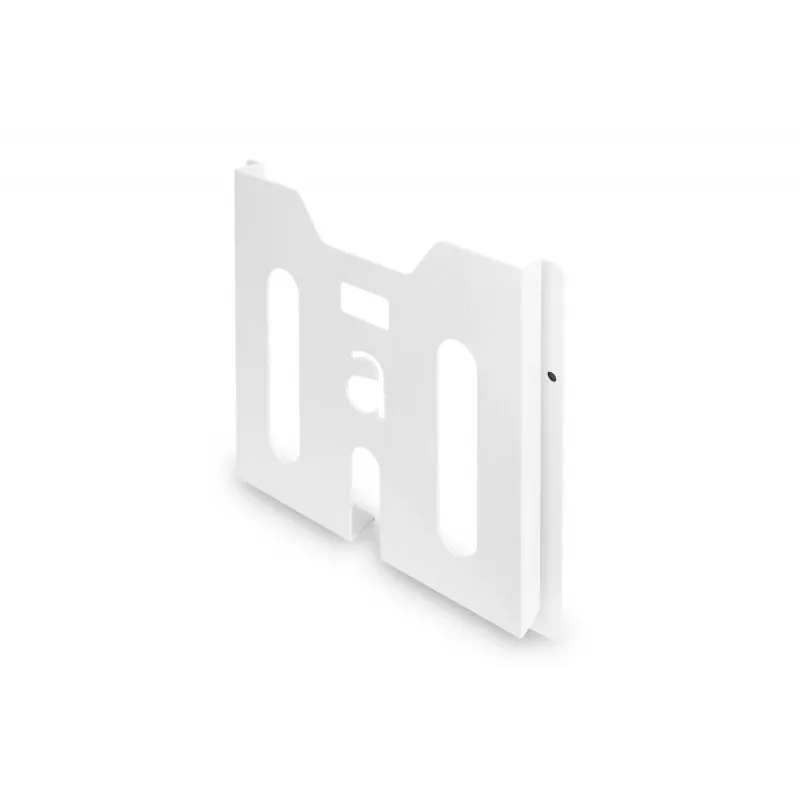

Keep essential circuit diagrams and wiring plans right where they're needed with the DIGITUS DN-97679 Circuit Diagram Holder. Unlike loose document sleeves or improvised clips, this holder is purpose-built for server and network cabinets, providing a slim, dust-protective pocket that keeps DIN A4 documents visible and accessible at the point of use. Its compact footprint of 263 x 30 x 233 mm mounts neatly on cabinet doors or side panels without wasting valuable rack space.

Highlights

• Secure storage for DIN A4 circuit diagrams, wiring plans, and technical documents
• Robust grey plastic housing (RAL 7035) protects against dust and accidental damage

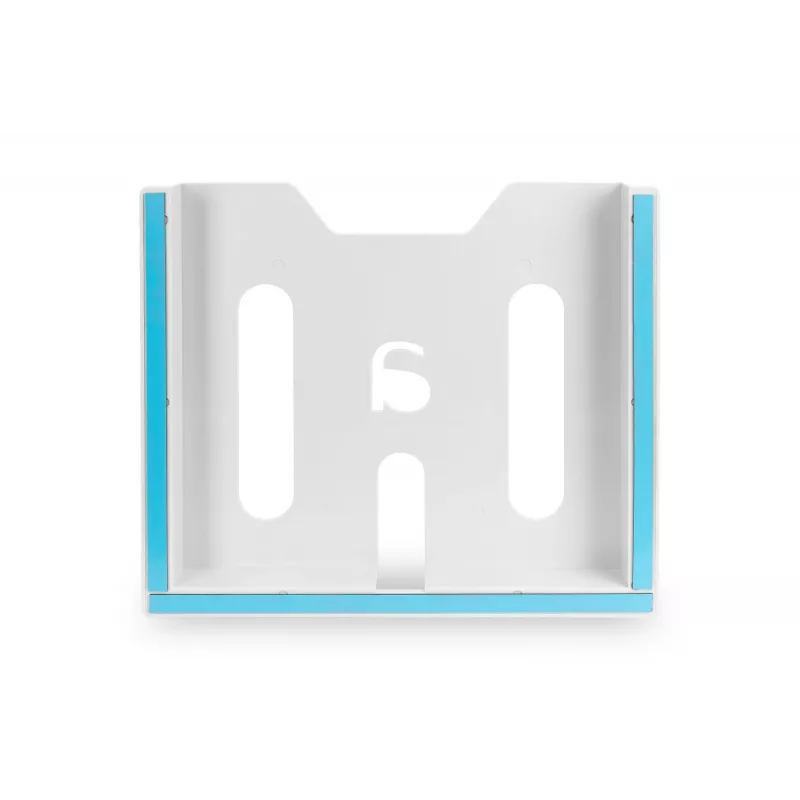

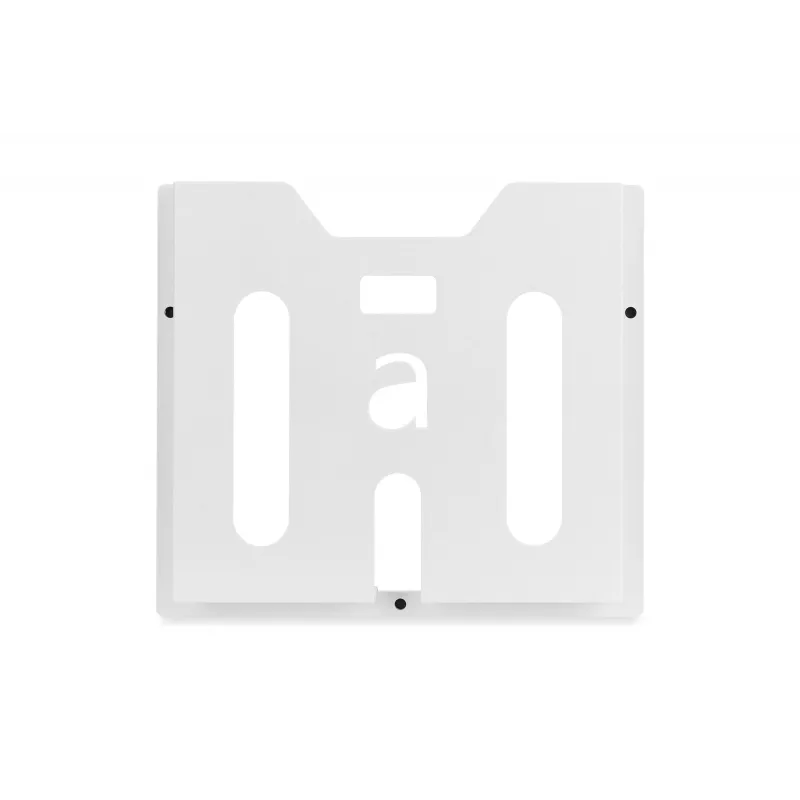

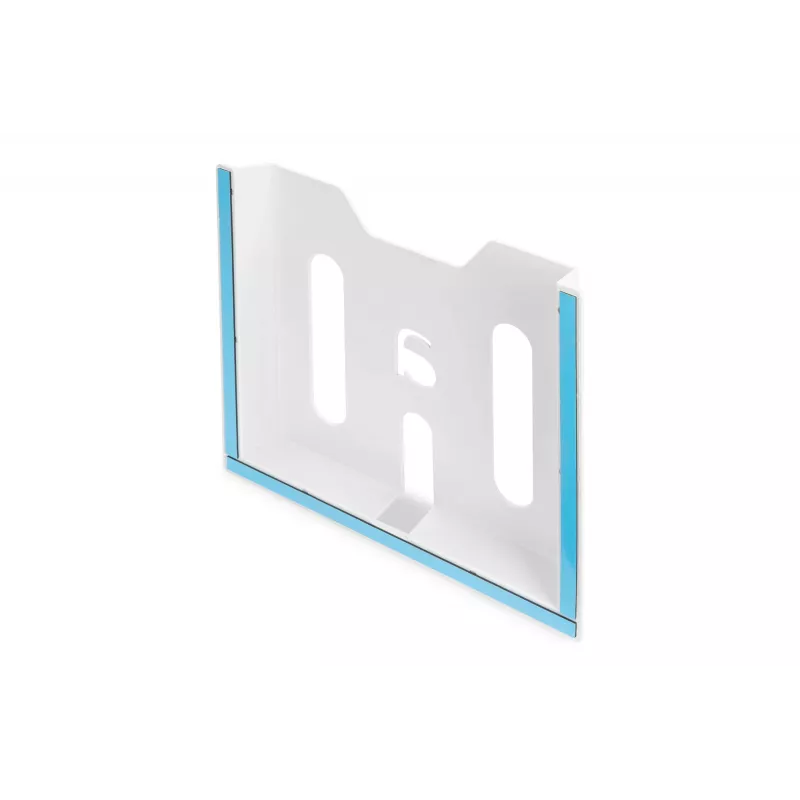

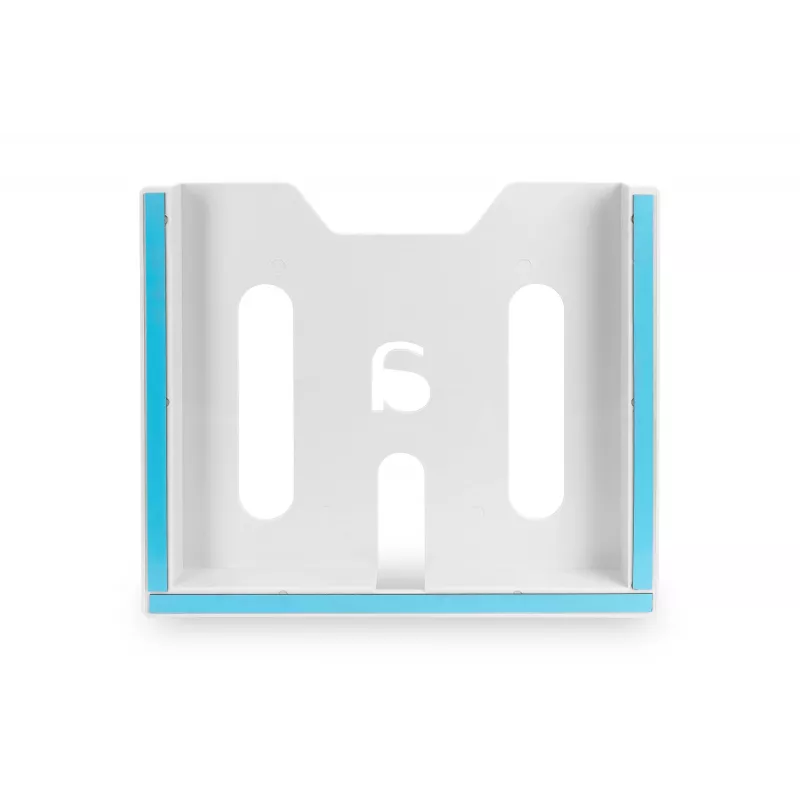

• Flexible mounting: self-adhesive fastening tape for quick installation or integrated screw holes for permanent attachment

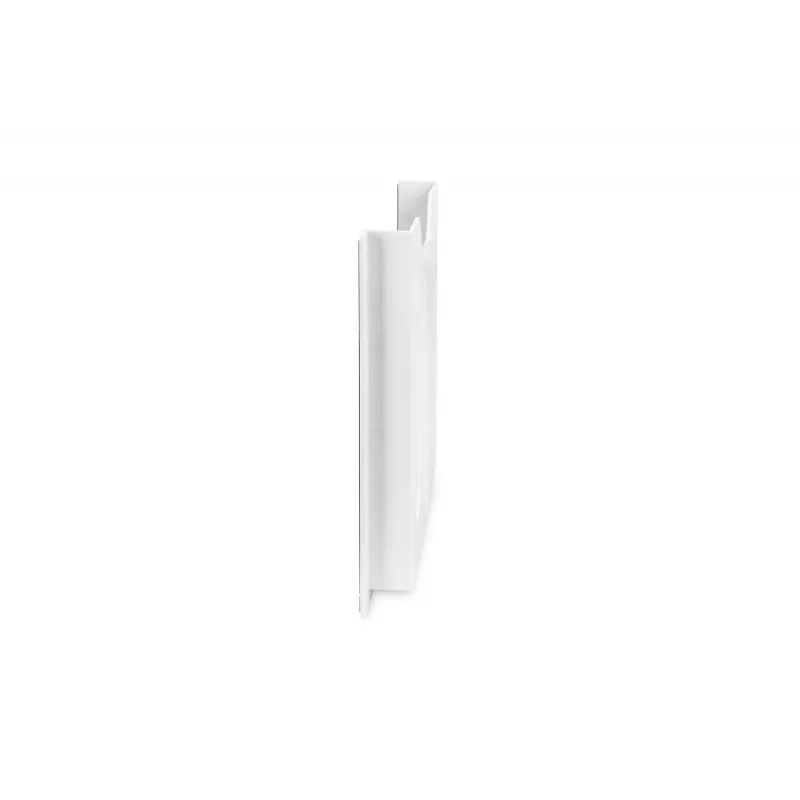

• Slim 30 mm depth preserves clearance on cabinet doors while keeping paperwork readable
• Designed for server cabinets, switch cabinets, and similar 19-inch rack equipment

In daily use

Place a DIN A4 document inside the transparent pocket so it remains fully visible through the opening. For temporary or quick installation, clean the mounting surface, peel the backing from the self-adhesive tape, and press the holder firmly onto the cabinet door or panel. For permanent mounting, align the holder, mark screw positions using the integrated holes, and fasten with appropriate screws. The holder keeps installation instructions, maintenance checklists, and wiring plans organized and immediately accessible during service or troubleshooting.

Full specifications

• Brand: DIGITUS
• Model: DN-97679
• MPN: DN-97679
• EAN: 4016032482321
• Material: Grey plastic (RAL 7035)
• Compatible document size: DIN A4
• Dimensions (W x D x H): 263 x 30 x 233 mm
• Mounting: Self-adhesive fastening tape and integrated screw holes
• Product type: Cable Management Panel
• Rack unit: 1U
• Rack size compatibility: 19-inch
• Mounting type: Rack mount (front)
• Number of cable slots: 5
• Application: Cable organization, cable routing, cable strain relief
• Certifications: RoHS compliant

Final note

With its durable construction and dual mounting options, the DIGITUS DN-97679 Circuit Diagram Holder is a practical addition to any professional rack environment, ensuring critical documentation is always within reach.
