Soporte para monitor ALOGIC F49MMA1 para pantallas de 49 pulgadas, pinza/pasacables de mesa, VESA 75x75–100x100, hasta 20 kg

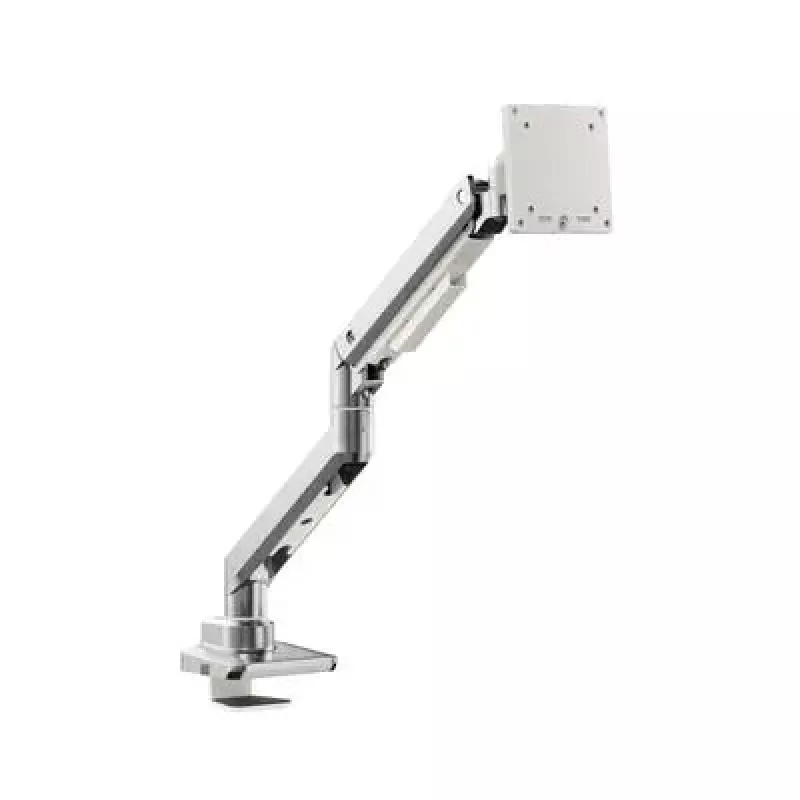

ALOGIC F49MMA1 is a single-display monitor mount designed for flat screens up to 124.5 cm (49") that installs to the desk using either a clamp or a grommet. The arm supports VESA mounting patterns from 75×75 to 100×100 mm and a maximum load of 20 kg, and provides swivel and tilt adjustments to help position a large monitor ergonomically while conserving desk space.

Advantages

The monitor mount accepts common VESA patterns and a wide range of screen sizes up to 49", enabling compatibility with many displays. With a 20 kg load capacity it supports heavier panels within the specified size range. Dual installation options (desk clamp or grommet) make it adaptable to different desk styles and thicknesses. The mounting arm offers swivel of ±90° and tilt from +50° to −20°, allowing flexible ergonomic adjustment. Built-in cable management keeps cables organized along the arm for a cleaner workspace. The construction uses metal and reinforced components for stable support of the display.

Suitable for

• Home office setups where desk space needs to be maximized
• Corporate workstations with single large monitors
• Graphic design, video editing or productivity tasks requiring adjustable screen position
• Shared workspaces where quick adjustment and secure mounting are required

Key specifications

• Maximum weight capacity: 20 kg
• Supported screen size up to 124.5 cm (49")
• Supported VESA patterns: 75×75 mm and 100×100 mm
• Number of displays supported: 1
• Desk installation: clamp or grommet
• Adjustment: swivel ±90°, tilt +50° to −20°
• Material: aluminium, steel, plastic
• Cable management integrated

How to use

Mount the bracket to the desk using the clamp or the grommet base following the included installation instructions and ensure the desk edge or grommet hole meets the recommended thickness and clearance. Attach the monitor to the VESA plate using the correct screws for the 75×75 or 100×100 pattern, then lift the display onto the arm and secure it according to the manual. Adjust tilt and swivel to the preferred viewing angle and route cables along the integrated cable management channels. Check that all fasteners are tightened and that the monitor is stable before regular use.

Recommendations

For safe and reliable operation, use this mount with displays that conform to the specified maximum screen size and weight, and verify compatibility with the monitor's VESA pattern. Periodically check and retighten fasteners after initial installation and after moving the display to ensure continued stability.
