Soporte para monitor Lenovo 4XF1K03170 68,6 cm (27") de mesa negro

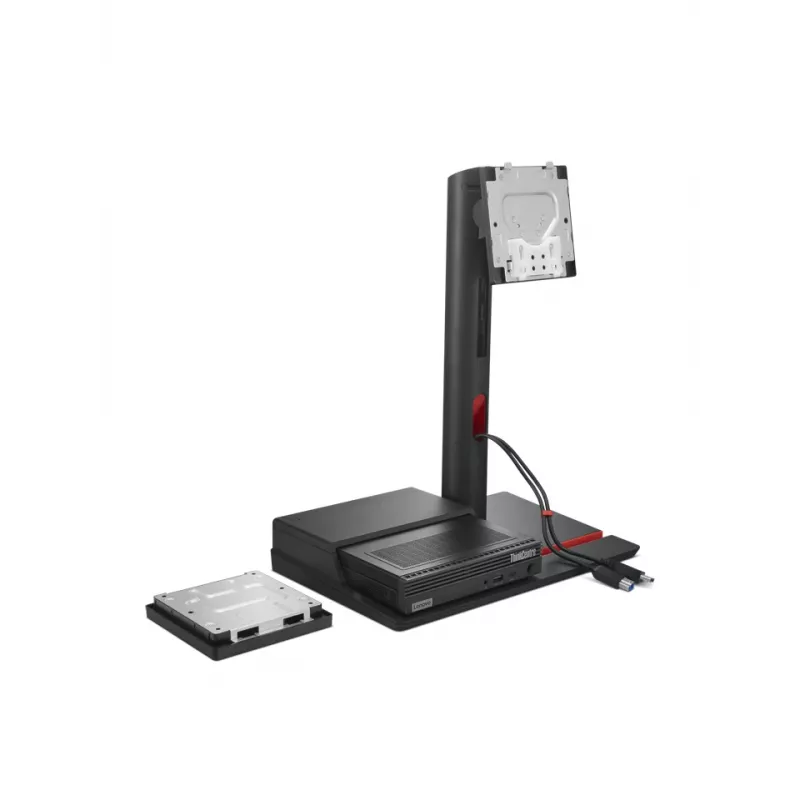

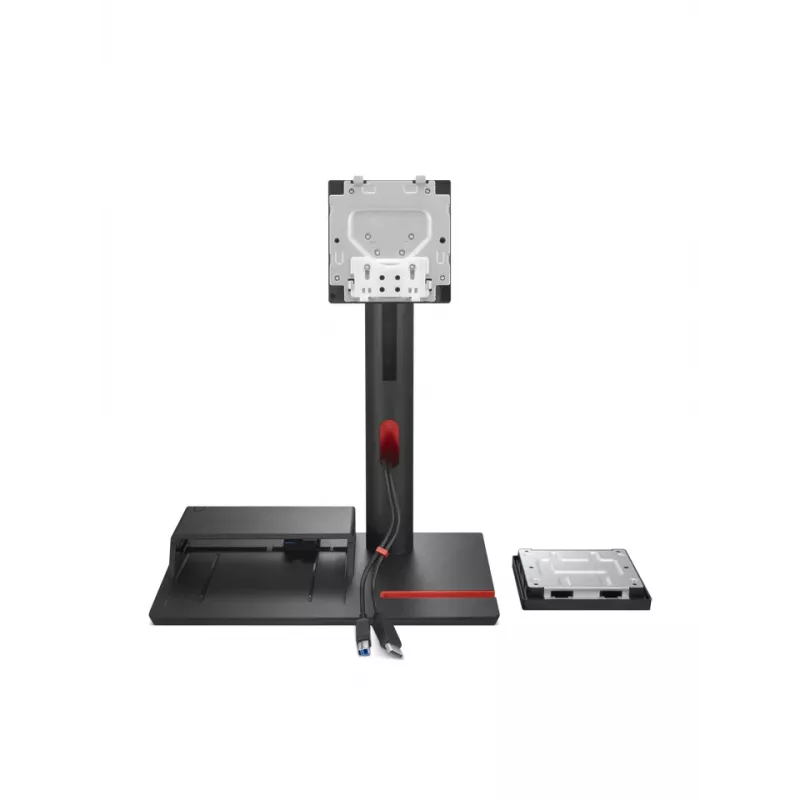

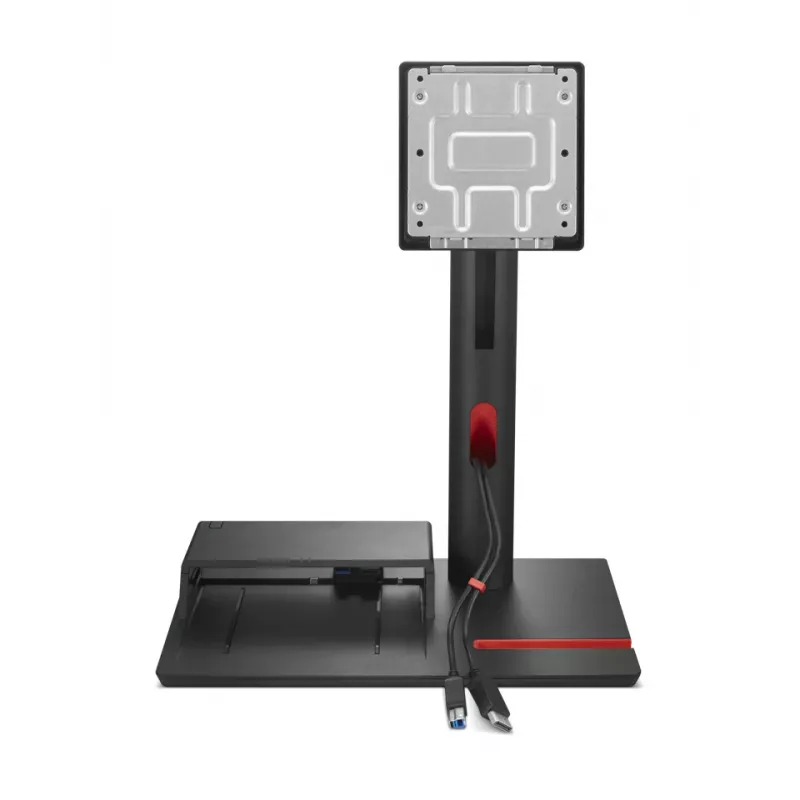

The Lenovo 4XF1K03170 monitor mount is a compact, black mounting solution for single displays from 22" to 27" with a maximum load of 5.5 kg. It supports VESA patterns up to 100 x 100 mm and offers a tilt adjustment range of -5° to 22°, allowing easy alignment of the screen while keeping cables tidy and providing access to front ports when used with compatible Tiny PCs such as the ThinkCentre TIO Flex.

Advantages

This mount combines a slim black design with practical compatibility for most 22"–27" monitors and Tiny PC integration. It supports VESA 100 x 100 mm, handles up to 5.5 kg, and provides tilt adjustment for ergonomic viewing. Cable management and a compact footprint reduce clutter and simplify installation.

Suitable for

• Office workstations with a single 22"–27" monitor
• Environments using Lenovo Tiny PCs and ThinkCentre TIO Flex integration
• Spaces requiring compact mounts with cable management and front port access

Key specifications

• Maximum screen size: 27"
• Maximum VESA mount: 100 x 100 mm
• Maximum weight capacity: 5.5 kg
• Product colour: Black
• Number of displays supported: 1
• Tilt range: -5° to 22°
• Product weight: 4 kg

How to use

Attach the mount to a compatible display using the 100 x 100 mm VESA holes, then secure the monitor to the arm following the included screws and instructions. Adjust the tilt between -5° and 22° to achieve a comfortable viewing angle. When integrating a Tiny PC or ThinkCentre TIO Flex, align and mount the Tiny unit according to the TIO Flex guidance to ensure front ports remain accessible and cables are routed neatly.

Recommendations

Confirm that your monitor’s VESA pattern and weight do not exceed 100 x 100 mm and 5.5 kg respectively. Use proper mounting hardware and follow Lenovo’s installation instructions to ensure safe and stable installation.
