Soporte para pantalla de señalización Vision VFM-F10/HB

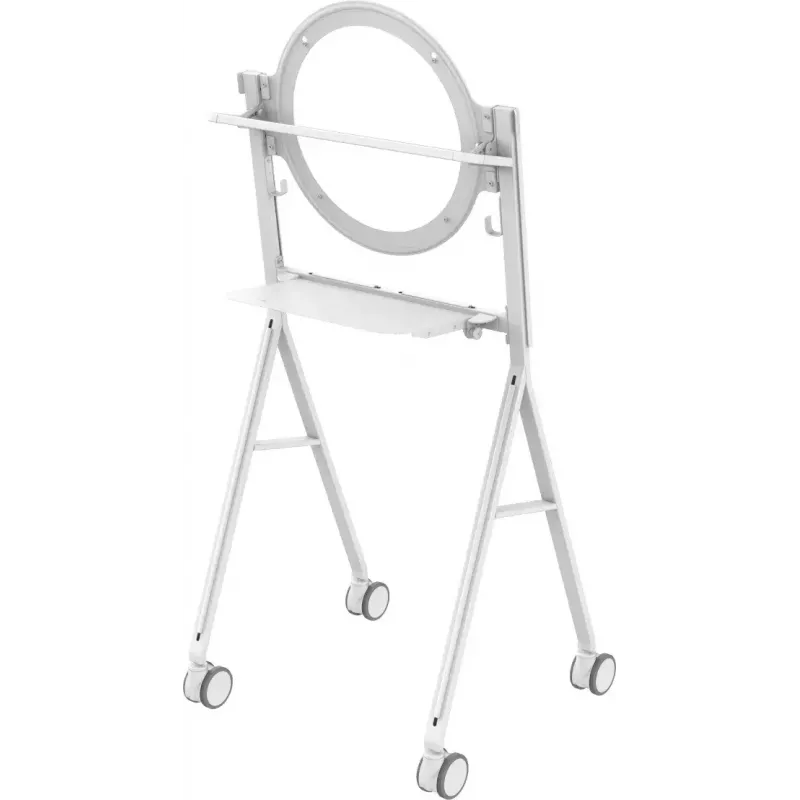

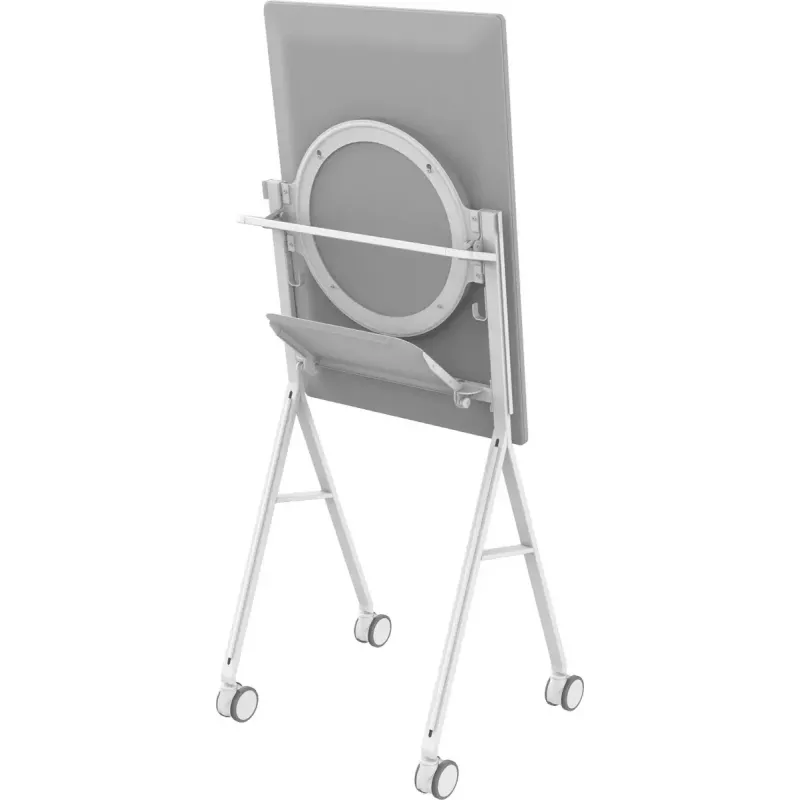

The Vision VFM-F10/HB floorstand is a mobile signage display mount designed for 50"–55" screens with a maximum load of 45 kg. Its slim white structure is engineered to complement interactive displays such as Microsoft Hub2, offering stable support while remaining easy to move and position in meeting rooms or public spaces.

Advantages

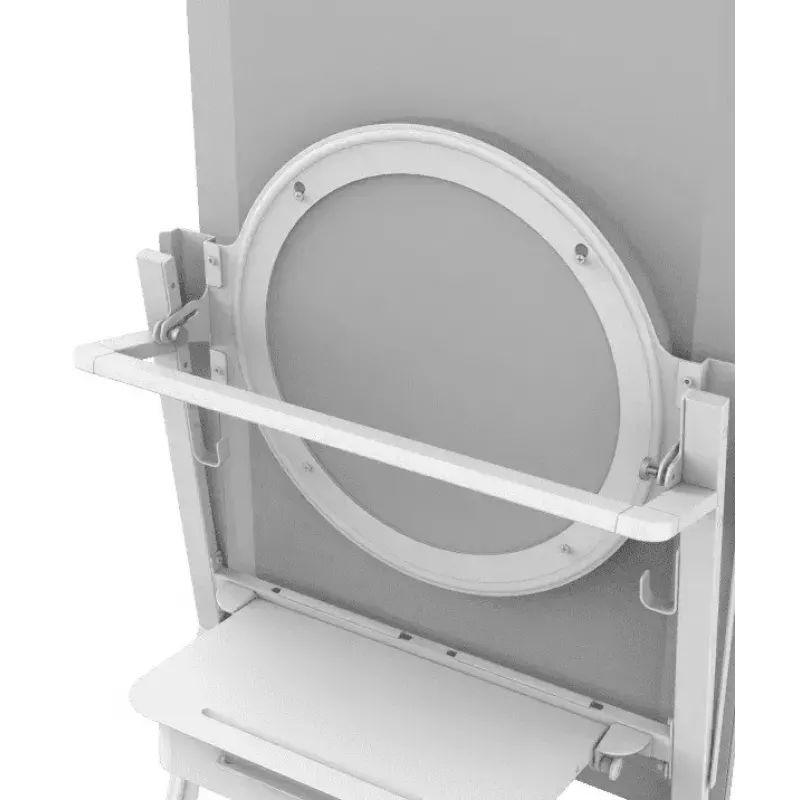

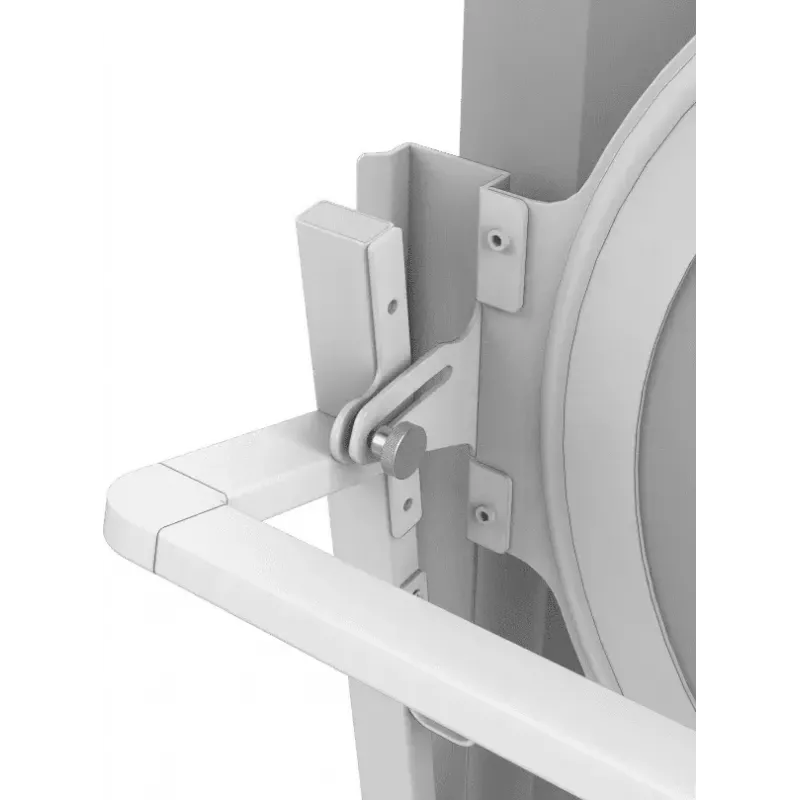

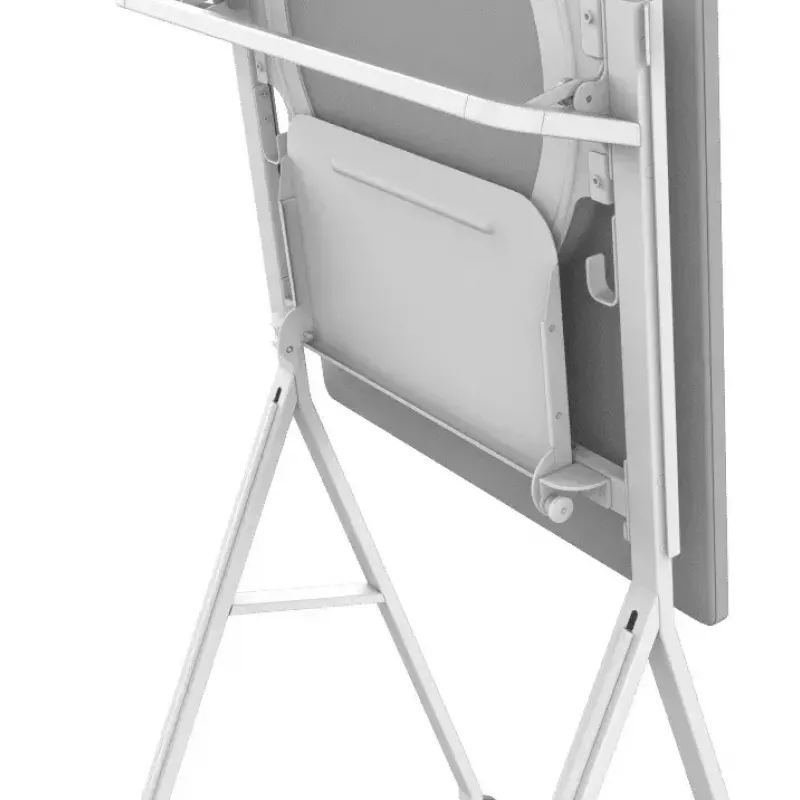

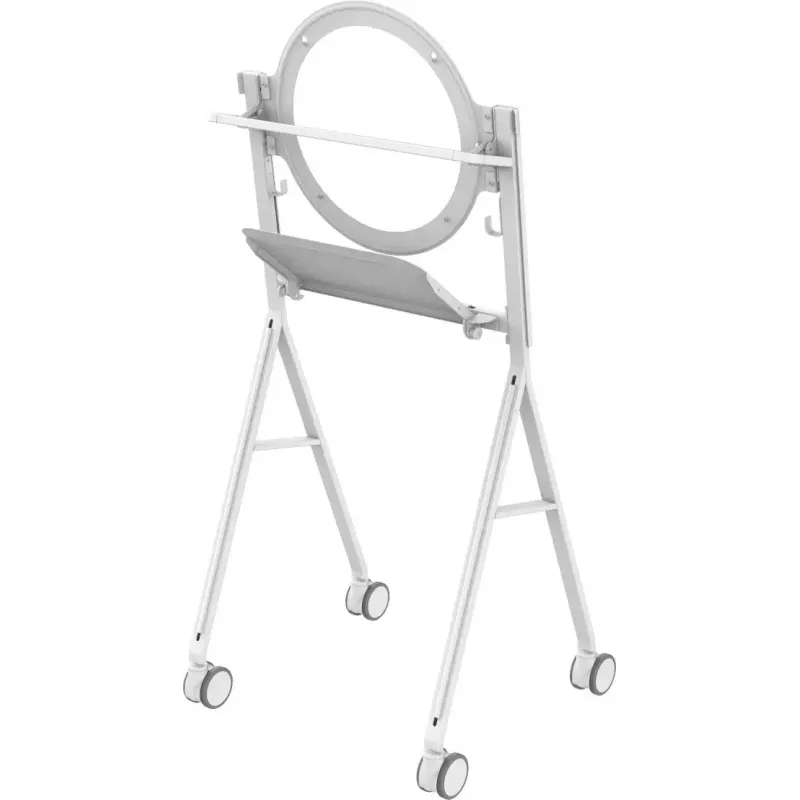

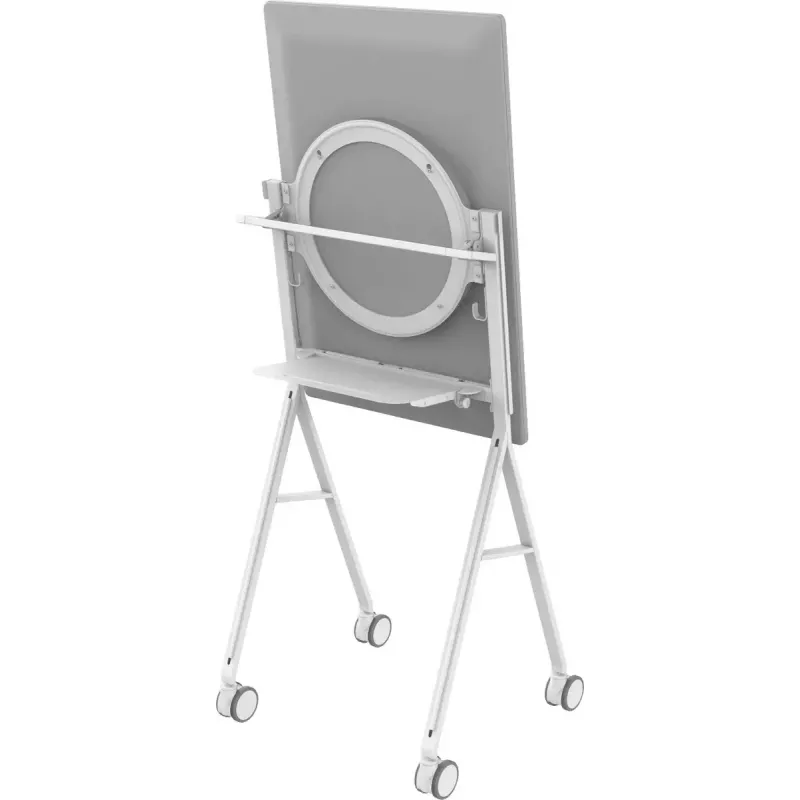

The stand meets UL1678 stability requirements and is rated for a safe working load of 45 kg. Large 4" (100 mm) medical-grade castors glide smoothly over carpet and rough surfaces and lock to secure the stand in place. Integrated cable management and two rear cable hooks keep power and signal cables tidy and protected. The flip-up rear shelf (460 mm wide) supports a laptop and mouse and can be folded or removed when not needed. The halo mounting interface is sized to match the round protrusion on the back of the Microsoft Hub2, and the display can be mounted in portrait or landscape orientation.

Suitable for

• Interactive meeting rooms using Microsoft Hub2
• Corporate signage and wayfinding displays
• Mobile AV setups that must pass safety and stability standards
• Environments where easy movement through doorways and carpeted areas is required

Key specifications

• Maximum weight capacity: 45 kg
• Supported screen size: 50"–55" (127–139.7 cm)
• Colour: White
• Castor size: 4" (100 mm), lockable, medical-grade
• Rear shelf width: 460 mm (18.1")
• Depth (footprint): 652 mm (25.7")
• Mounting halo: 350 x 350 mm (matches Hub2 round bump)

How to use

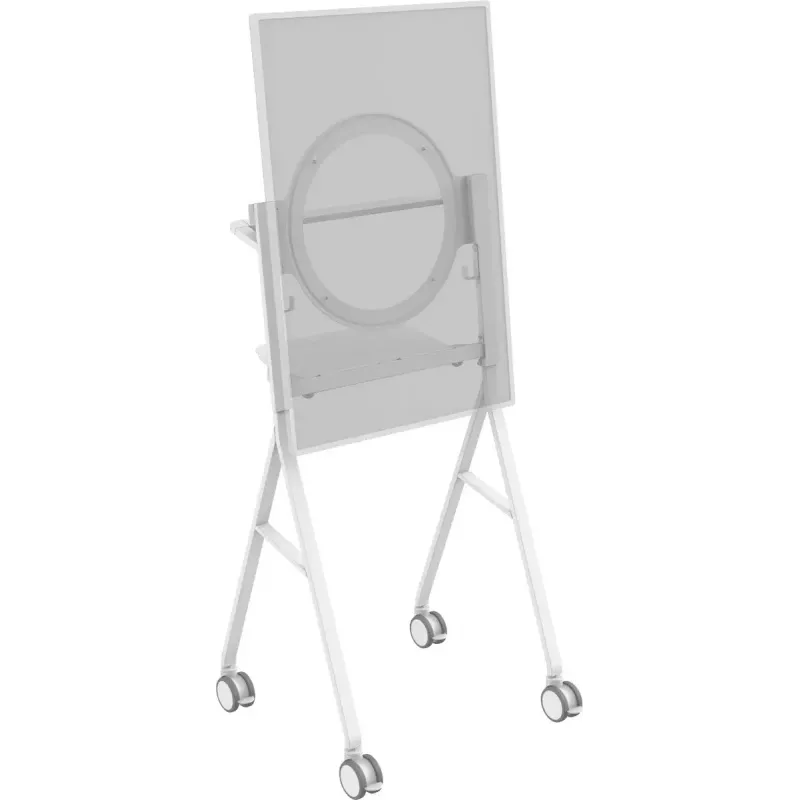

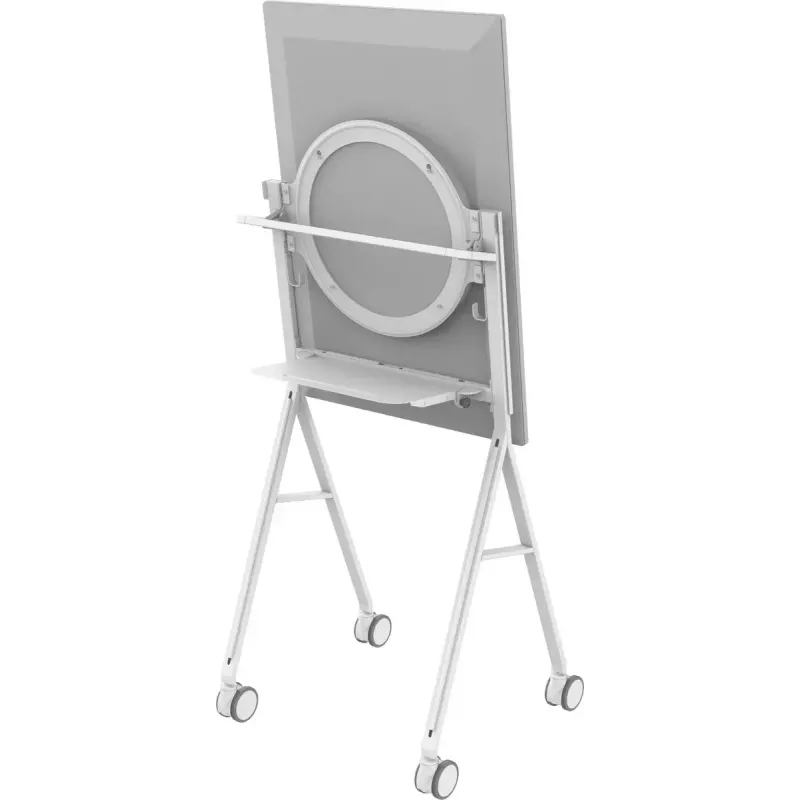

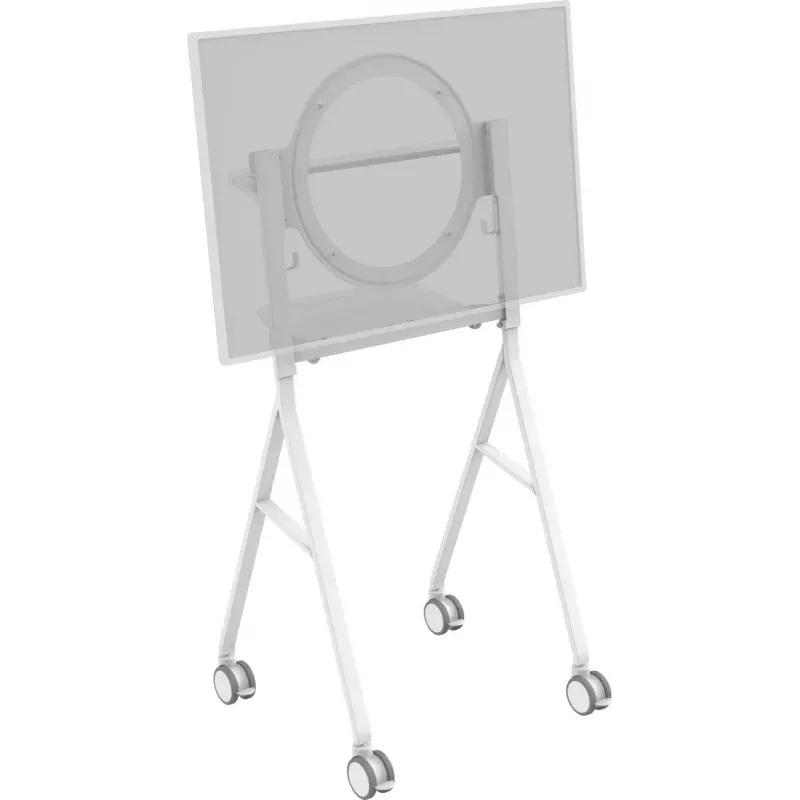

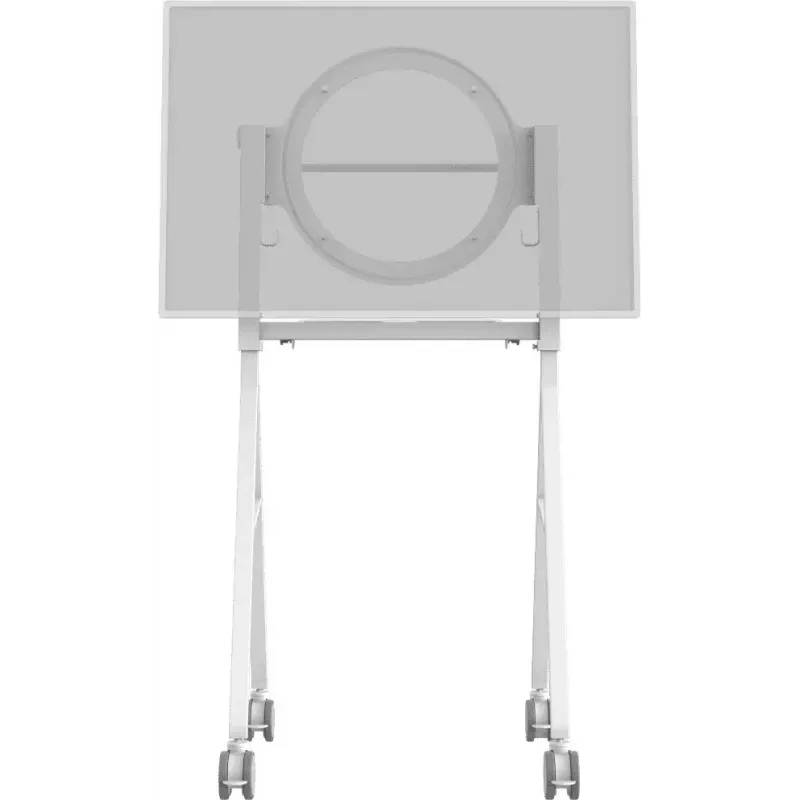

Install the display onto the halo mount ensuring correct alignment with the Hub2 rear protrusion, then secure all fasteners according to the display manufacturer’s instructions. Lock all castors before tipping the stand for any stability test or prolonged use. Position the display in portrait or landscape as required; for seated users tilt the display forward toward vertical to reduce glare, and for standing users use the default 7° back angle. Store excess cables along the rear leg channel and on the cable hooks to prevent them from being run over by the wheels.

Recommendations

To maintain UL1678 compliance and safe operation, do not exceed the 45 kg load limit. Always lock the castors before leaving the display unattended and check fasteners periodically. An optional battery bracket for the Microsoft Hub2 is available to mount a compatible APC battery under the shelf (availability noted by manufacturer).
