Soporte para pantalla de señalización Vision VFM-W8X6

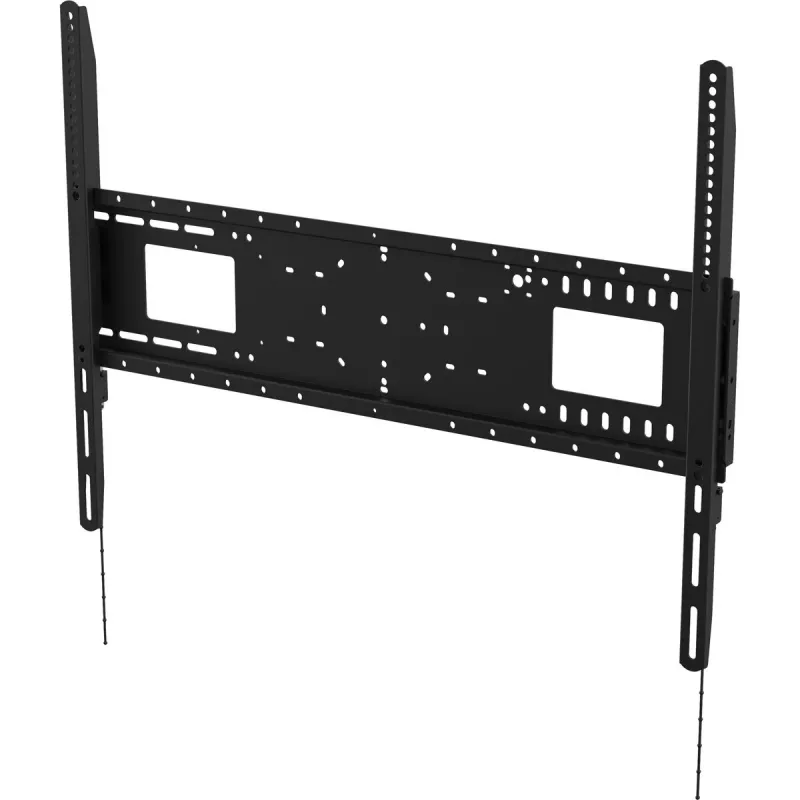

The Vision VFM-W8X6 is a heavy-duty flat-panel wall mount designed for professional AV installations. It supports flat-panel LCD and LED displays with rear mounting holes up to 800 mm wide by 600 mm tall and fits most screens from 47" to 90". The mount is engineered for a slim profile, strong load capacity and quick installation, and includes a range of fixings for direct attachment to the display.

Advantages

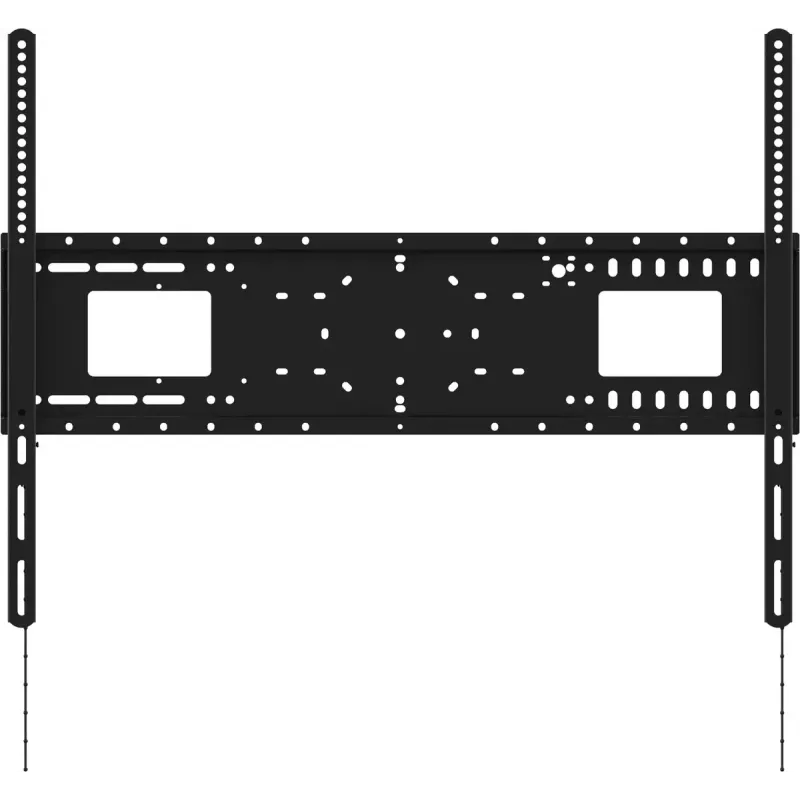

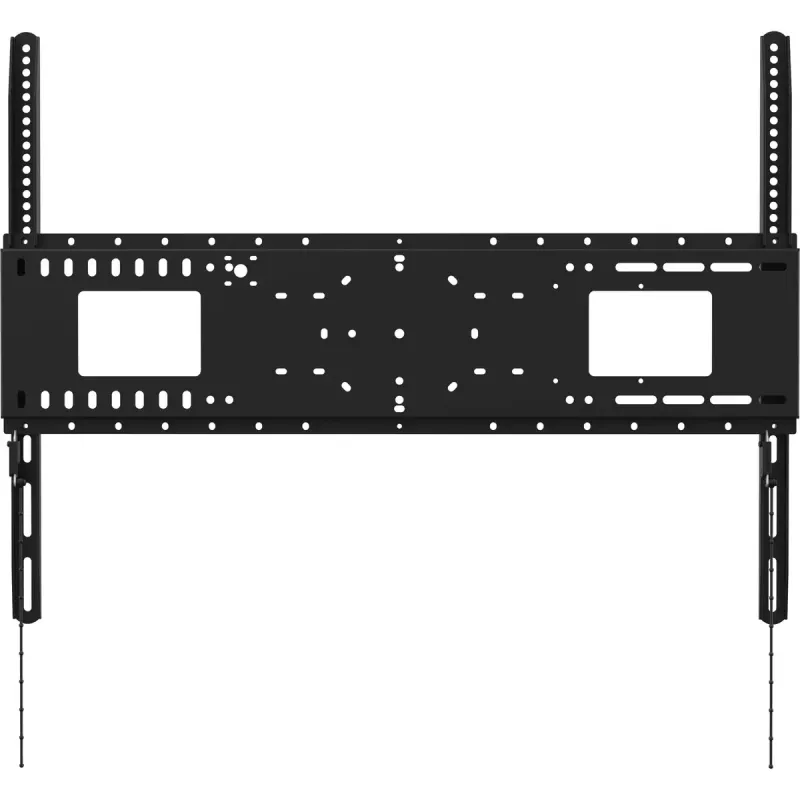

The VFM-W8X6 uses heavy gauge steel to provide a safe working load of up to 130 kg while keeping the display just 36 mm from the wall. Slotted holes on the wall plate allow post-fix levelling, and the horizontal section secures the display with latches for simple mounting and removal. The kit includes multiple M5, M6 and M8 bolts in different lengths to match common VESA hole patterns, and the low-profile design reduces snagging and improves load distribution close to the wall.

Suitable for

Key specifications

How to use

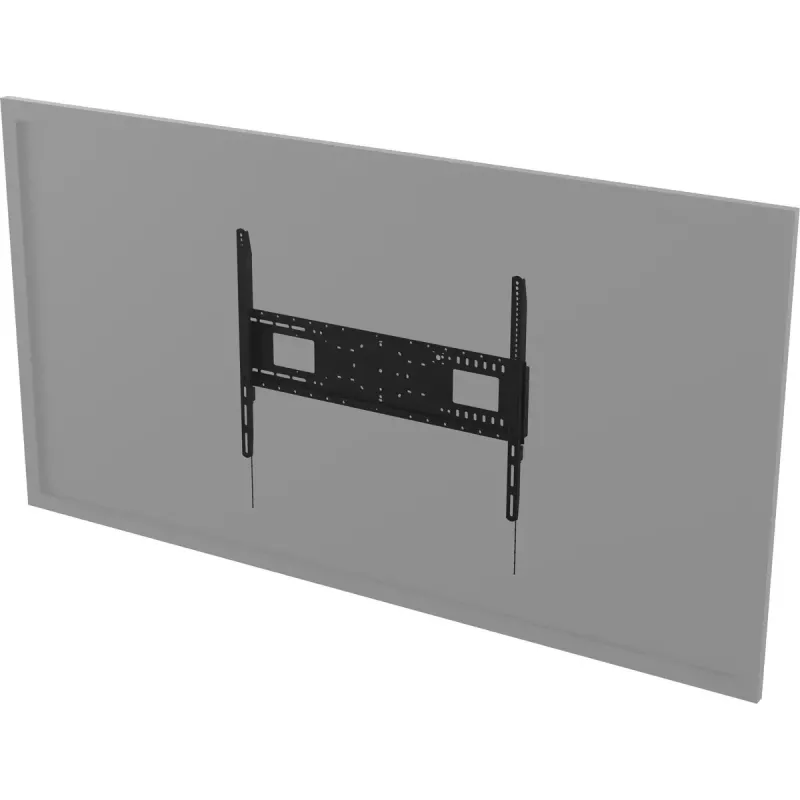

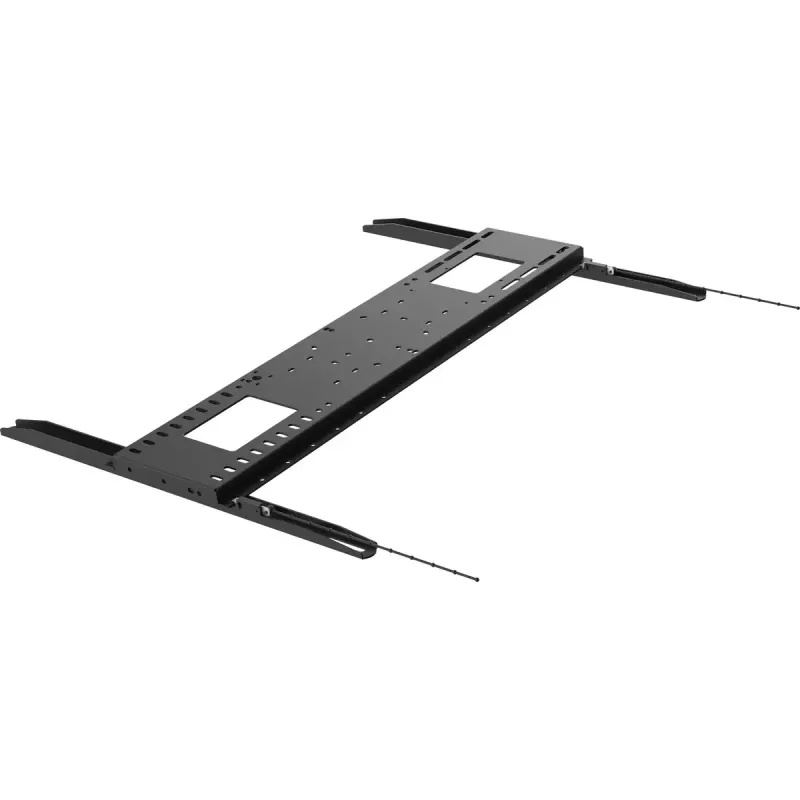

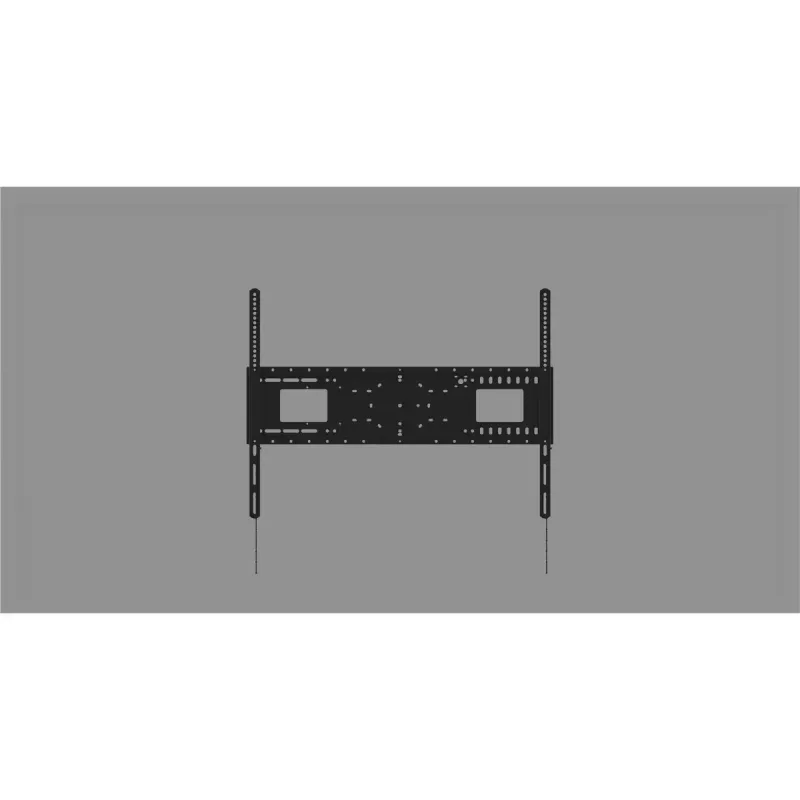

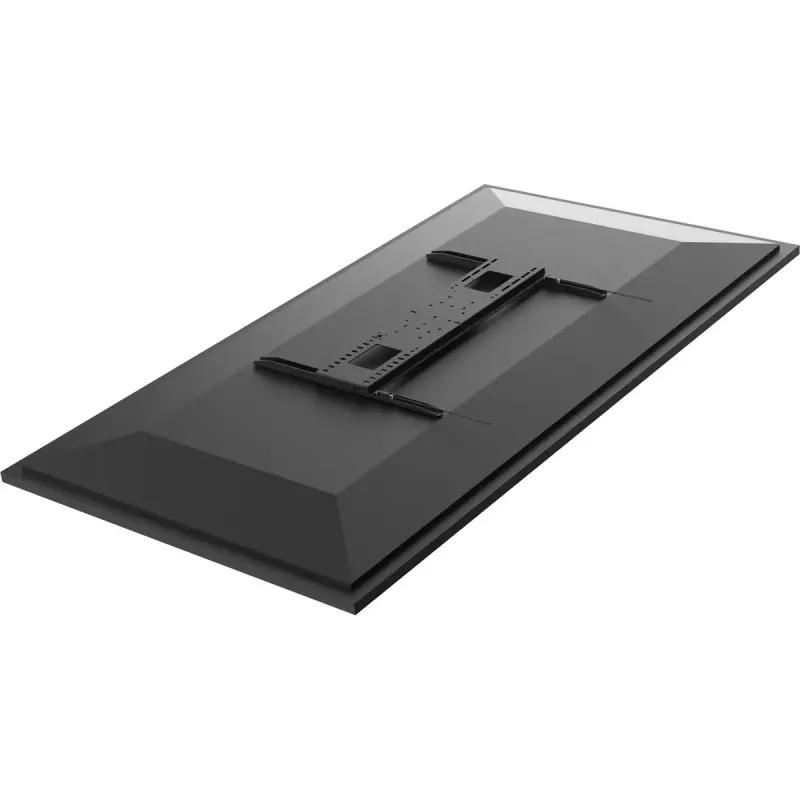

Fix the wall plate to a suitable load-bearing surface using appropriate anchors (not supplied) and use the slotted holes to level the mount before fully tightening. Attach the vertical arms to the rear of the display using the supplied M5, M6 or M8 bolts as required by the display's VESA pattern. Hang the display on the horizontal section so the latches engage, and trim the plastic pull-rods so they are concealed behind the display. To remove the display, pull the rods downward to release the latches.

Recommendations

Ensure the mounting surface and fixings are rated to support the combined weight of the mount and display. Do not use the mount with curved screens. For portrait rotation, add the optional rotary bearing assembly and secure the vertical arms from behind as instructed. Consider the optional video-conference shelf, flip-up laptop shelf and Logitech Rally brackets for integrated AV setups.
