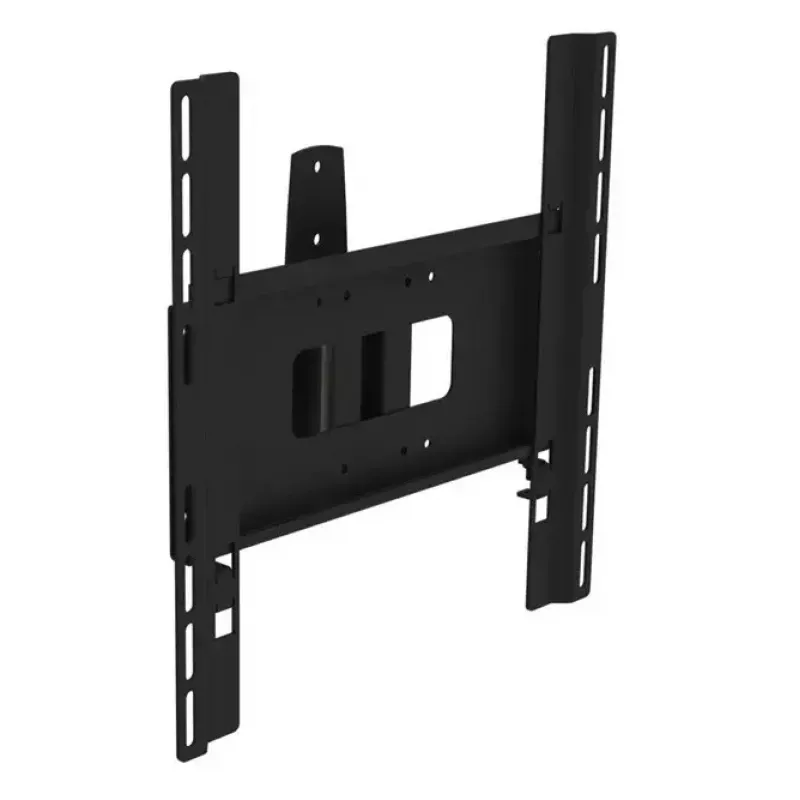

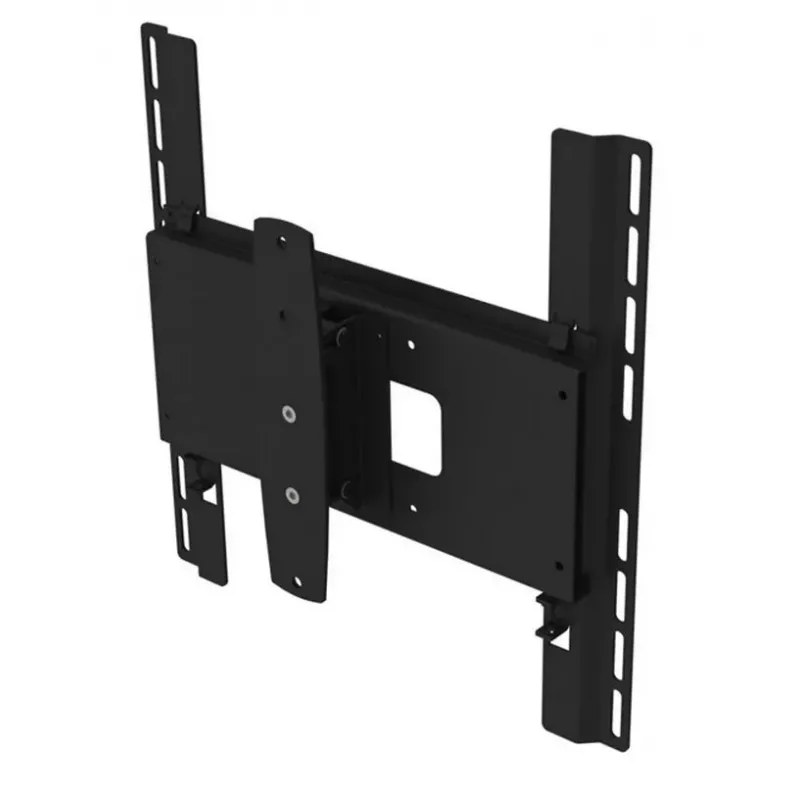

Soporte para TV SMS Smart Media Solutions FS041008

The SMS Smart Media Solutions FS041008 TV mount is designed for middleweight flat screens from 30" to 46" and supports a maximum weight of 30 kg. It offers adjustable tilt and swivel to set an optimal viewing angle while keeping the display close to the wall with a 9.8 cm projection. Constructed in black and compatible with VESA patterns from 75 x 75 mm up to 400 x 400 mm, this wall mount suits typical home and office installations.

Advantages

The mount provides a tilt range of -3° to 12° and a swivel range of -20° to 20° for flexible positioning. With a maximum load of 30 kg and wide VESA compatibility, it fits most 30"–46" screens. The 9.8 cm distance to the wall keeps the installation compact, and the 3.7 kg unit weight simplifies handling during installation.

Suitable for

• Mounting 30"–46" LED/LCD flat screens
• Living rooms, bedrooms and offices
• Displays that require tilt and swivel adjustment

Key specifications

• Maximum screen size: 46"
• Maximum weight capacity: 30 kg
• VESA compatibility: 75 x 75 mm up to 400 x 400 mm
• Tilt range: -3° to 12°
• Swivel range: -20° to 20°
• Distance to wall: 9.8 cm
• Product colour: Black
• Product weight: 3.7 kg

How to use

Attach the mount to a suitable wall anchor or stud following local building codes and the included installation instructions. Fasten the VESA-compatible bracket to the back of the screen using screws that match the screen’s mounting holes, then hang the screen on the wall bracket and secure according to the manufacturer’s instructions. Adjust tilt and swivel to achieve the desired viewing angle.

Recommendations

Verify the screen weight and VESA pattern before installation. Use appropriate wall fixings for your wall type and ensure at least one person assists during mounting to safely lift and secure the screen.
