Cable de audio TS SSQ Mono 6,3 mm (1/4 pulgadas) — 7 m, 6 mm AD, apantallado PVC, 85Ω ±5Ω

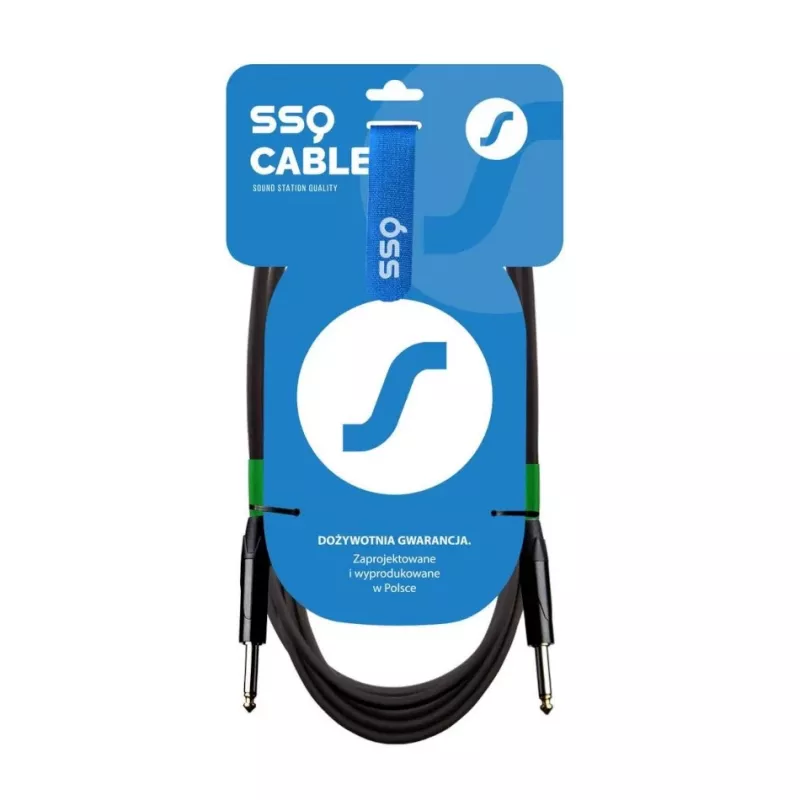

Unbalanced TS audio cable by SSQ with male 6.3 mm (1/4") mono jacks on both ends. The cable is 7 m long, has a 6 mm outer diameter, PVC shielding and a copper conductor with a cross-section of 0.23 mm². Impedance is 85 Ω ±5 Ω. A cable protector is included to reduce stress at the connectors.

Advantages

This TS - TS cable provides a straightforward mono signal path for instrument and line-level connections. Features male 6.3 mm mono jack connectors on both ends, PVC outer shielding for mechanical protection and flexible copper conductors for reliable signal transmission. The included cable protector helps prevent connector strain and improves durability during frequent use.

Suitable for

Key specifications

How to use

Insert the 6.3 mm male mono jack into the instrument output and the opposite jack into the amplifier, pedal or audio input. Ensure connectors are fully seated to avoid intermittent contact. Route the cable to avoid sharp bends and pinching; the PVC shielding provides basic mechanical protection but does not replace proper cable management.

Recommendations

For best performance, keep cable runs as short as practical for the application to minimise noise and signal loss. Avoid running the cable parallel to mains power cables. Inspect connectors regularly and replace the cable if the conductor or insulation is damaged.
