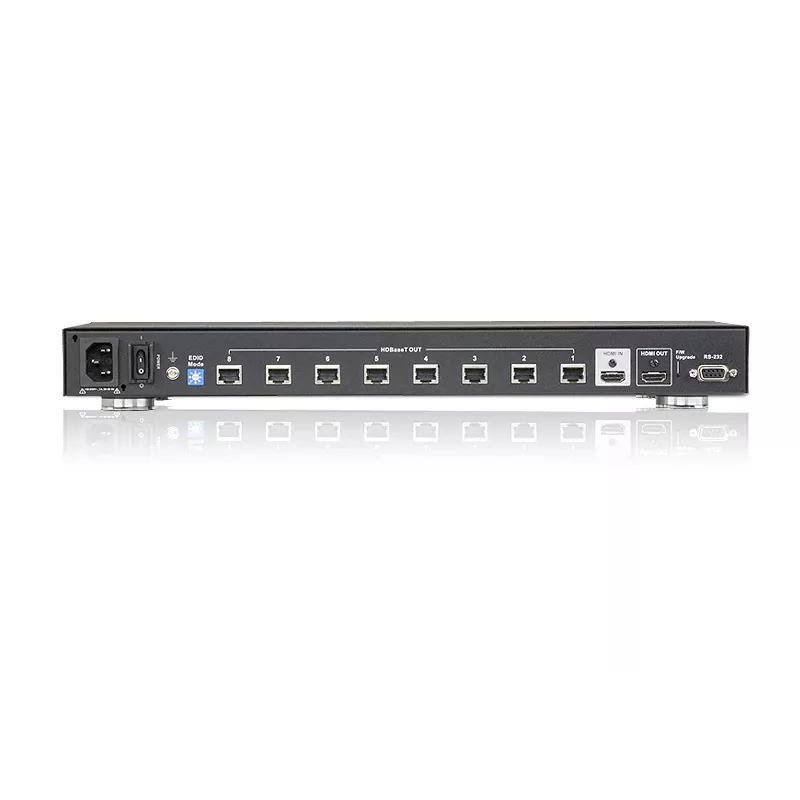

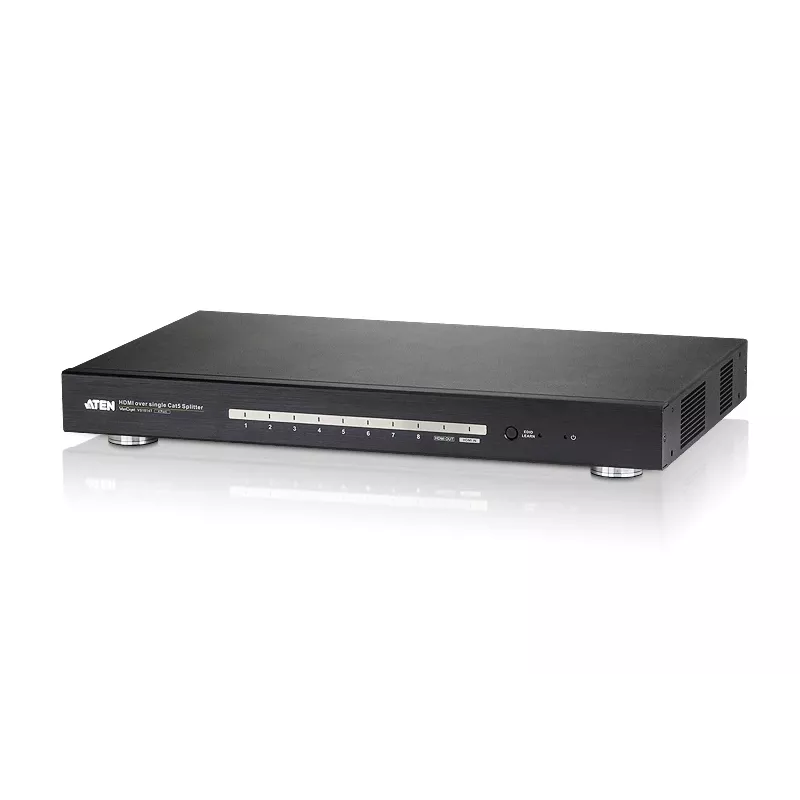

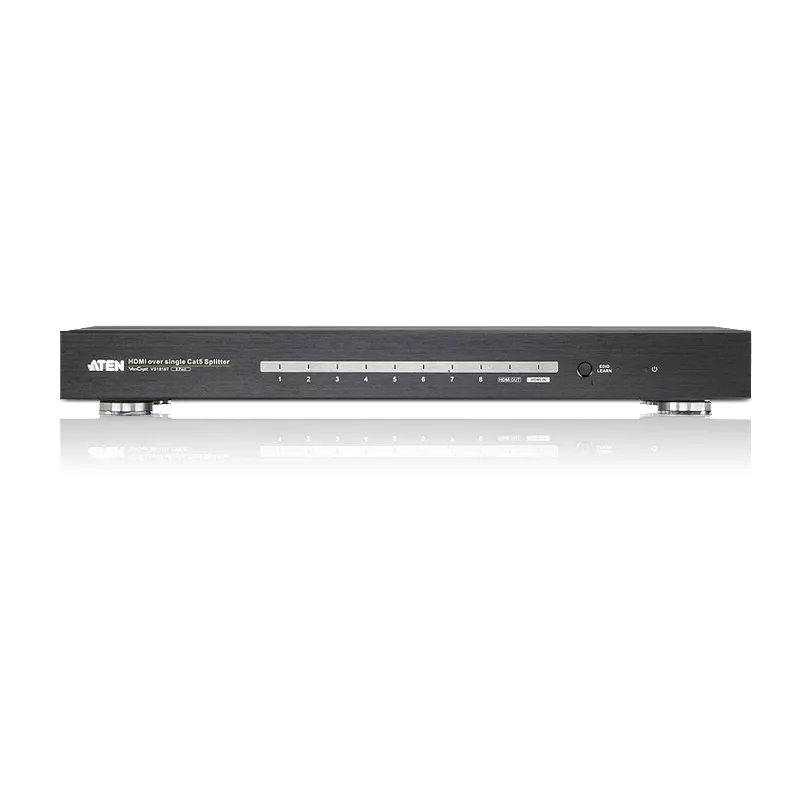

Splitter ATEN HDMI de 8 puertos CAT5e/6 sobre un solo cable Cat / 4K / RS232 / HDBaseT

The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.

The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.

The VS1818T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities

ATEN 8-Port HDMI CAT5e/6 Splitter over Single Cat Cable / 4K / RS232 / HDBaseT. Video port type: HDMI, Video out: HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. Cable types supported: Cat5, Cat5e, Cat6. AC input voltage: 110/220 V, Power consumption (typical): 31.7 W. Width: 261.1 mm, Depth: 437.2 mm, Height: 44 mm
