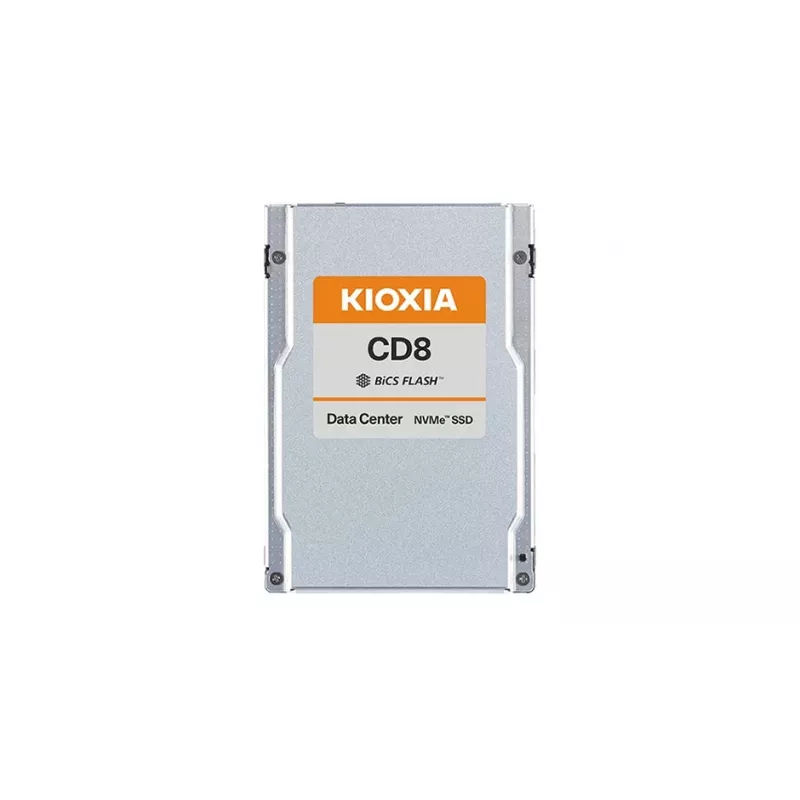

SSD 2,5 pulgadas Kioxia CD8-R — 3,84 TB NVMe PCIe 4.0 (x4), 7200/3800 MB/s, 2,5 pulgadas 15 mm, para servidor/estación de trabajo

The Kioxia CD8-R 3.84 TB is a 2.5" PCIe 4.0 NVMe read‑intensive data center SSD designed for scale‑out and cloud workloads. It uses Kioxia 112‑layer BiCS FLASH 3D TLC memory and a PCIe® 4.0 (16 GT/s x4) interface to provide high sustained read performance and up to 1 DWPD endurance in a 2.5‑inch form factor.

Advantages

This SSD delivers consistent random read performance up to 1,250K IOPS and random write performance up to 200K IOPS while supporting PCIe 4.0 bandwidth for improved throughput. With a 3.84 TB capacity in a 2.5" form factor and 1 DWPD endurance, it is suitable for hyperscale data center environments and cloud applications that require reliable, read‑optimized storage. The drive also offers high sequential read and write speeds (up to 7200 MB/s read and 3800 MB/s write) appropriate for server and workstation use.

Suitable for

• Scale‑out cloud storage and object stores
• Big data and IoT analytics platforms
• Online transaction processing (OLTP)
• Virtualization and VDI hosts
• High‑performance servers and workstations

Key specifications

• Manufacturer: Kioxia
• Model: CD8‑R (MPN: KCD8XRUG3T84)
• Form factor: 2.5"
• Capacity: 3.84 TB (3840 GB)
• Interface: PCIe 4.0 NVMe (x4, 16 GT/s)
• NAND: Kioxia 112‑layer BiCS FLASH 3D TLC
• Endurance: 1 DWPD
• Max random read: up to 1,250K IOPS
• Max random write: up to 200K IOPS
• Sequential read speed: up to 7200 MB/s
• Sequential write speed: up to 3800 MB/s
• Weight: 0.13 kg
• EAN: 8592978517175

How to use

Install the CD8‑R SSD into a compatible 2.5" drive bay or U.2/adapter that supports PCIe 4.0 NVMe connections, following server or workstation manufacturer instructions. Ensure the host firmware and OS NVMe drivers support PCIe 4.0 to achieve maximum performance. Configure storage controllers or RAID solutions as required by your deployment, and monitor drive health using vendor tools or standard NVMe SMART utilities.

Recommendations

For optimal long‑term performance, use the drive in read‑intensive workloads and maintain appropriate thermal management in data center environments. Consider firmware updates from Kioxia and regular monitoring of SMART metrics to ensure reliability and to plan replacements based on endurance and operational requirements.
