SSD Lenovo M.2 2280 PCIe 4.0 512 GB – almacenamiento interno NVMe

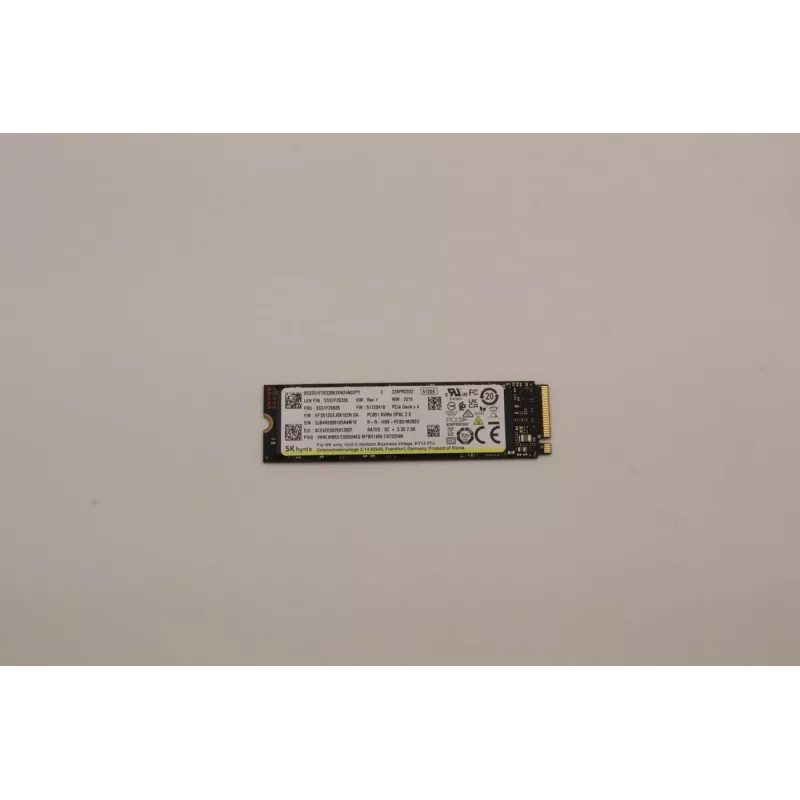

Lenovo M.2 2280 PCIe 4.0 512GB is an internal NVMe solid-state drive that fits devices with an M.2 2280 slot. This SSD uses the NVMe protocol over a PCIe 4.0 interface to deliver significantly higher sequential read and write throughput compared with SATA-based drives. Its 512GB capacity provides a balance of storage for operating systems, applications, and user files while maintaining the compact M.2 2280 form factor compatible with many modern laptops and desktop motherboards.

Advantages

The PCIe 4.0 interface and NVMe protocol enable lower latency and improved random I/O performance for faster boot times, application launches and file transfers. The compact M.2 2280 design saves space inside systems and eliminates the need for additional power or data cables. Solid-state construction offers greater resistance to shock and vibration than spinning drives, while the 512GB capacity provides practical room for OS installation and frequently used programs and documents.

Suitable for

• Installing a modern operating system for faster boot and responsiveness
• Storing and launching applications, productivity software and games
• Expanding storage in laptops or desktops with an available M.2 2280 slot
• Use in compact workstations where space and cable-free installation are required

Key specifications

• Form factor: M.2 2280
• Interface: PCIe 4.0 x4
• Protocol: NVMe
• Capacity: 512 GB
• Physical type: Internal M.2 single-sided/double-sided module (depending on model implementation)

How to use

Power off the computer and disconnect it from mains before installation. Open the system chassis or laptop service cover, locate the M.2 2280 slot on the motherboard, and remove any securing screw. Insert the SSD into the slot at a slight angle until fully seated, then press down and secure it with the screw. Reassemble the device, power it on and enter the system firmware or operating system disk management tools to initialise, partition and format the drive if required. When using as a boot drive, install the operating system to the SSD following standard installation procedures.

Recommendations

For optimal performance, enable PCIe 4.0 support in the motherboard firmware when available and use NVMe-capable drivers. Maintain updated firmware for the SSD if manufacturer updates are provided. Avoid filling the drive to full capacity; leaving free space improves sustained performance and write amplification. Use standard backup solutions to protect important data.
