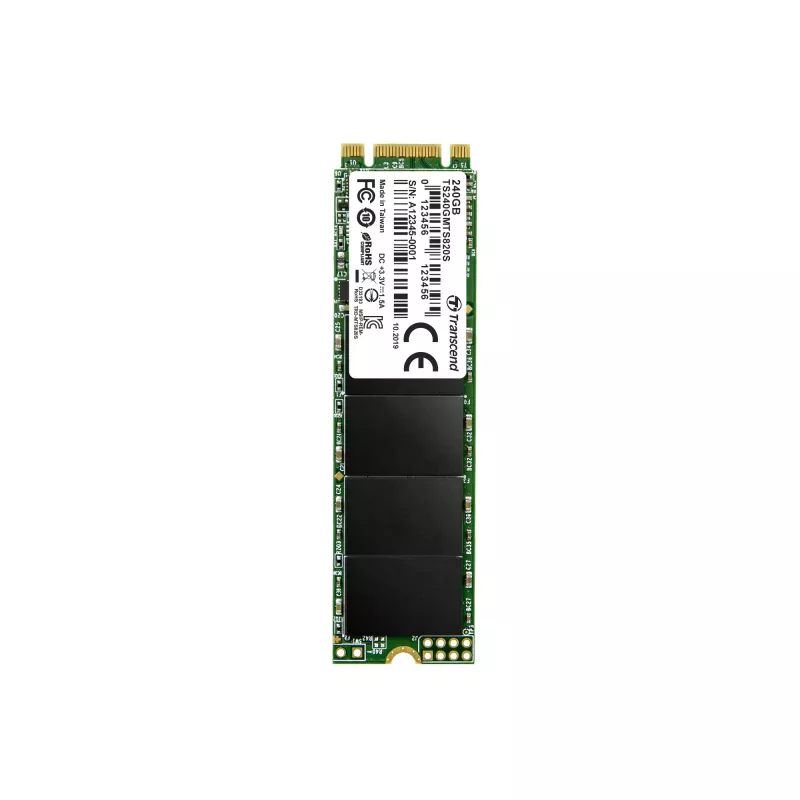

SSD Transcend 240 GB M.2 6 Gbit/s TS240GMTS820S

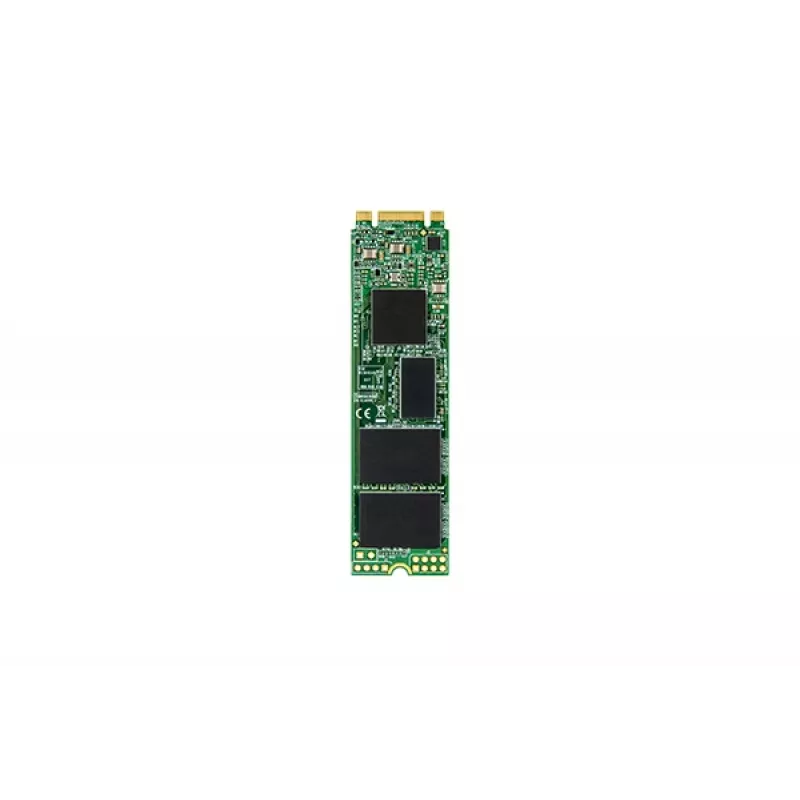

Transcend M.2 SSD 820S is an ultra-compact SATA III 6Gb/s solid‑state drive designed for small form factor devices such as Ultrabooks and thin, light notebooks. Using 3D NAND flash and optimized firmware, the M.2 820S delivers reliable storage in an M.2 2242/2280 form factor with a length of 80 mm for easy integration and upgrade.

Advantages

3D NAND architecture increases density, endurance and overall performance compared with planar NAND. The drive supports the M.2 80 mm standard and the SATA III 6Gb/s interface, providing high sustained read and write speeds and reduced boot times when used as a cache. Built‑in features such as SLC caching, a RAID engine and LDPC error correction improve performance and data integrity. The compact M.2 format offers larger capacities in a smaller footprint suitable for ultrabooks and lightweight notebooks.

Key specifications

• Interface: SATA III 6Gb/s (M.2)
• Form factor: M.2 2242 / 2280 (80 mm)
• Flash type: 3D NAND
• Maximum sequential read speed: up to 550 MB/s
• Maximum sequential write speed: up to 500 MB/s
• 4K random performance: up to 75,000 IOPS
• Features: SLC caching, RAID engine, LDPC error correction
• Software: Transcend SSD Scope for drive health and optimization

How to use

Install the M.2 SSD 820S into the compatible M.2 slot on your Ultrabook or notebook, secure it with the mounting screw, and enable the drive in the system BIOS if necessary. Use the SATA III interface and compatible host controller for optimal performance. Install Transcend SSD Scope software to monitor drive health, update firmware and perform maintenance tasks such as secure erase or optimization.
