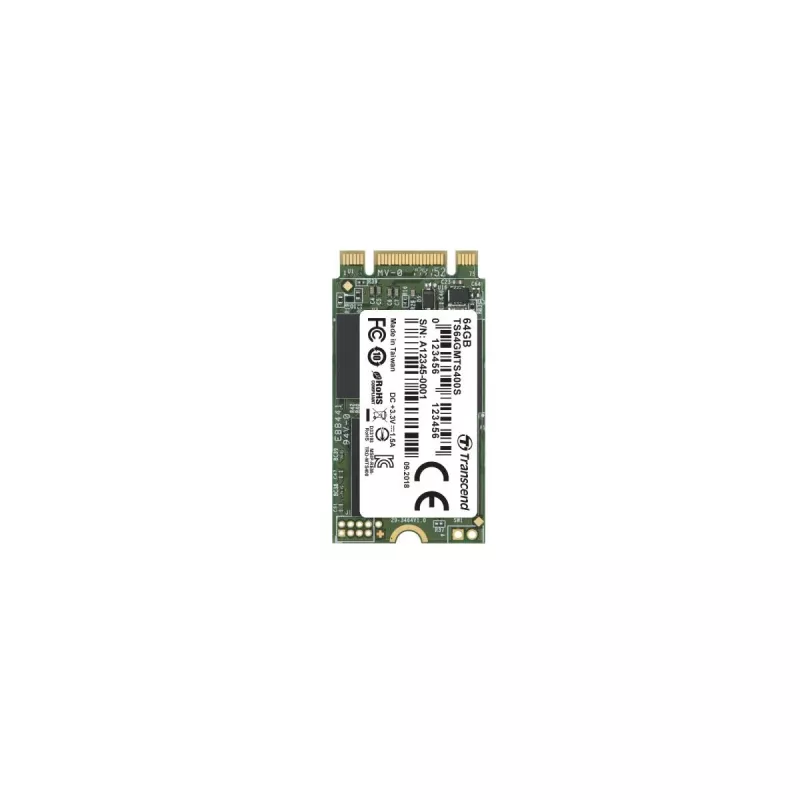

SSD TRANSCEND Mts400s 64GB M.2 2242 SATA III 6Gb/s MLC

Transcend's SATA III 6Gb/s M.2 SSD 400S boasts ultra compact dimensions to address the high performance needs and strict size limitations of small form factor devices, best suited for Ultrabooks and thin, light notebooks. Featuring a powerful controller, exceptional transfer speeds, and MLC NAND flash memory, the M.2 SSD 400S easily handles everyday computing tasks as well as demanding multimedia applications, delivering steadfast reliability.

MLC NAND flash inside
Transcend's M.2 SSD 400S is manufactured with reliable, top-tier MLC NAND flash memory to ensure superior stability and endurance, making it well-suited to high-end applications.

Perfect for your Ultrabook
Compliant with all M.2 form factors from Type 2242, 2260, to 2280, Transcend's MLC M.2 SSDs are perfect for use in Ultrabooks and lightweight notebooks. Measured at just 42mm in length, the M.2 SSD 400S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.

Superior transfer speeds
Featuring the M.2 standard (42mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 400S reaches incredible read and write speeds of up to 530MB/s and 400MB/s. When used as a cache, the M.2 SSD 400S provides 1.5 times faster boot time than conventional hard drives.

Trusted endurance. Steadfast reliability.
Transcend's M.2 SSD 400S offers great Terabytes Written (TBW) values (up to 740 TBW) indicating the total amount of data you can write into the drive over its lifetime. You can count on the drive to stay reliable even under an intensive workload.

Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs.

Potent and feature-laden

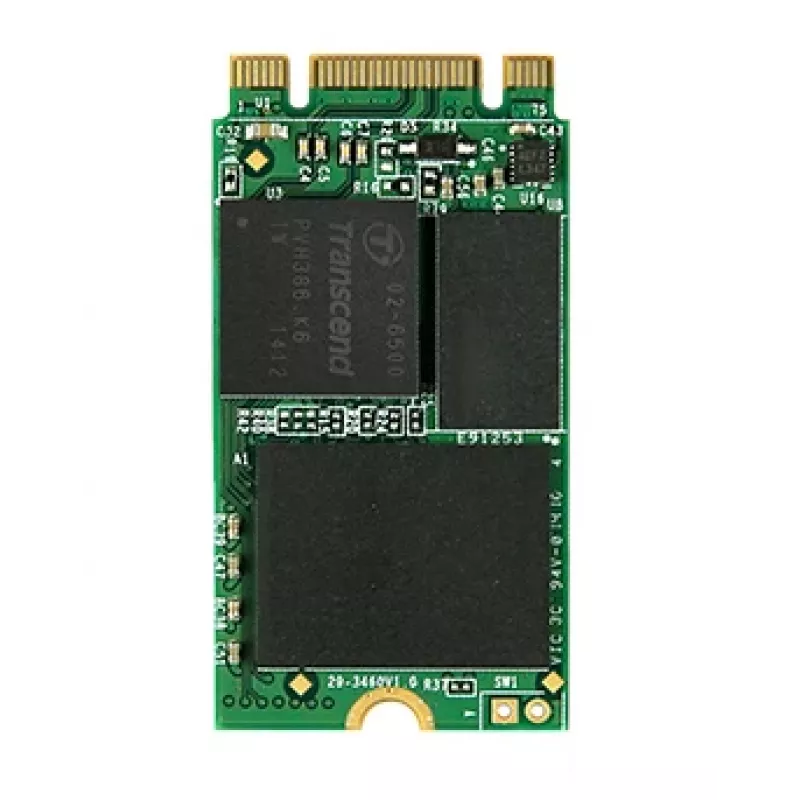

Despite its extra-small dimensions, the M.2 SSD 400S boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.

Error Correcting Code (ECC)
Detects and corrects transfer errors to prevent data corruption

Garbage Collection
Relocates existing data to release memory blocks

Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan

DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times

DevSleep
Intelligently shuts down SATA interface when not in use to prolong device's battery life

SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

How to use

Power down your laptop or device and disconnect it from power. Locate the M.2 socket on the motherboard (Type 2242) and remove any securing screw. Align the M.2 SSD 400S with the M key/notch and insert it into the slot at a slight angle, then press down and secure it with the mounting screw. Reassemble the device, power on, and enter the BIOS/UEFI to confirm the SSD is recognized. Initialize, partition and format the drive in your operating system, or use cloning software to transfer an existing system image. Install Transcend SSD Scope to monitor drive health and update firmware if needed.

Recommendations

Use the TS64GMTS400S as a primary system drive in Ultrabooks or as a cache/boot drive in compact systems. Enable DevSleep in supported systems to save battery life, and run periodic health checks with Transcend SSD Scope. For best long-term endurance, avoid filling the drive to maximum capacity and keep firmware up to date.
