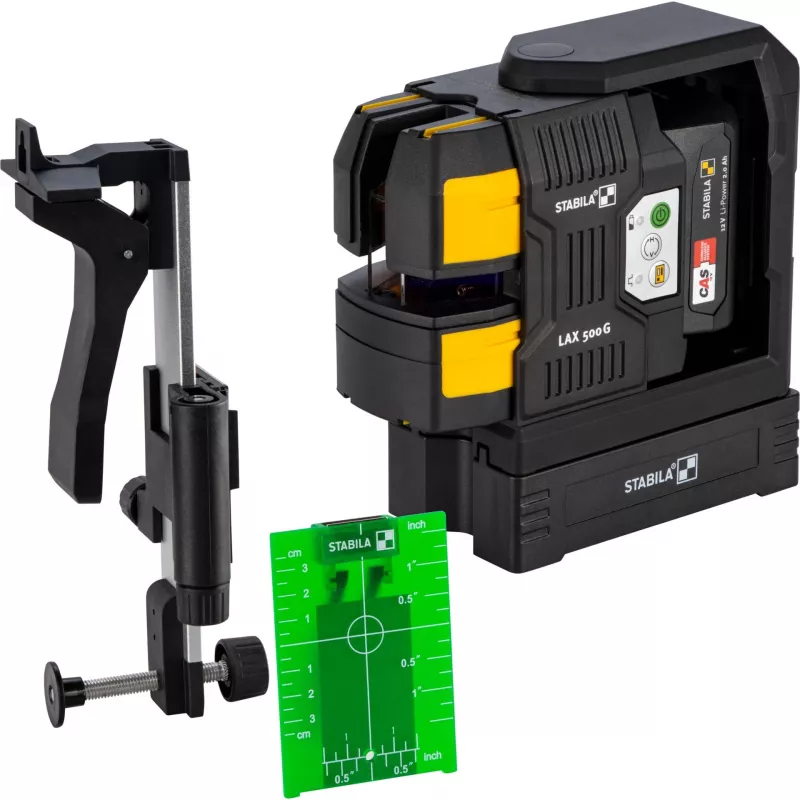

STABILA LAX 500 G Láser de líneas cruzadas 12V System Plus punto de plomada

The STABILA LAX 500 G is a professional-grade cross-line laser with plumb points, part of the STABILA 12V battery system. It projects one horizontal and one vertical line, plus two plumb points (up and down), for precise alignment and transfer of points. With self-levelling range of ±4.5° and levelling accuracy of ±0.3 mm/m (lines) and ±0.4 mm/m (plumb points), it ensures reliable results on job sites. The red laser (635 nm, Class 2) has a working range of 30 m (visible) and up to 80 m with a receiver. Powered by a STABILA 12V Li-ion battery (2.0 Ah, up to 15 hours runtime), it offers flexibility and long operation. IP54 protection class and operating temperature from -10°C to +50°C make it suitable for demanding environments. Mounting options include integrated magnets, V-groove, keyhole opening, and strap guide. Tripod thread: 1/4" and 5/8".

Advantages

Integrated into the STABILA 12V battery system, the LAX 500 G offers cordless freedom and compatibility with other tools. The self-levelling pendulum ensures quick setup, while the dual tripod thread and multiple mounting options provide versatility. The IP54 rating protects against dust and splashes, enhancing durability on construction sites.

Suitable for

• Interior and exterior construction alignment
• Installing ceilings, walls, and partitions
• Transferring points for plumbing and electrical work
• Tile and flooring layout

Key specifications

• Laser Class: Class 2 (635 nm, red)
• Levelling Accuracy: ±0.3 mm/m (lines), ±0.4 mm/m (plumb points)
• Self-Levelling Range: ±4.5°
• Working Range: 30 m (visible), 80 m (with receiver)
• Number of Laser Lines: 2 (1 horizontal, 1 vertical)
• Number of Plumb Points: 2 (up, down)
• Power Source: STABILA 12V Li-ion battery (2.0 Ah)
• Battery Life: Up to 15 hours
• Tripod Thread: 1/4" and 5/8"
• Protection Class: IP54
• Operating Temperature: -10°C to +50°C
• Mounting Options: Integrated magnets, V-groove, keyhole opening, strap guide

Recommendations

For optimal performance, use with STABILA 12V batteries and chargers. The LAX 500 G is ideal for professionals requiring accurate line and point alignment in a rugged, cordless package.
