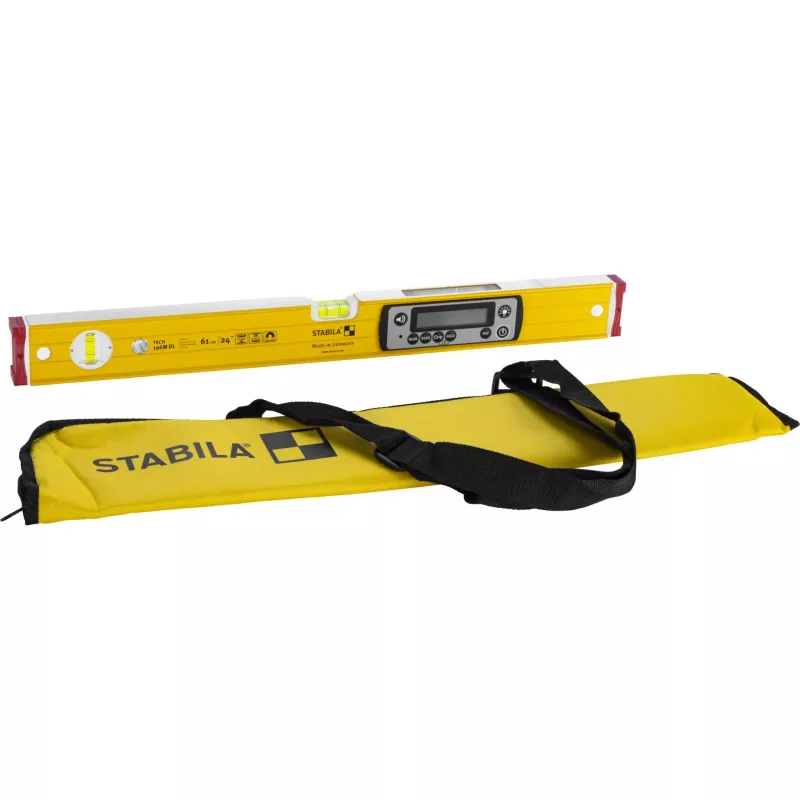

STABILA TECH 196M DL Nivel de burbuja digital, 61 cm

The STABILA TECH 196M DL is a high-precision digital spirit level designed for professional tradespeople. With a 61 cm length and an electronic module accuracy of ±0.05° at 0° and 90°, it ensures reliable measurements in both normal and inverted positions. The illuminated digital display provides clear readings in various units, while the IP65 protection class guarantees durability in harsh job site conditions.

Advantages

Exceptional accuracy of ±0.5 mm/m in normal and inverted positions, combined with a robust rectangular profile with reinforcing ribs for long-lasting performance. The shock-absorbing, removable end caps protect the level from drops, and the audible guidance feature at 0° and 90° speeds up alignment tasks.

Suitable for

• Construction and renovation projects requiring precise leveling and angle measurement
• Installation of cabinets, shelves, and fixtures
• Surveying and layout work

Key specifications

• Length: 61 cm (24 inches)
• Measurement Accuracy (Normal/Inverted): ±0.5 mm/m
• Electronic Module Accuracy (0° and 90°): ±0.05°
• Electronic Module Accuracy (1° to 89°): ±0.2°
• Measurement Units: °, %, mm/m, in/ft (decimal and fractional)
• Display: Digital, illuminated
• Vials: 2 (1 horizontal, 1 vertical)
• Protection Class: IP65
• Power Source: 2 x AA batteries (battery life approx. 150 hours)
• Functions: HOLD, REF, Angle transfer, Audible guidance
• Measuring Surfaces: 2 milled surfaces
• Profile: Rectangular with reinforcing ribs
• End Caps: Shock-absorbing, removable
• Operating Temperature: -10°C to +50°C

Recommendations

For best results, use with STABILA tripods and accessories. Always calibrate before critical measurements.
