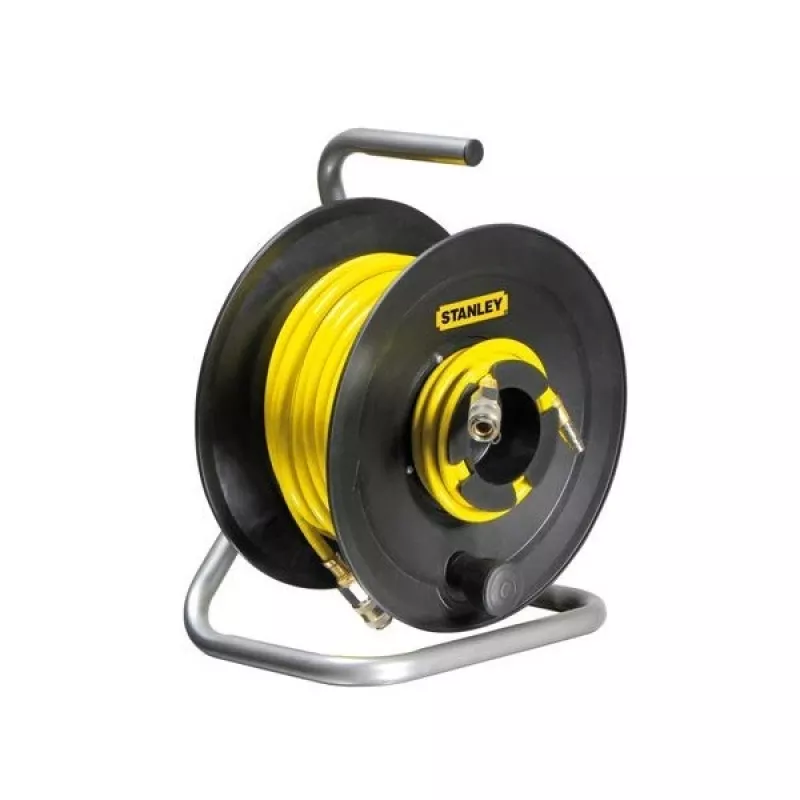

STANLEY Enrollador de manguera de aire comprimido 20m 8x12mm rebobinado automático montaje en pared

The STANLEY Pneumatic Hose Reel is a high-quality, automatic rewind hose reel designed for professional and DIY use in workshops, garages, and industrial environments. Featuring a durable PVC hose with 8mm internal and 12mm external diameter, this 20-meter reel provides reliable compressed air delivery with a maximum working pressure of 15 bar (217 PSI) and burst pressure of 45 bar (652 PSI). The spring-loaded automatic rewind mechanism ensures safe and convenient hose storage, while the 180-degree swivel bracket allows flexible wall or ceiling mounting. Brass fittings with 1/4" BSP male connections on both inlet and outlet guarantee secure, leak-free operation. The polypropylene casing is impact-resistant, and the adjustable hose stop with automatic locking at desired length enhances usability. Ideal for air tools, inflation, and pneumatic systems.

Advantages

Automatic rewind saves time and reduces clutter. Wall/ceiling mountable design maximizes floor space. Durable PVC hose resists abrasion and kinking. Brass fittings provide corrosion resistance and long life. Adjustable hose lock allows you to set the working length. 180-degree swivel bracket enables flexible positioning.

Suitable for

• Compressed air supply for pneumatic tools (impact wrenches, nail guns, spray guns)
• Tire inflation and air blow guns
• Workshops, garages, and industrial maintenance areas
• DIY enthusiasts and professional tradespeople

Key specifications

• Hose Length: 20 m
• Hose Internal Diameter: 8 mm
• Hose External Diameter: 12 mm
• Hose Material: PVC (Polyvinyl Chloride)
• Max Working Pressure: 15 bar (217 PSI)
• Burst Pressure: 45 bar (652 PSI)
• Inlet Connection: 1/4" BSP Male
• Outlet Connection: 1/4" BSP Male
• Reel Type: Automatic Rewind (Spring-loaded)
• Reel Casing Material: Polypropylene (PP)
• Mounting Type: Wall/Ceiling Mountable
• Swivel Bracket: Yes, 180-degree swivel
• Operating Temperature Range: -5°C to +45°C
• Hose Color: Blue
• Hose Stop: Adjustable
• Locking Mechanism: Automatic hose lock at desired length
• Fittings Material: Brass

Recommendations

For optimal performance, mount the reel securely on a wall or ceiling using appropriate fixings (not included). Ensure the air supply is regulated to within the maximum working pressure. Periodically check fittings for tightness and hose for wear. This reel is not suitable for water or other liquids.
