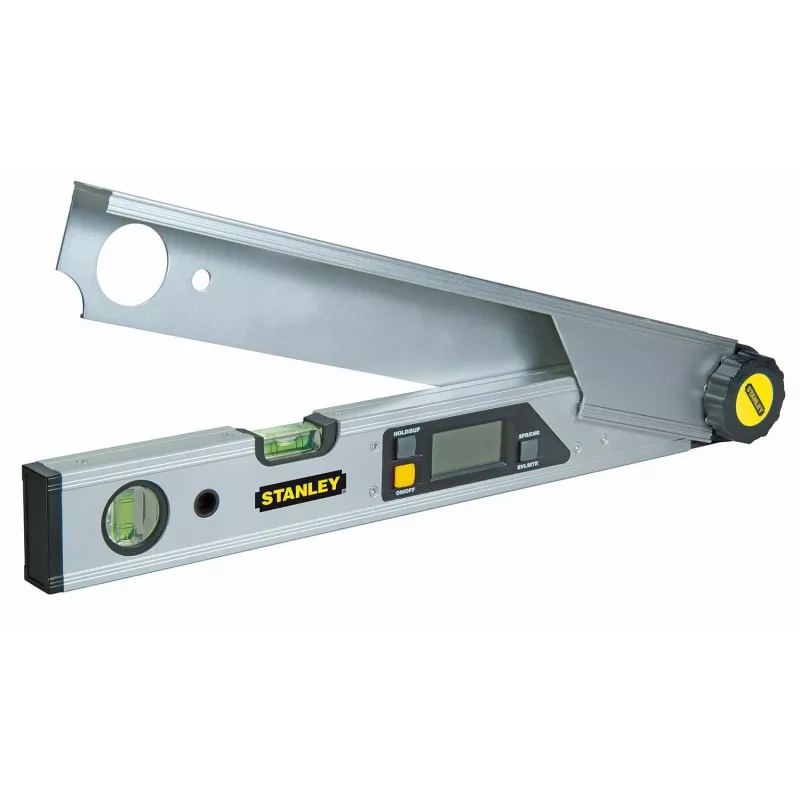

STANLEY Escuadra digital con visualización electrónica 250 mm

The STANLEY angle bracket with electronic readout combines a sturdy aluminum arm with a precise digital display, making it a reliable choice for carpenters, tilers, and metalworkers who need exact angle measurements on the job. Unlike a traditional protractor, this tool locks the angle in place with a dedicated knob and holds the reading on screen, so you can transfer the measurement without losing precision.

Highlights

• Digital LCD readout with ±0.1° accuracy and 0.1° resolution
• Measures 0–220° in degrees, percent, mm/m, and in/ft
• Hold function and zeroing at any position for flexible reference points
• Aluminum body with 250 mm arm and angle lock for repeatable cuts
• Auto shut-off after 5 minutes to preserve the 9V battery

In daily use

The large digital display is easy to read even in dim workshop lighting, and the low battery indicator warns you before the tool goes dead. Because the arm is made of aluminum, it stays light enough for one-handed operation while remaining rigid during layout work. The zeroing function lets you set a relative reference on angled surfaces, which is especially useful when matching existing bevels or checking roof pitches.

Full specifications

• Measurement range: 0–220°
• Accuracy: ±0.1°
• Resolution: 0.1°
• Display: Digital LCD
• Power source: 1 x 9V battery
• Auto shut-off: Yes (after 5 minutes)
• Hold function: Yes
• Material: Aluminum body
• Arm length: 250 mm
• Measurement units: Degrees (°), percent (%), mm/m, in/ft
• Zeroing function: Yes (at any position)
• Low battery indicator: Yes
• Angle lock: Yes (locking knob)
• Included accessories: 9V battery

Final note

With its locking mechanism and multi-unit display, this bracket is a practical upgrade for anyone who regularly transfers angles from plans to workpieces.
