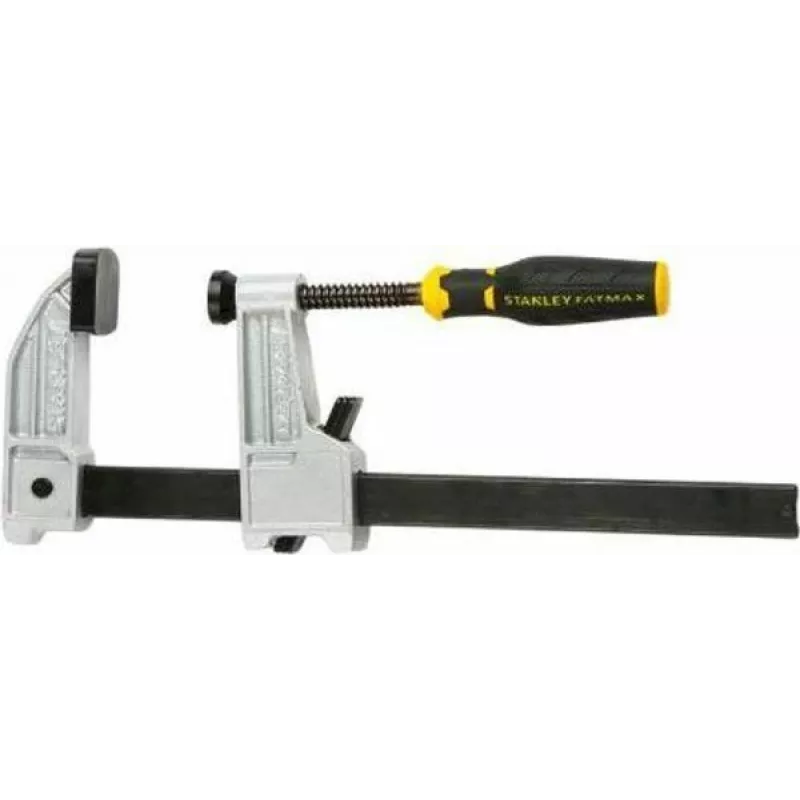

STANLEY FatMax Abrazadera en F 800mm Mordaza de apriete rápido de una mano para cargas pesadas

Large workpieces demand a clamp that won't flex or slip under pressure. The STANLEY FatMax F-Clamp 800mm answers with a massive 250 kg clamping force and a deep 120 mm throat, keeping panels, frames, and assemblies rock-solid during gluing, assembly, or welding. Its heat-treated steel bar and cast iron jaws are built for daily professional use, while the quick-release screw allows fast, one-handed repositioning.

Who is it for

Carpenters, cabinet makers, metal fabricators, and serious DIYers who regularly handle large panels, frames, or assemblies will find this clamp indispensable. If you need reliable, high-pressure clamping without flex or slipping, the FatMax F-Clamp is engineered for you.

Main features

• Clamping capacity: 800 mm – handles large workpieces with ease.
• Throat depth: 120 mm – reaches deep into panels and frames.
• Clamping force: 250 kg (2500 N) – holds work securely under pressure.
• Bar: heat-treated steel, 29 x 9 mm – resists bending and twisting.
• Jaws: cast iron with removable, non-marring pads – protects surfaces from damage.
• Screw: cold-rolled steel with Acme thread – smooth, durable operation.
• Quick-release mechanism – saves time when repositioning.
• Ergonomic bi-material handle – comfortable grip, even with heavy force.
• Finish: powder-coated bar and nickel-plated screw – corrosion resistant.

Specifications

• Product type: F-Clamp (Bar Clamp)
• Series: FatMax
• Clamping capacity: 800 mm
• Throat depth: 120 mm
• Clamping force: 250 kg (2500 N)
• Bar material: Heat-treated steel
• Bar dimensions: 29 x 9 mm
• Jaw material: Cast iron
• Handle type: Bi-material ergonomic
• Jaw pads: Removable, non-marring
• Screw type: Cold-rolled steel, Acme thread
• Release mechanism: Quick-release screw
• Finish: Powder-coated bar, nickel-plated screw
• Construction: Heavy-duty
• Application: Woodworking, metalworking, general assembly

Tips

For best results, position the clamp perpendicular to the joint and apply even pressure. The non-marring jaw pads protect delicate surfaces, but for extra safety on soft woods, use scrap wood between the jaws and the workpiece. Regularly clean the screw thread and lightly oil it to maintain smooth operation.
