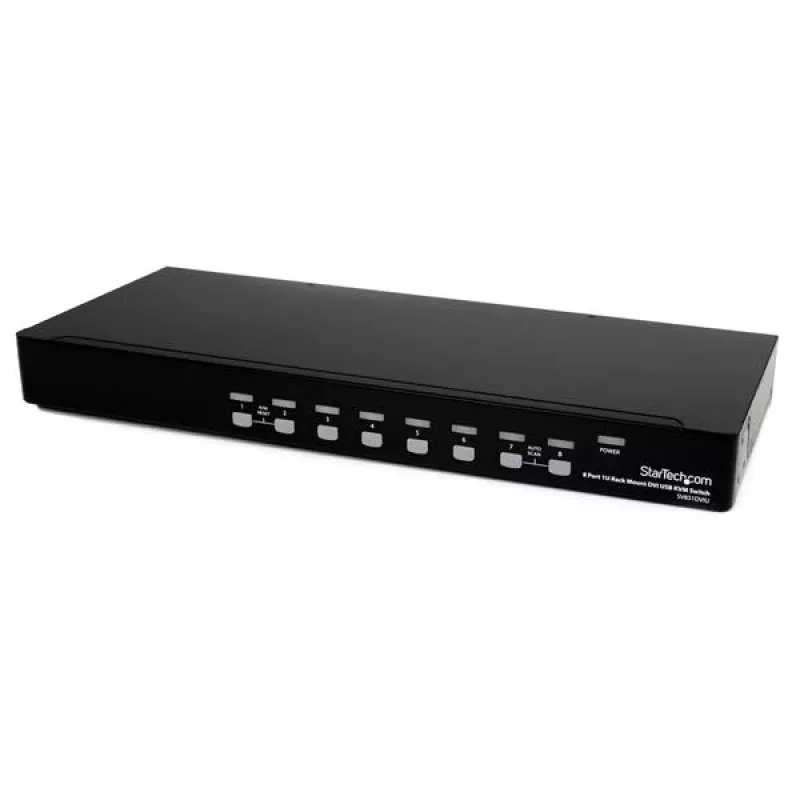

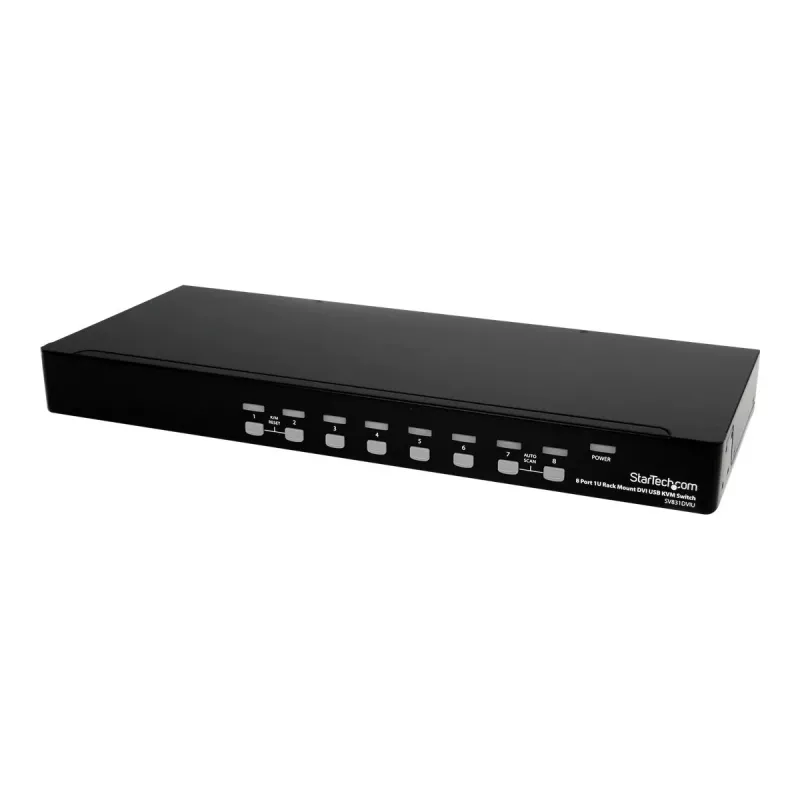

StarTech.com 8 Port 1U DVI USB KVM Switch - Switch DVI-I / USB-B de 8 puertos para montaje en rack

The StarTech.com SV831DVIU is a high-performance 8-port DVI USB KVM switch designed for rack mounting in 1U of space. It allows you to control up to 8 computers from a single DVI monitor, USB keyboard, and mouse, with integrated audio support. This KVM switch supports both digital and analog video via DVI-I connectors, delivering resolutions up to 1920x1200 digital and 2048x1536 analog. With USB 2.0 peripheral sharing and 2-channel stereo audio, it is ideal for server rooms, data centers, and professional IT environments.

Advantages

Efficiently manage multiple servers or workstations without the clutter of multiple keyboards, monitors, and mice. The rack-mountable design saves valuable space, while the combination of DVI-I video, USB 2.0, and audio support ensures compatibility with a wide range of equipment. On-Screen Display (OSD), hot-key, and push-button port selection provide flexible control.

Suitable for

• IT professionals managing multiple servers in a rack
• Data centers requiring centralized control
• Broadcast studios and control rooms
• Any environment where space and efficiency are critical

Key specifications

• Number of KVM Ports: 8
• Console Video Interface: 1x DVI-I
• Console Peripheral Interface: 2x USB Type-A (Keyboard/Mouse)
• Console Audio Interface: 2x 3.5mm Audio (Speaker/Microphone)

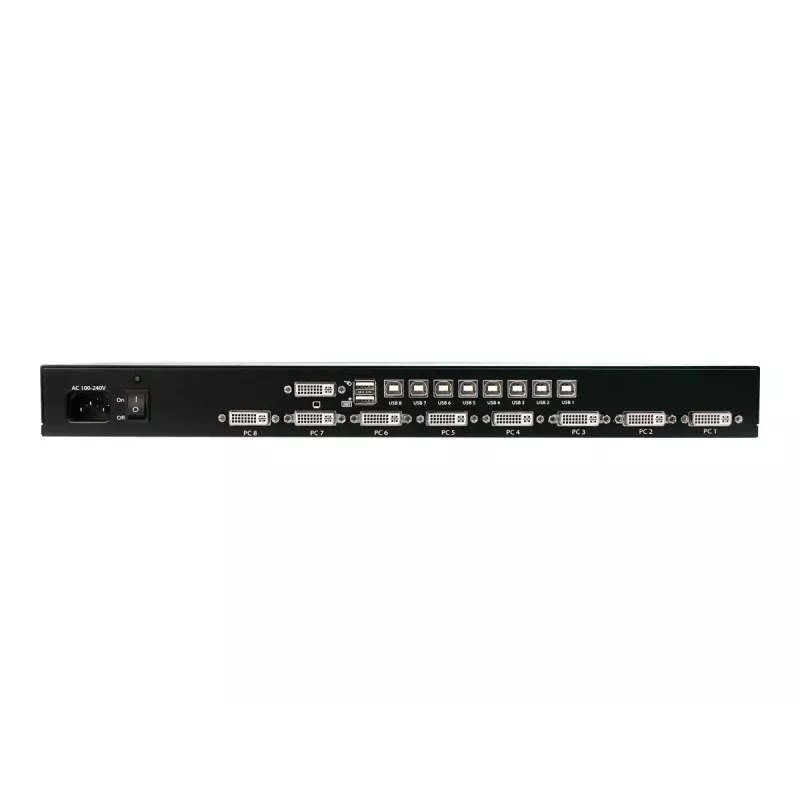

• PC Video Connectors: 8x DVI-I
• PC Peripheral Connectors: 8x USB Type-B
• PC Audio Connectors: 16x 3.5mm Audio (8x Speaker, 8x Microphone)
• Max Digital Resolution: 1920x1200
• Max Analog Resolution: 2048x1536
• Video Standard: DVI-I (Digital & Analog)
• USB Standard: USB 2.0
• Audio Support: Yes (2-channel stereo audio and microphone)

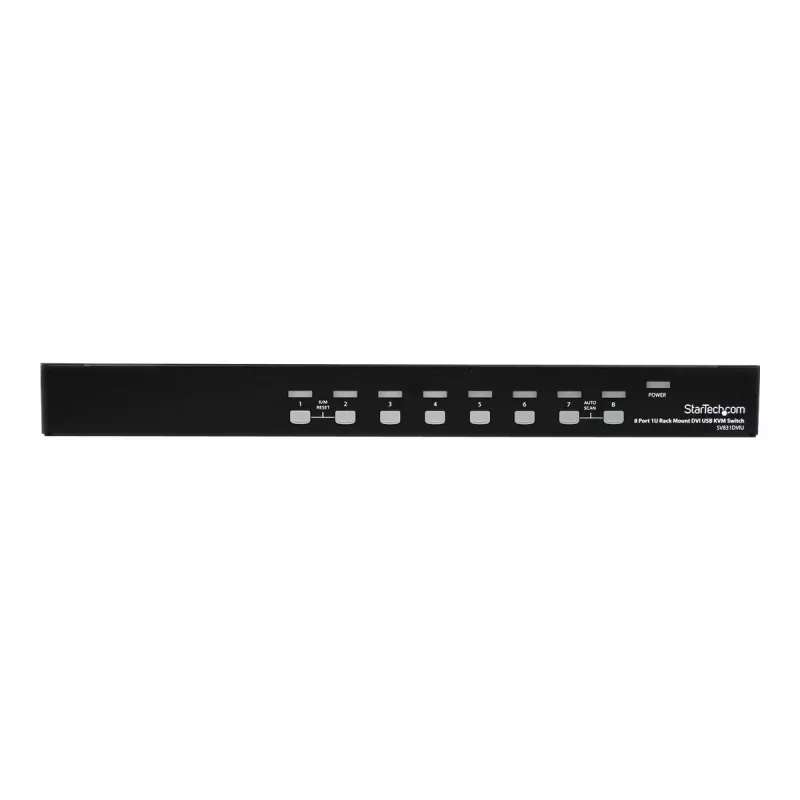

• Port Selection Method: Push Button, Hot-Key, OSD
• Rack-Mountable: Yes (1U)
• Housing Material: Steel
• Color: Black
• OS Compatibility: OS Independent

Recommendations

For optimal performance, use high-quality DVI and USB cables. This KVM switch is compatible with all major operating systems and requires no additional software drivers.
