StarTech.com Tapón loopback MPO monomodo - Conforme TAA

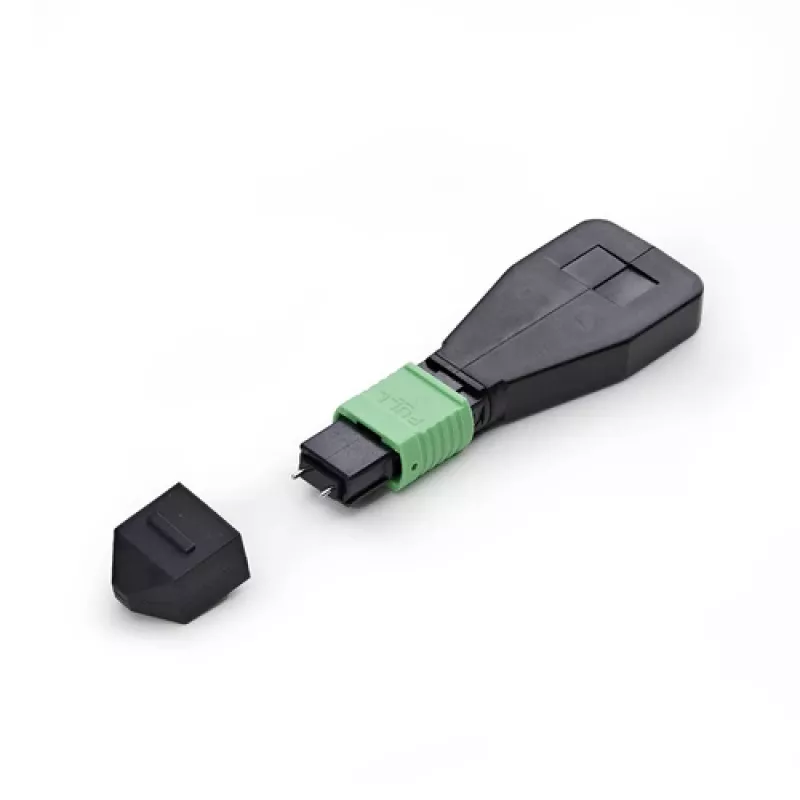

The StarTech.com Single Mode MPO Loopback Plug (LOOPBACKMTPSM9125M) is a high-quality, TAA-compliant loopback adapter designed for network testing, transceiver testing, and data center applications. This MPO/MTP male loopback plug features a 12-fiber single mode OS2 configuration with APC (Angled Physical Contact) ferrule, ensuring low insertion loss (≤0.35 dB) and high return loss (≥50 dB). It supports wavelengths of 1310nm and 1550nm, making it ideal for telecommunications and enterprise networks.

Advantages

This loopback plug simplifies testing by providing a compact, reliable loopback path for MPO/MTP interfaces. Its durable high-grade plastic housing withstands over 500 mating cycles, and the polarity Type B (cross-over) design ensures proper signal routing. Compliant with RoHS, TIA/EIA-604-5 (FOCIS 5), and IEC-61754-7 standards, it guarantees performance and reliability.

Suitable for

• Network testing and troubleshooting
• Transceiver and port testing
• Data center and telecommunications infrastructure
• Single mode fiber optic systems

Key specifications

• Connector Type: MPO/MTP Male (with pins)
• Fiber Type: Single Mode (OS2)
• Fiber Count: 12-Fiber (12 Channels)
• Ferrule Type: APC (Angled Physical Contact)
• Wavelength Support: 1310nm, 1550nm
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 50 dB
• Polarity: Type B (Cross-over)
• Fiber Core/Cladding Diameter: 9/125 µm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Durability: > 500 Mating Cycles
• Housing Material: High-grade Plastic (PBT)
• Compliance: RoHS, TIA/EIA-604-5 (FOCIS 5), IEC-61754-7
• Application: Network Testing, Transceiver Testing, Data Center, Telecommunications
• Connector Keying: Key-Up to Key-Down

Recommendations

For optimal performance, use with MPO/MTO female adapters and ensure proper cleaning before each use. This loopback plug is an essential tool for any network technician or data center professional.
