StarTech.com Tarjeta serie PCIe de 2 puertos, Tarjeta serie PCI Express dual puerto a RS232/RS422/RS485 (DB9), Soportes Low-Profile incluidos, 16C1050 UART, Windows/Linux, conforme TAA – Protección ESD Nivel 4

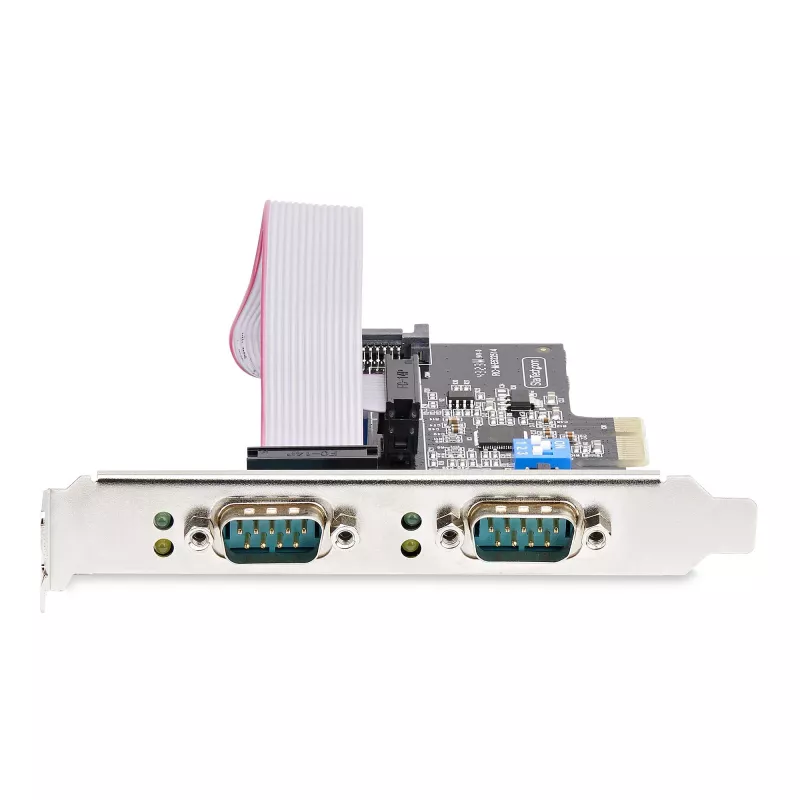

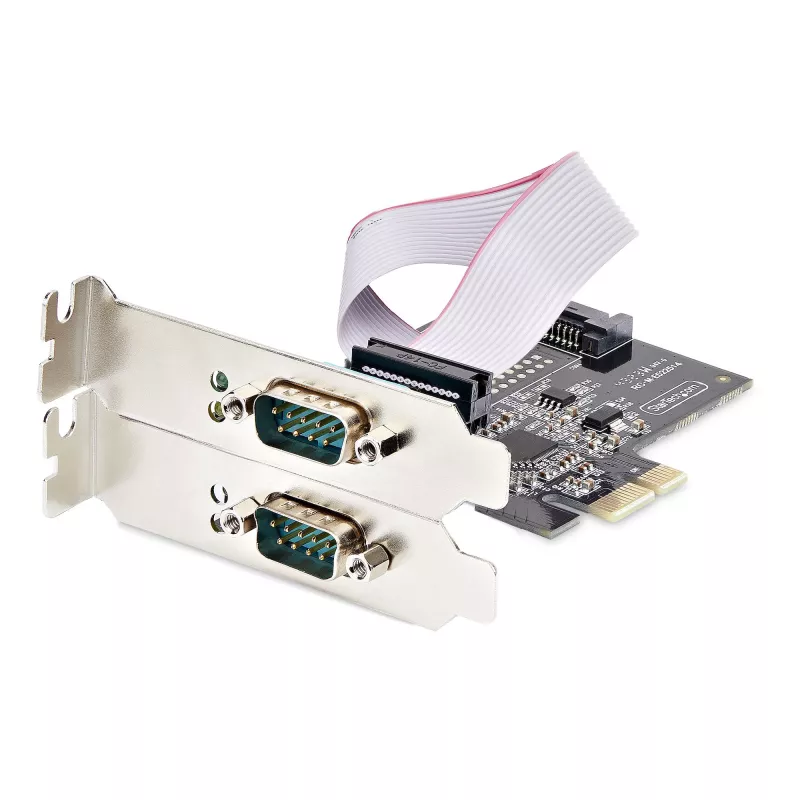

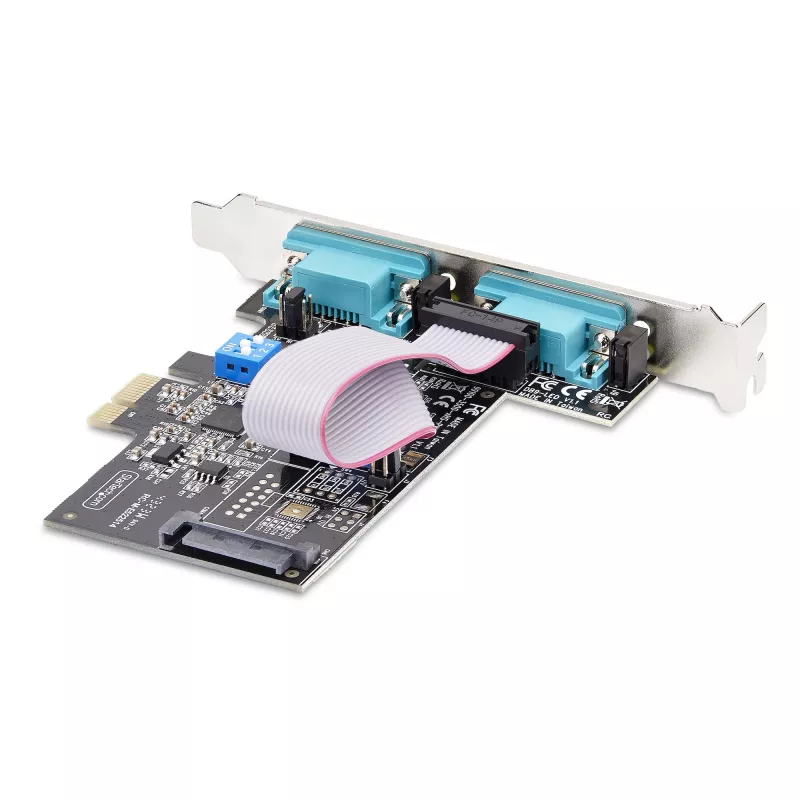

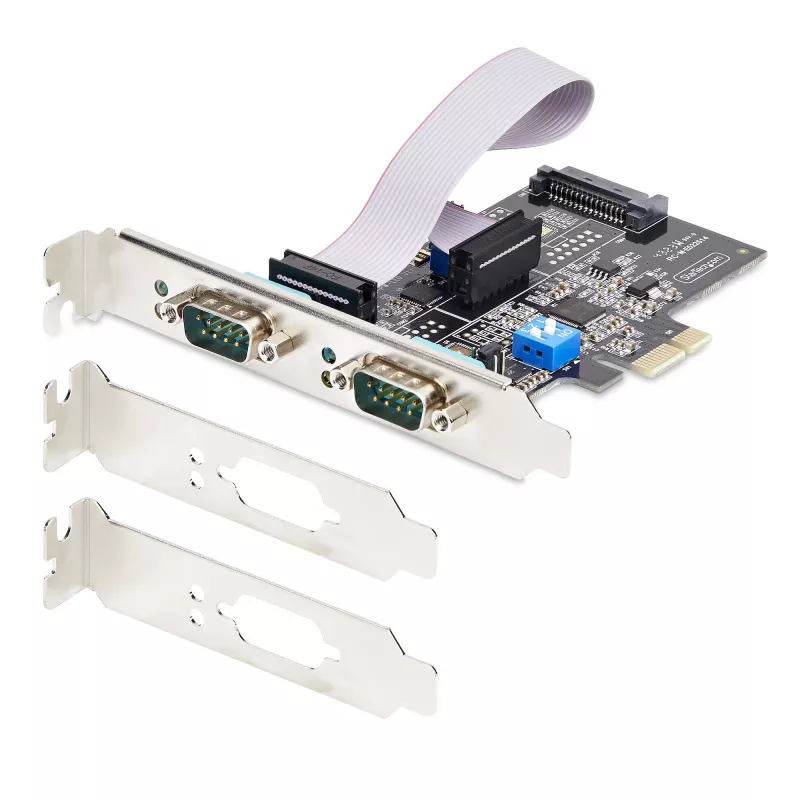

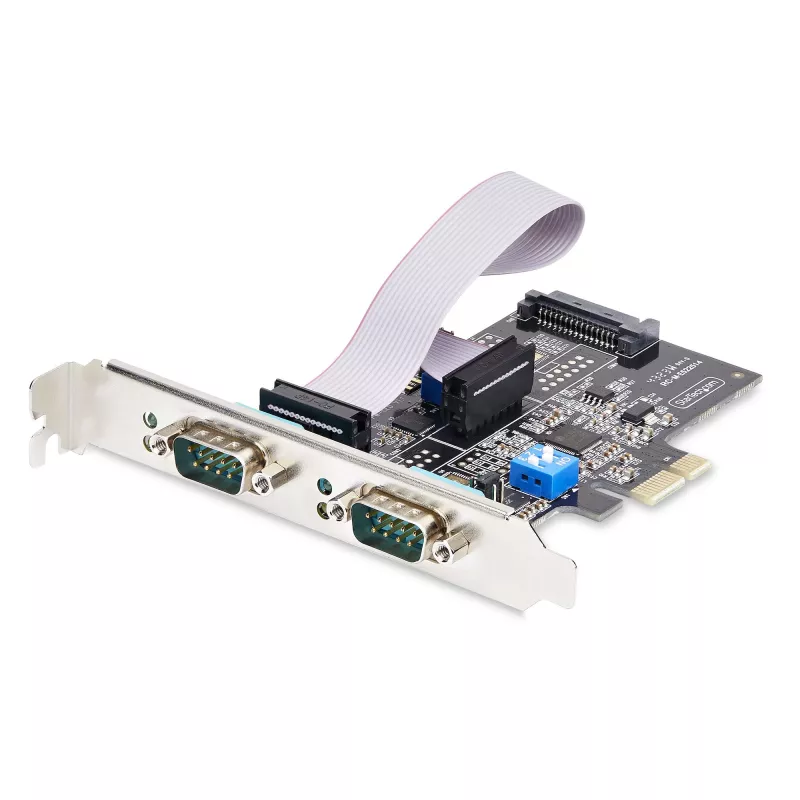

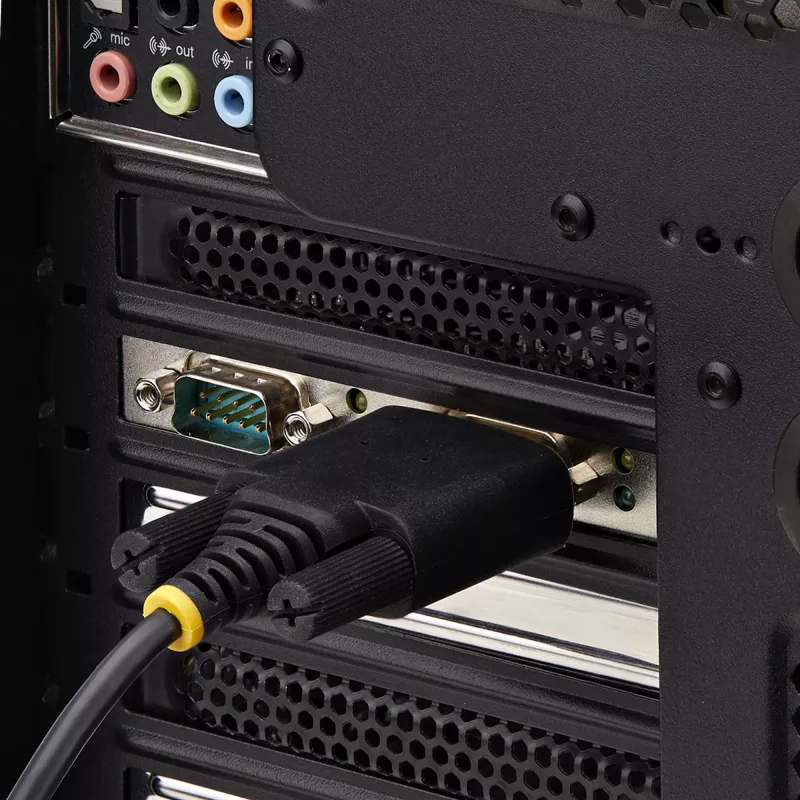

Add two RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.

Per-Port Serial Configuration

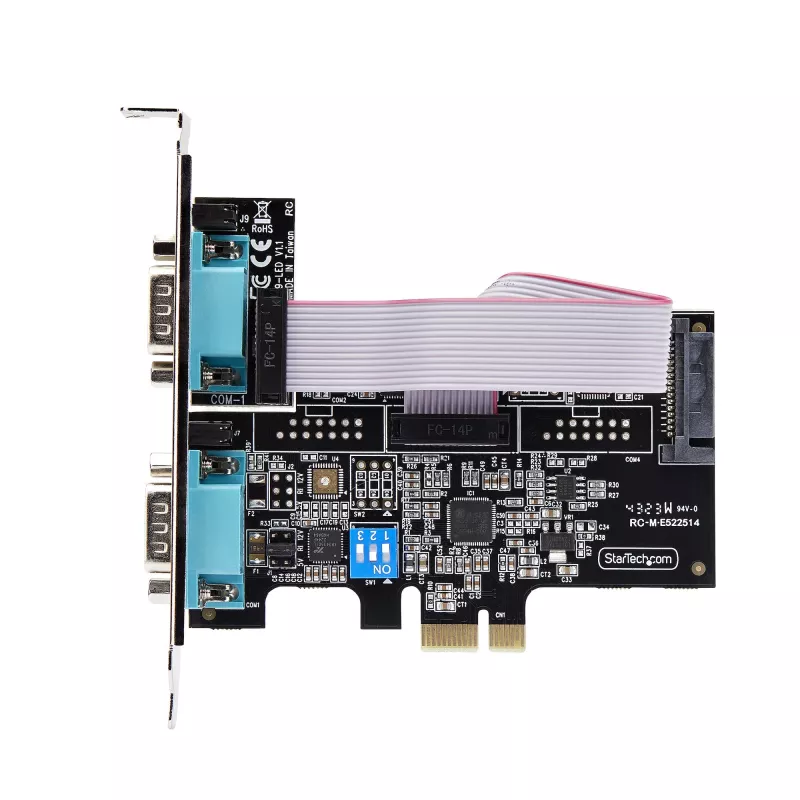

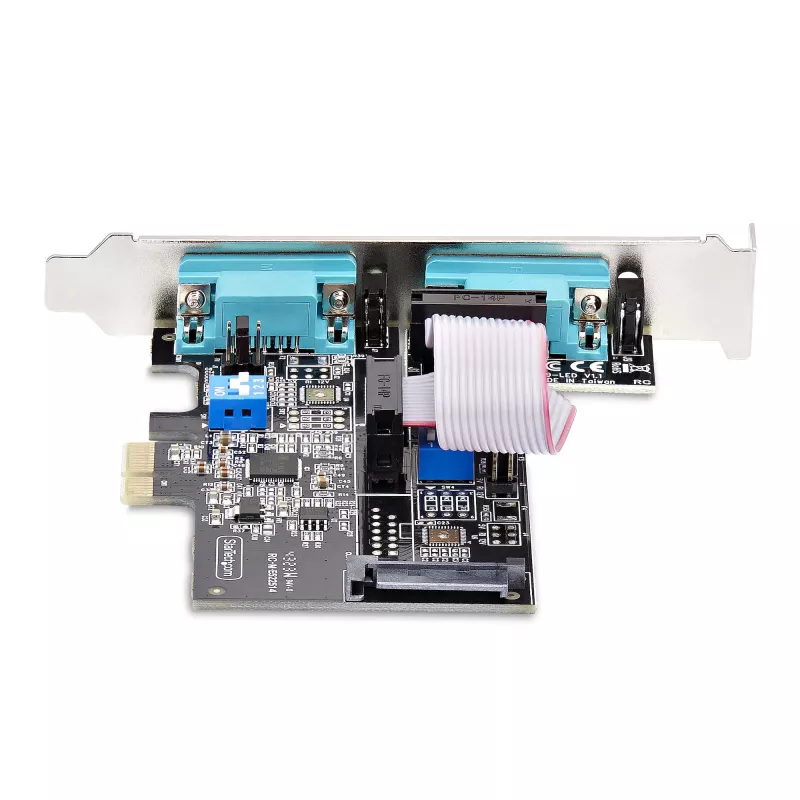

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

Configurable External SATA Power

The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.

Legacy Connectivity

This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).

The StarTech.com Advantage

StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA Compliant - Level-4 ESD Protection. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 2.0. Product colour: Black. Chipset: ASIX - AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11..., Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022. Width: 102 mm, Depth: 105 mm, Height: 16 mm
