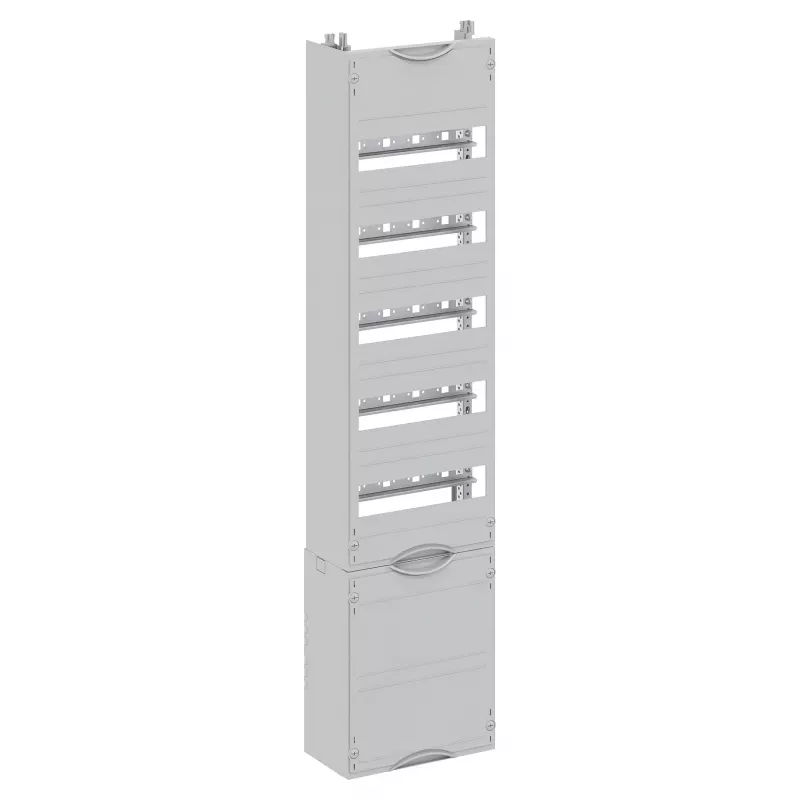

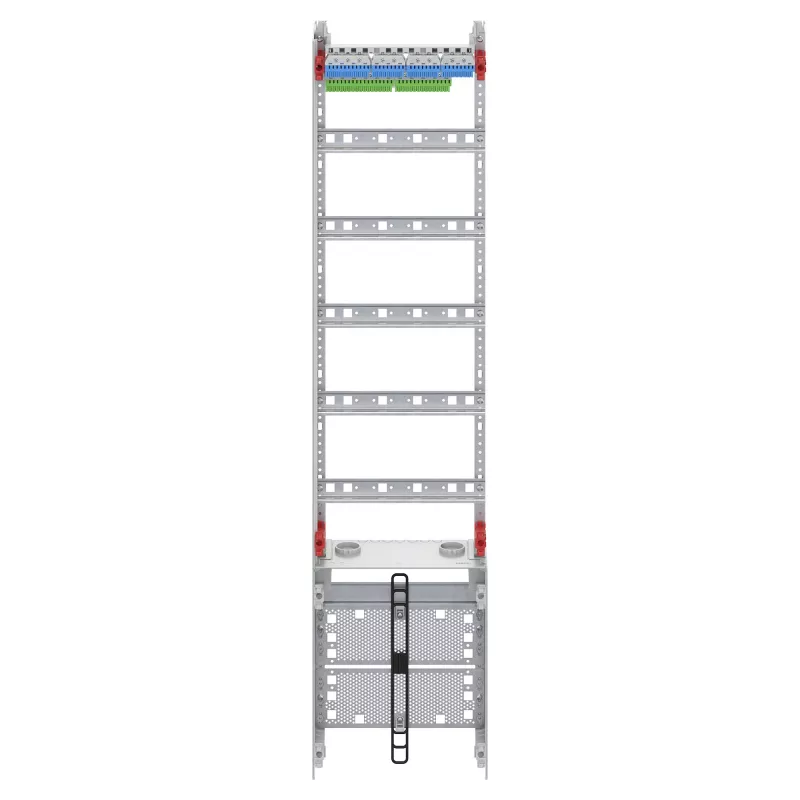

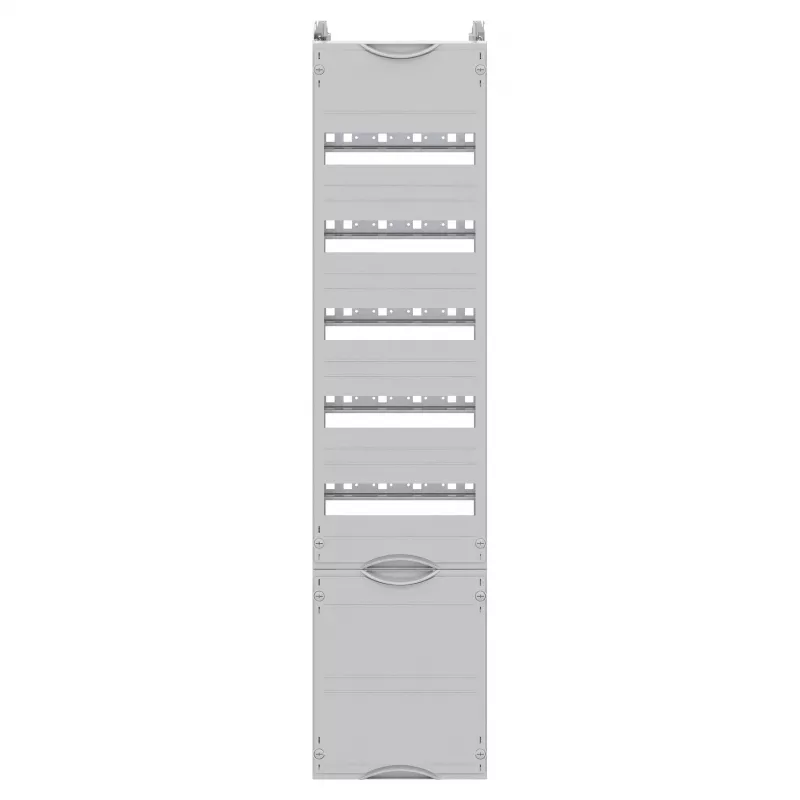

Striebel & John campo de distribución con espacio APZ 7 filas 84 TE RAL 9010 2CPX054007R9999

The Striebel & John Distribution Field with APZ Space (model 2CPX054007R9999) is a high-quality, pre-wired distribution board designed for main and sub-distribution in residential and commercial buildings. It features an integrated APZ space for smart meters and communication modules, ensuring future-proof metering solutions. With 7 rows and 12 module units per row (84 TE total), it offers ample capacity for circuit breakers, RCDs, and other DIN rail components. The enclosure is made of robust steel sheet with a pure white RAL 9010 finish, providing durability and a clean appearance. Rated for 400 V AC and up to 63 A, it supports 5-pole busbar systems and is compatible with eHZ meters. Compliant with DIN VDE 0603-1 and DIN 43870-1 standards, this distribution field is ideal for professional electrical installations.

Advantages

Integrated APZ space eliminates the need for additional enclosures for smart meters. Pre-wired design reduces installation time and errors. High-quality steel sheet construction ensures long-lasting performance. Generous 84 TE capacity allows flexible configuration of modular devices.

Suitable for

• Main distribution boards in residential buildings
• Sub-distribution in commercial facilities
• Metering applications with eHZ smart meters
• Integration of communication modules for energy management

Key specifications

• Product Type: Distribution Field with APZ Space
• Number of Rows: 7
• Module Units per Row: 12 TE
• Total Module Units: 84 TE
• Material: Steel Sheet
• Protection Class: IP31
• Colour: RAL 9010 (Pure White)
• Rated Voltage: 400 V AC
• Rated Current: Up to 63 A
• Busbar System: 5-pole
• Meter Compatibility: eHZ
• Number of Meter Places: 1
• Terminal Type: Screw Terminals
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

For optimal performance, use with Striebel & John compatible busbars and accessories. Ensure proper mounting in a suitable distribution cabinet with adequate ventilation. Consult local regulations for installation requirements.
