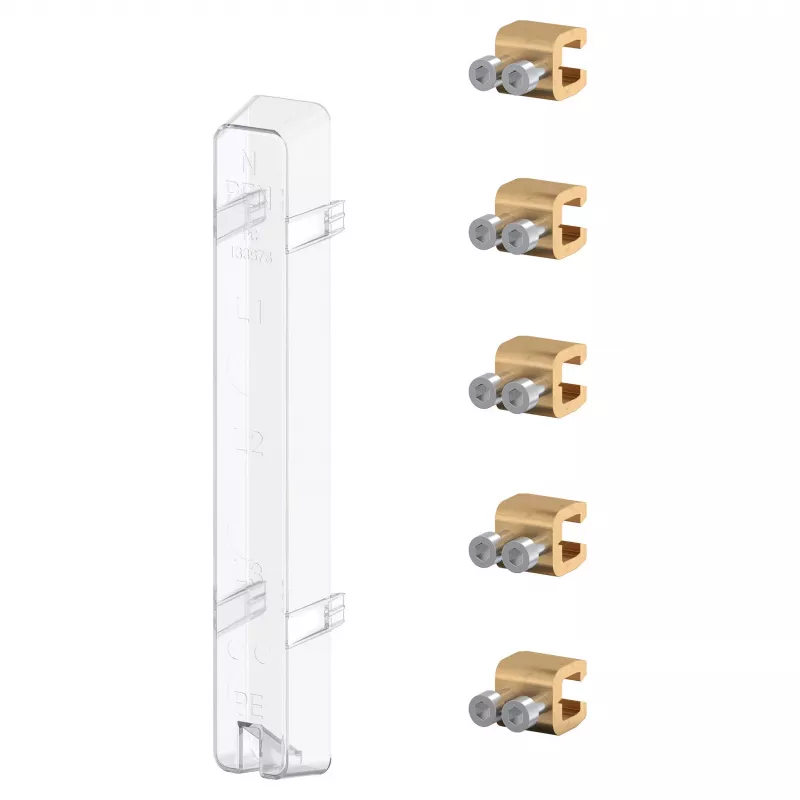

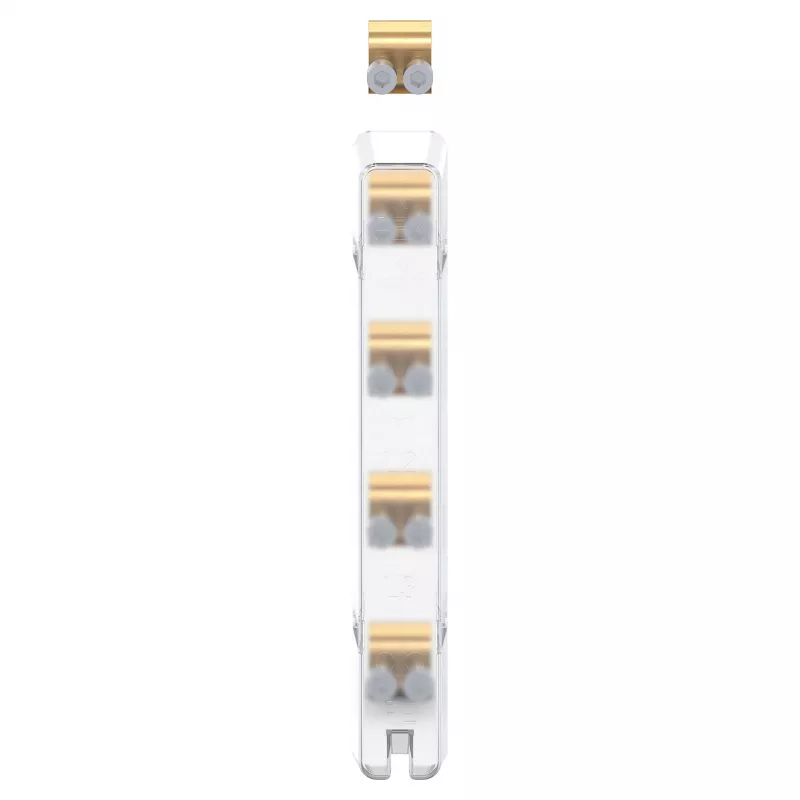

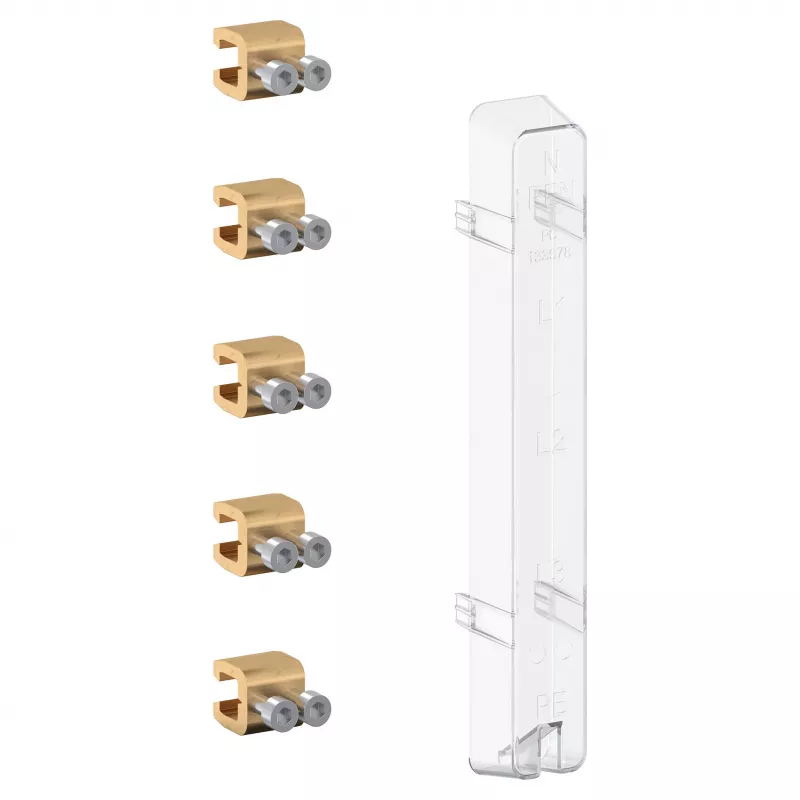

Striebel & John conector de barras colectoras ZCV255p 250A para ABB ComfortLine

The Striebel & John Busbar Connector ZCV255p is a high-quality accessory designed for use with ABB ComfortLine distribution boards. This 5-pole connector is rated for 250 A and ensures reliable power distribution within your electrical installation.

Advantages

Robust screw connection for secure and durable contact. Suitable for busbar dimensions from 12x5 mm to 30x10 mm with 60 mm spacing. Complies with IEC 61439-1 and IEC 61439-2 standards for safety and performance.

Suitable for

• ABB ComfortLine distribution boards
• Industrial and commercial power distribution systems
• Busbar connections requiring 250 A rated current

Key specifications

• Rated Current (Ie): 250 A
• Number of Poles: 5-pole
• System Compatibility: ABB ComfortLine
• Busbar Spacing: 60 mm
• Suitable Busbar Dimensions: 12-30 x 5-10 mm
• Rated Insulation Voltage (Ui): 1000 V AC
• Rated Operational Voltage (Ue): 690 V AC
• Rated Impulse Withstand Voltage (Uimp): 8 kV
• Rated Short-Circuit Withstand Current (Icw): 25 kA (1s)
• Connection Type: Screw connection
• Degree of Protection: IP00
• Standards: IEC 61439-1, IEC 61439-2
• Product Type: Busbar Connector
• Mounting Type: Internal (within enclosure)

Recommendations

Ensure compatibility with your specific distribution board model. Professional installation recommended.
