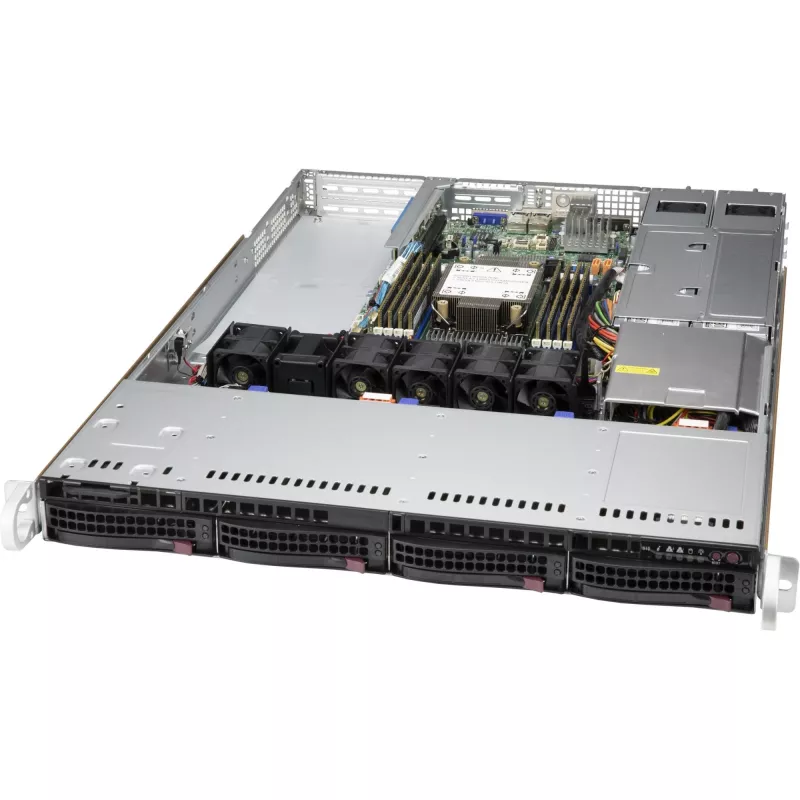

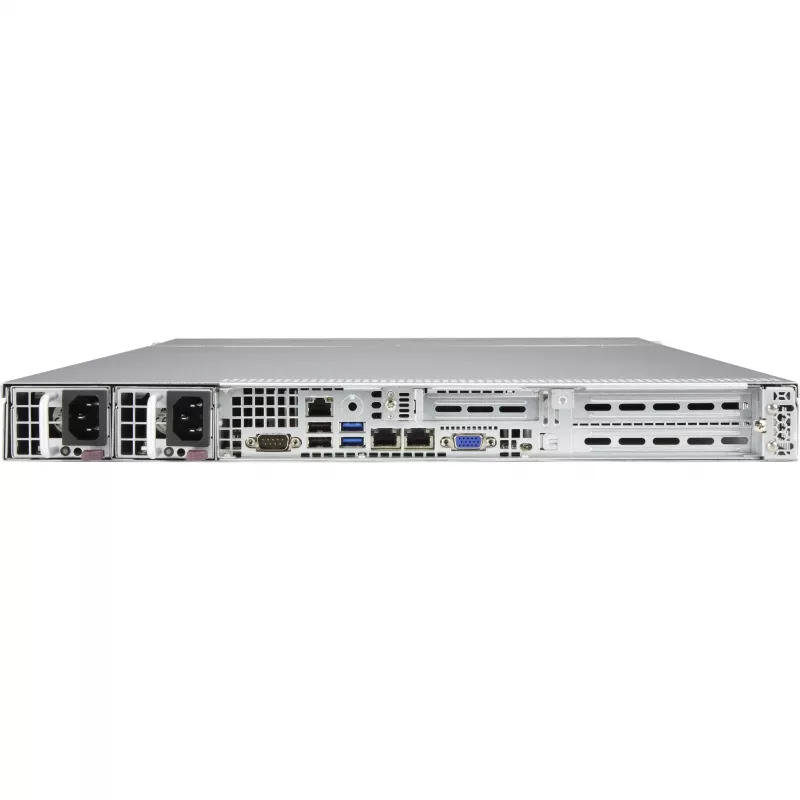

Supermicro CSE-815TQC4-R504WB3 servidor barebone rack 1U negro Intel/AMD

The Supermicro CSE-815TQC4-R504WB3 server barebone is a 1U rack chassis compatible with Intel and AMD processors, designed for space-efficient deployment in data centers and server rooms. It integrates a 600W internal power supply with support for 200–240V AC input and provides front-panel LED indicators for fan fail, HDD activity, LAN, power and overall system status. The chassis dimensions are 437mm (W) x 650mm (D) x 43mm (H), making it suitable for dense rack configurations where height and depth are constrained.

Advantages

This 1U Supermicro barebone combines compact footprint with practical front-status indicators to simplify monitoring and maintenance in rack environments. The included 600W power supply supports stable operation across a 200–240V AC range, and the front-panel LEDs help technicians quickly identify fan issues, drive activity, network link status and system power state without opening the chassis. The shallow-depth design supports deployment in cabinets with limited depth while maintaining typical server connectivity options.

Suitable for

• High-density rack deployments in data centers and colocation facilities
• Edge computing installations with limited rack space
• Virtualization hosts and small-to-medium business server applications
• Storage or compute nodes in clustered environments

Key specifications

• Form factor: 1U rack-mount chassis
• Processor compatibility: Intel and AMD (socket and board specific support depends on chosen motherboard)
• Power supply: 600W internal AC PSU
• AC input range: 200–240V
• Front-panel indicators: fan fail, HDD activity, LAN, power, system status LEDs
• Dimensions (W x D x H): 437mm x 650mm x 43mm
• Color: Black

How to use

Install a compatible motherboard and processor (Intel or AMD) according to the motherboard manufacturer’s instructions, mount memory modules and storage devices in the designated bays, and secure the barebone into a standard 19-inch rack using appropriate rail kits or mounting hardware. Connect the AC input to a 200–240V power source and verify the 600W PSU is seated and connected to the motherboard. Use the front-panel LEDs to confirm power, network link and drive activity during initial boot and troubleshooting. Follow anti-static handling procedures when installing components and verify airflow direction to maintain adequate cooling in 1U rack environments.

Recommendations

For reliable operation, pair the chassis with a motherboard that explicitly supports the desired Intel or AMD CPU family and fits the 1U cooling constraints. Ensure rack airflow is unobstructed and maintain ambient temperatures within data center guidelines. Regularly monitor the front-panel LEDs and replace failing fans or drives promptly to avoid service interruptions. Use compatible rack-mount rails for secure installation and verify that installed components do not exceed the thermal or power capacities of the 600W PSU.
