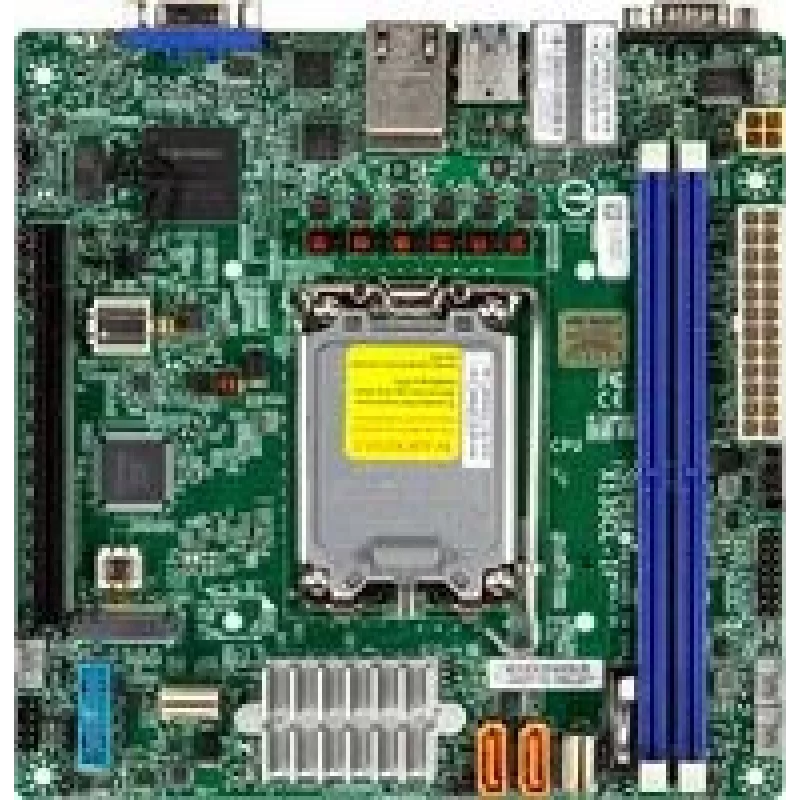

Supermicro MBD-X13SCL-IF-B placa base Mini-ATX Intel Xeon E-2400 LGA1700 chipset C262 DDR5 USB 3.2 Gen 1 Gigabit LAN gráficos integrados

The Supermicro MBD-X13SCL-IF-B is a high-performance Mini-ATX motherboard designed for Intel Xeon E-2400 series processors. Featuring the Intel C262 chipset, this board supports DDR5 ECC UDIMM memory, dual Gigabit Ethernet, and comprehensive management capabilities via IPMI 2.0. Ideal for server and workstation applications, it delivers reliable performance and advanced connectivity in a compact form factor.

Advantages

Supports the latest Intel Xeon E-2400 processors with LGA1700 socket, providing excellent computing power for demanding tasks. The DDR5 memory support ensures high bandwidth and efficiency, while the dual Gigabit LAN ports offer robust network connectivity. Integrated BMC with IPMI 2.0 enables remote management and monitoring, reducing downtime and maintenance costs.

Suitable for

• Small to medium business servers
• Workstations for content creation and engineering
• Edge computing and IoT gateways
• Virtualization and cloud infrastructure

Key specifications

• Form Factor: Mini-ATX
• CPU Socket: LGA1700
• Supported CPU Series: Intel Xeon E-2400
• Chipset: Intel C262
• Memory Type: DDR5 ECC UDIMM
• Memory Slots: 4x DDR5 DIMM slots
• Max Memory Capacity: Up to 128GB (4x 32GB)
• PCIe Slots: 1x PCIe 5.0 x16
• Storage Interfaces: 4x SATA 6Gb/s ports
• LAN Controller: Dual Gigabit Ethernet (2x RJ45)
• LAN Chipset: Intel I210-AT
• USB Ports: 2x USB 3.2 Gen 1 (Type-A rear), 2x USB 3.2 Gen 1 (via header), 2x USB 2.0 (via header)
• Video Output: 1x VGA (via BMC)
• Onboard Graphics: ASPEED AST2600 BMC
• Management Features: IPMI 2.0 with KVM over IP (Dedicated LAN port)
• Power Connectors: 1x 24-pin ATX, 1x 8-pin EPS (CPU)

Recommendations

This motherboard is an excellent choice for building a cost-effective server or workstation. Ensure your chassis supports Mini-ATX form factor and your power supply provides the necessary connectors. For optimal performance, pair with Intel Xeon E-2400 series processors and DDR5 ECC memory.
