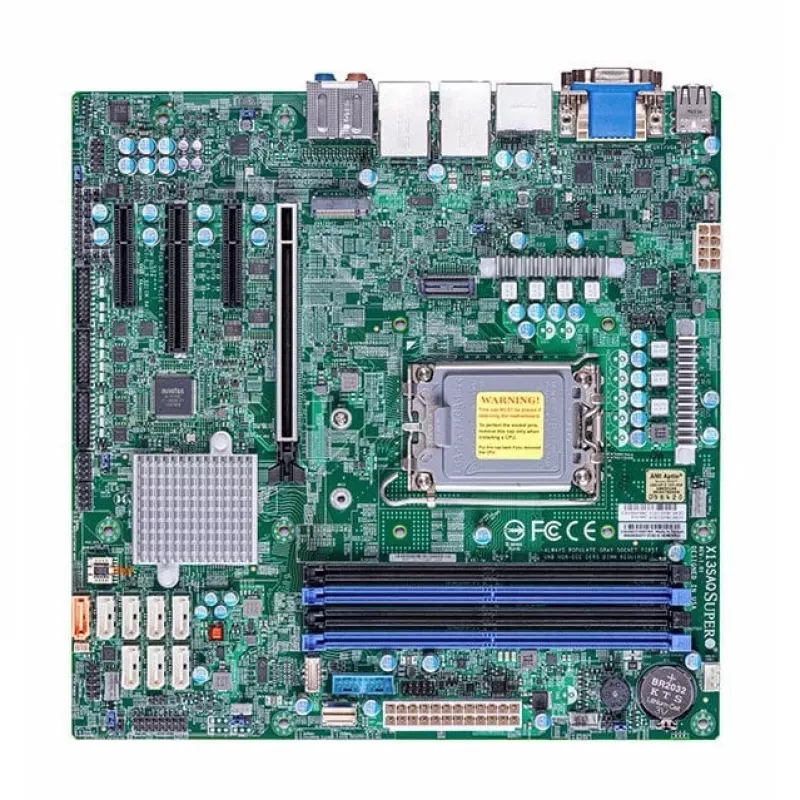

Supermicro Placa base X13SAQ (Retail Pack) LGA1700 DDR5 ATX

The Supermicro X13SAQ motherboard is a high-performance ATX board designed for Intel Xeon E-2400 and 13th/12th Gen Core processors. Featuring the Intel C266 chipset, it supports DDR5 ECC/non-ECC memory up to 128GB and offers extensive expansion options including PCIe 5.0 x16 slots, dual 2.5GbE LAN, and dedicated IPMI for remote management. This retail pack includes all necessary accessories for a straightforward installation.

Advantages

Robust power delivery with 24-pin ATX and dual EPS connectors ensures stable operation under heavy loads. The integrated ASPEED AST2600 BMC provides full IPMI 2.0 with KVM over IP for remote monitoring and control. Dual 2.5 Gigabit Ethernet ports offer high-speed networking, while the dedicated IPMI LAN keeps management traffic separate.

Suitable for

• Enterprise servers and workstations requiring reliable 24/7 operation
• Virtualization environments needing ECC memory support
• Content creation and scientific computing with multiple GPUs
• Remote management and data center deployments

Key specifications

• Socket: LGA1700 for Intel Xeon E-2400, 13th/12th Gen Core i9/i7/i5/i3, Pentium, Celeron
• Chipset: Intel C266
• Memory: 4x DDR5 UDIMM slots, up to 128GB ECC/non-ECC, 4800MHz
• Expansion: 2x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2
• Storage: 8x SATA 6Gb/s, 2x M.2 NVMe PCIe 4.0 x4 (2280/22110)
• Networking: 2x Intel i225-LM 2.5GbE, 1x Realtek RTL8211F IPMI LAN
• USB: 2x USB 3.2 Gen2 Type-A (rear), 2x USB 3.2 Gen1 Type-A (rear)
• Form Factor: ATX
• Management: IPMI 2.0 with KVM over IP

Recommendations

For optimal performance, pair with ECC DDR5 memory and a compatible Intel Xeon E-2400 or 13th Gen Core processor. Ensure your power supply has both 8-pin and 4-pin EPS connectors for full CPU power delivery.
