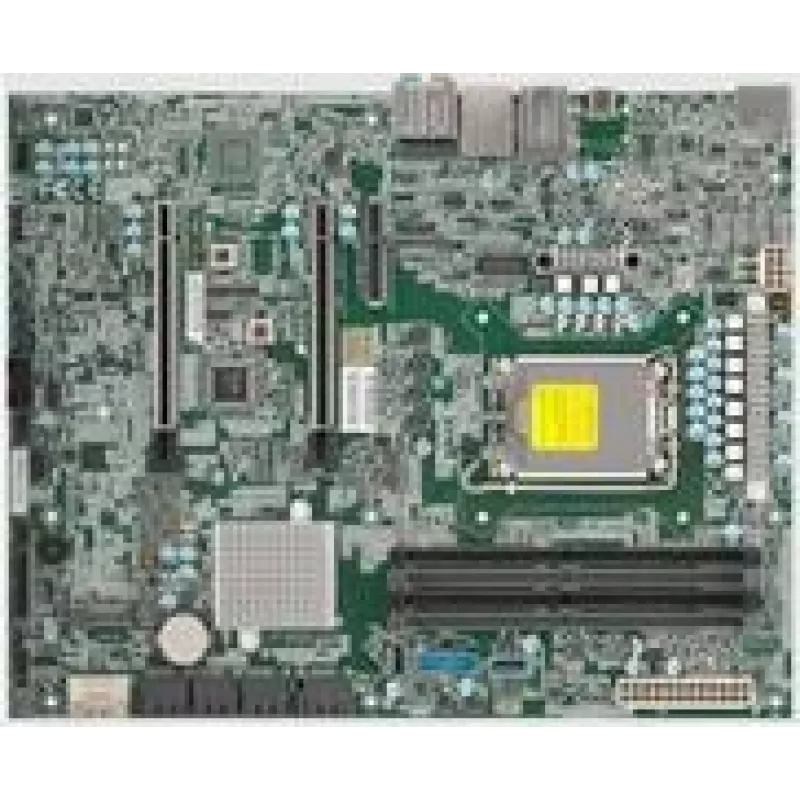

Supermicro Placa base X14SAE-F Intel Socket 1851 ATX DDR5 UDIMM RAID SATA 6Gb/s USB Type-C PCI-Express

The Supermicro X14SAE-F is a high-performance ATX motherboard designed for Intel Core Ultra 100/200 series processors (Socket 1851). Featuring the Intel W790 chipset, it supports up to 192 GB of DDR5 UDIMM memory and offers extensive storage and networking capabilities, making it ideal for demanding workstation and server environments.

Advantages

Dual 10 Gigabit Ethernet ensures lightning-fast network connectivity, while IPMI 2.0 with KVM over IP provides remote management. RAID 0, 1, 5, 10 support via Intel RSTe enhances data protection and performance. The board includes multiple PCIe 5.0 and 4.0 slots for expansion, and USB 3.2 Gen 2x2 Type-C ports for high-speed data transfer.

Suitable for

• Workstations for content creation, engineering, and scientific computing
• Server applications requiring reliable storage and networking
• Enterprise environments needing remote management capabilities

Key specifications

• CPU Socket: Intel Socket 1851
• Compatible Processors: Intel Core Ultra 100/200 Series
• Chipset: Intel W790
• Form Factor: ATX
• Memory: 4x DDR5 DIMM slots, up to 192 GB, up to 6400 MHz
• PCIe: 1x PCIe 5.0 x16, 1x PCIe 5.0 x8, 1x PCIe 4.0 x4
• M.2: 2x M.2 NVMe PCIe 4.0 x4
• SATA: 8x SATA 6Gb/s
• RAID: 0, 1, 5, 10
• LAN: Dual 10 Gigabit Ethernet (Intel X710-AT2)
• USB Rear: 2x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A
• Management: IPMI 2.0 with KVM over IP
• Power: 24-pin ATX, 2x 8-pin EPS 12V

Recommendations

For optimal performance, pair with Intel Core Ultra processors and high-speed DDR5 memory. Ensure your power supply supports the required connectors.
