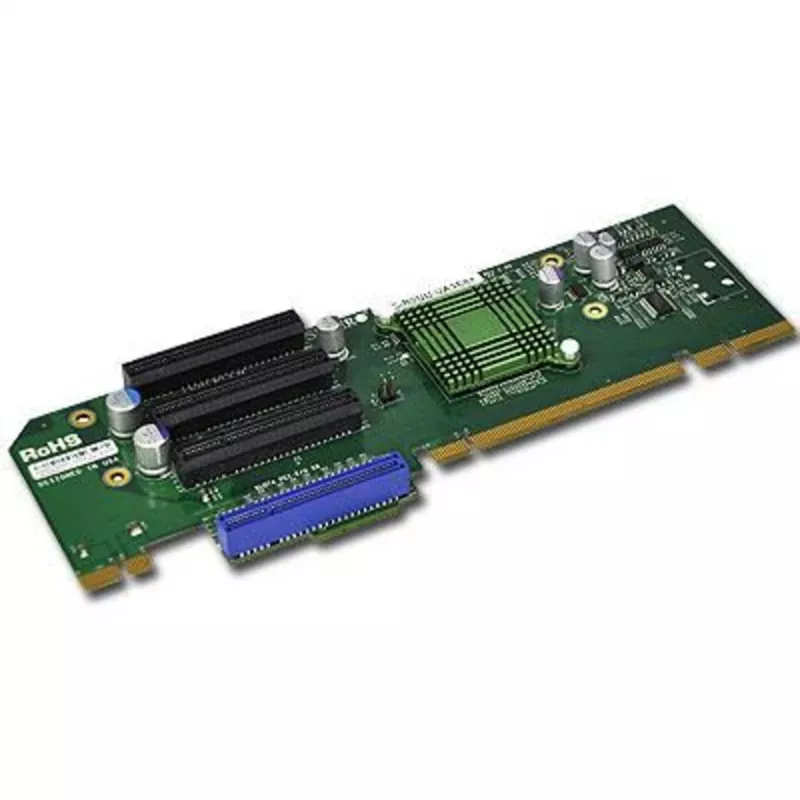

Supermicro RSC-R2UU-UA3E8+ Tarjeta Riser - PCI Express 3.0 x16/x8/x8 - 3 Ranuras - para Supermicro H8DGU, H8DGU-F, H8DGU-LN4F+

The Supermicro RSC-R2UU-UA3E8+ is a high-quality universal riser card designed to expand PCI Express capabilities in 2U Supermicro server systems. It provides three PCI Express 3.0 slots, enabling flexible expansion for networking, storage, or other add-on cards. This riser card is specifically compatible with Supermicro H8DGU, H8DGU-F, and H8DGU-LN4F+ motherboards, making it an ideal solution for upgrading or customizing your server infrastructure.

Advantages

With the RSC-R2UU-UA3E8+, you can easily add multiple PCIe devices without compromising on performance. The card supports PCI Express 3.0, offering high bandwidth for demanding applications. Its passive design ensures reliable operation without additional power requirements, drawing power directly from the PCIe slot. The riser card is engineered for seamless integration into 2U Supermicro chassis, providing a stable and efficient expansion platform.

Suitable for

• Supermicro H8DGU motherboard
• Supermicro H8DGU-F motherboard
• Supermicro H8DGU-LN4F+ motherboard
• 2U Supermicro server chassis

Key specifications

• Riser Card Type: Universal Riser Card
• Form Factor: 2U
• PCI Express Generation: PCI Express 3.0
• Total PCI Express Slots: 3
• Slot 1: PCI-E 3.0 x16 (physical), x8 electrical
• Slot 2: PCI-E 3.0 x8 (physical), x8 electrical
• Slot 3: PCI-E 3.0 x8 (physical), x8 electrical
• Interface: PCI Express
• Power Requirement: Passive (from PCIe slot)

Recommendations

For optimal performance, ensure your motherboard and chassis are compatible. This riser card is a perfect match for Supermicro H8DGU series motherboards and 2U chassis. It is recommended for users looking to expand their server's PCIe capabilities with reliable, high-speed connections.
