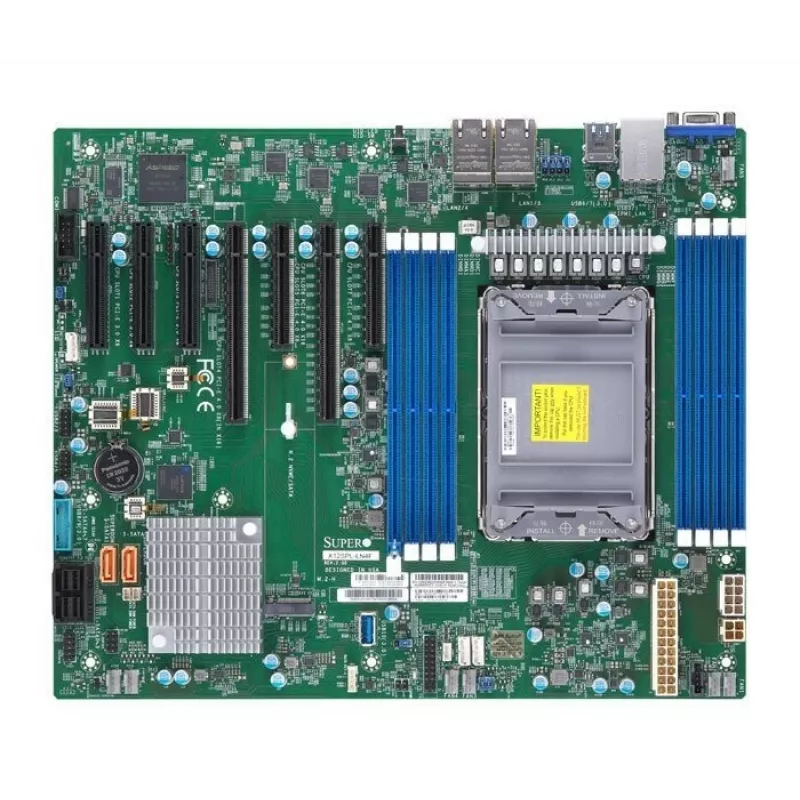

Supermicro X12SPL-LN4F placa base - ATX - LGA 4189 - chipset Intel C621A - 4x Gigabit LAN - gráficos integrados

The Supermicro X12SPL-LN4F is a high-performance server motherboard designed for 3rd Gen Intel Xeon Scalable processors. Featuring the Intel C621A chipset, this ATX board delivers exceptional reliability and scalability for demanding data center and enterprise applications. With support for up to 2TB of DDR4 ECC memory, extensive PCIe 4.0 expansion, and quad Gigabit Ethernet, it provides a robust foundation for virtualization, cloud computing, and storage solutions.

Advantages

Optimized for 3rd Gen Intel Xeon Scalable processors, the X12SPL-LN4F offers outstanding performance and energy efficiency. The Intel C621A chipset ensures advanced connectivity and data integrity. With 10 SATA3 ports and dual M.2 NVMe slots, it provides flexible storage options. The integrated ASPEED AST2600 BMC enables remote management via IPMI 2.0, simplifying system administration.

Suitable for

• Enterprise servers and data centers
• Virtualization and cloud computing platforms
• High-performance computing (HPC) clusters
• Network-attached storage (NAS) and storage servers

Key specifications

• CPU Socket: LGA 4189 (Socket P+)
• Supported CPUs: 3rd Gen Intel Xeon Scalable Processors
• Chipset: Intel C621A
• Memory: 8x DDR4 DIMM slots, up to 2TB DDR4-3200MHz ECC RDIMM/LRDIMM
• Expansion Slots: 2x PCIe 4.0 x16, 3x PCIe 4.0 x8
• Storage: 10x SATA3 (6Gbps), 2x M.2 NVMe (PCIe 4.0 x4)
• Network: 4x 1GbE LAN (Intel I210-AT), 1x Dedicated IPMI 2.0 LAN
• USB: 2x USB 3.2 Gen1, 2x USB 2.0 (rear)
• Video: 1x VGA (ASPEED AST2600 BMC)
• Form Factor: ATX (12" x 9.6")
• Power: 24-pin ATX, 2x 8-pin EPS

Recommendations

Ideal for system integrators and IT professionals building reliable, high-performance servers. Pair with 3rd Gen Intel Xeon Scalable processors and ECC memory for maximum stability. Suitable for use in Supermicro chassis such as SC113M, SC213, SC514, SC515, SC813M, SC825, SC825M, SC835, and SCLA25TQC.
