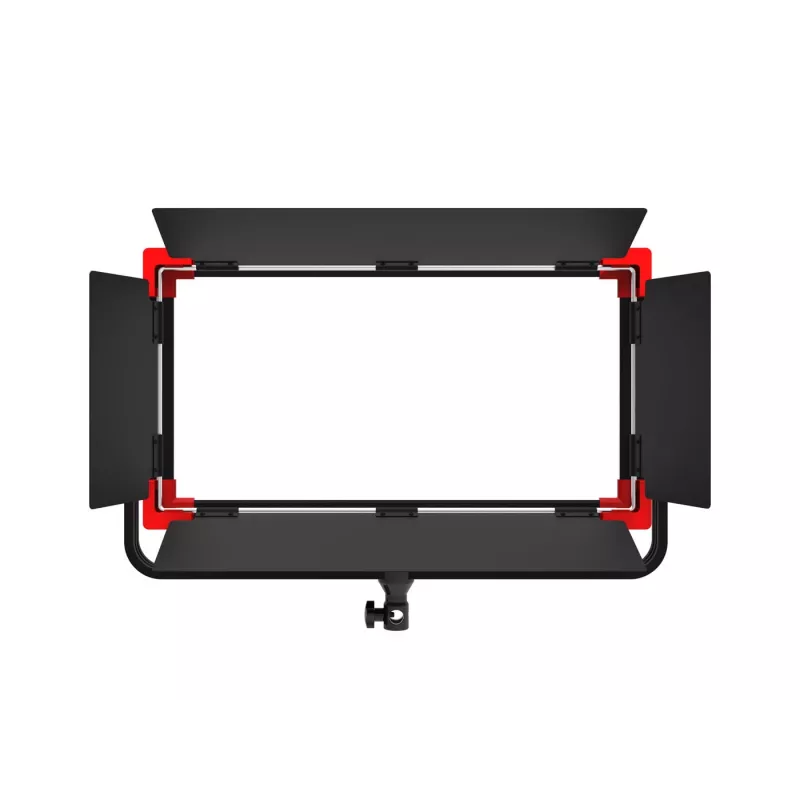

SWIT ELECTRONICS PL-S150D Panel LED SMD de estudio bicolor ultrabrillante con control DMX 150W

The SWIT ELECTRONICS PL-S150D is a professional-grade ultra-bright bi-color studio SMD LED panel light, delivering 150W of power with exceptional color accuracy. Designed for demanding video production, photography, and broadcast applications, this fixture offers stepless dimming from 0-100% and a wide color temperature range of 2800K to 6500K, allowing seamless adaptation to any lighting scenario. With a high CRI of ≥96 and TLCI of ≥97, colors are rendered naturally and consistently. The panel features a fanless passive cooling system for silent operation, and supports both AC (100-240V) and DC (12-17V) power inputs, including V-mount battery compatibility for on-location use. DMX512 control (2-channel) and onboard knobs provide flexible adjustment, while the included yoke with 5/8" receiver ensures easy mounting. The aluminum alloy housing ensures durability and efficient heat dissipation.

Advantages

Ultra-high brightness with 8000 Lux @ 1m (at 4400K) and a wide 120° beam angle. Flicker-free operation ensures compatibility with high-speed cameras. Silent passive cooling makes it ideal for studio and live sound environments. Versatile power options: AC mains or V-mount batteries for field use. Precise color control with stepless dimming and variable color temperature.

Suitable for

• Professional video and film production
• Studio photography and portrait lighting
• Broadcast and live streaming setups
• Event and stage lighting
• Content creation and YouTube studios

Key specifications

• Power Output: 150W
• LED Type: SMD Bi-Color LEDs
• Color Temperature: 2800K - 6500K
• Luminance: 8000 Lux @ 1m (at 4400K)
• CRI: ≥96
• TLCI: ≥97
• Dimming: 0-100% Stepless
• Control: DMX512 (2-channel), On-board Knobs
• Display: LCD Screen
• Beam Angle: 120°
• AC Input: 100-240V AC, 50/60Hz
• DC Input: 12-17V DC
• Battery Mount: V-mount
• Cooling: Fanless Passive Cooling
• Housing: Aluminum Alloy
• Mounting: Yoke with 5/8" Receiver
• Flicker-Free: Yes
• LED Lifespan: 50,000 hours

Recommendations

For optimal performance, use with a compatible DMX controller or power supply. The V-mount battery plate allows for portable operation. Ensure proper ventilation when mounting in confined spaces.
