Switch de red DAHUA DH-PFS3008-8GT-96 Unmanaged 8 puertos 1Gbps

Network switch DAHUA DH-PFS3008-8GT-96 Unmanaged 8-port 1Gbps

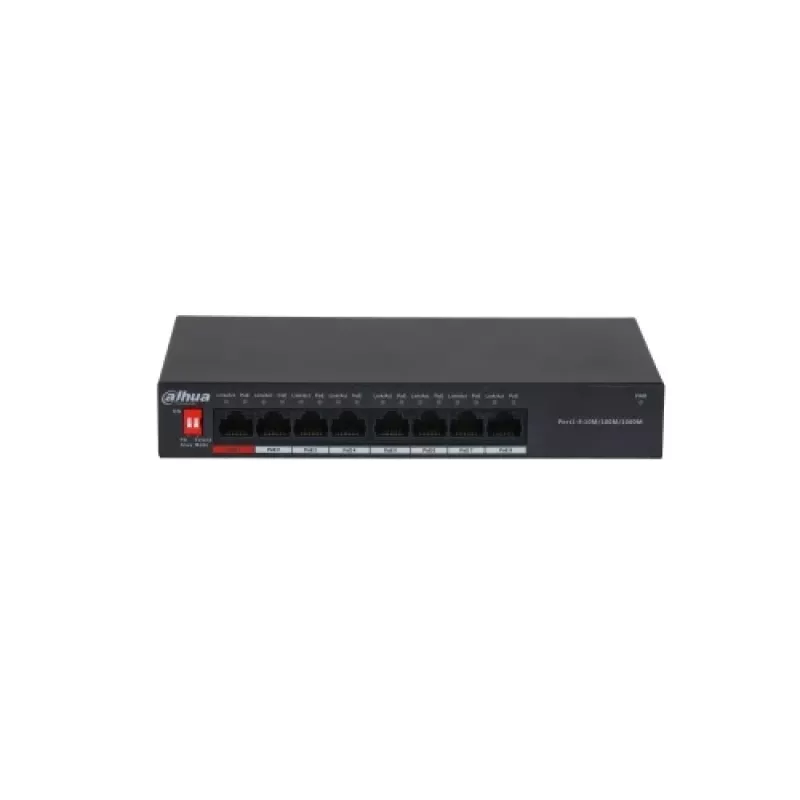

The DAHUA DH-PFS3008-8GT-96 is an unmanaged 8-port PoE switch with 8 x 1000 Mbps PoE ports, total PoE budget 96 W and up to 90 W per port (BT). Features: all-gigabit ports with a large buffer memory for high-definition streaming; long-distance PoE of up to 250 m (with bandwidth reduced to 10 Mbps) selectable by DIP switch or on the web interface; 8-pin simultaneous PoE power supply (pins 1/2/4/5 positive, 3/6/7/8 negative), supplying power over both signal and idle lines; red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE with up to 90 W per port for high-power devices; intelligent PoE power management with real-time monitoring; PoE Watchdog that can be enabled by DIP switch or web page; desktop-mount installation. Communication standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az. Specifications: model PFS3008-8GT-96; 8 x 10/100/1000 Mbps PoE ports; PoE consumption 96 W at full load, 3 W idle; PoE PIN assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-); PoE protocols IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt; switching capacity 20 Gbps; packet forwarding rate 11.9 Mpps; packet buffer 1.5 Mbit; MAC table 8K; operating humidity 5%-95%; power supply 48 V - 57 V DC; lightning protection common mode 2 kV, differential mode 0.5 kV; static protection air discharge 8 kV, contact discharge 6 kV; operating temperature -10 C to 55 C; weight 490 g; dimensions (W x D x H) 190 x 100 x 30 mm. Transmission performance (53 V supply, CAT5E/CAT6, max DC resistance < 10 ohm/100 m): IEEE802.3bt 90 W gives 71.3 W at 100 m / 1000 Mbps, 62 W at 150 m / 10 Mbps, 51 W at 200 m / 10 Mbps, 40 W at 250 m / 10 Mbps; Hi-PoE 60 W gives 53 W at 100 m / 1000 Mbps, 50 W at 150 m / 10 Mbps, 47 W at 200 m / 10 Mbps, 37 W at 250 m / 10 Mbps; IEEE802.3at 30 W gives 25.5 W at 100-250 m (1000 Mbps at 100 m, 10 Mbps beyond). Actual transmission distance may vary with the power draw of connected devices and the cable type and condition.

Genuine Dahua product — MPN: 3008-8GT-96 · EAN: 6923172524928.
