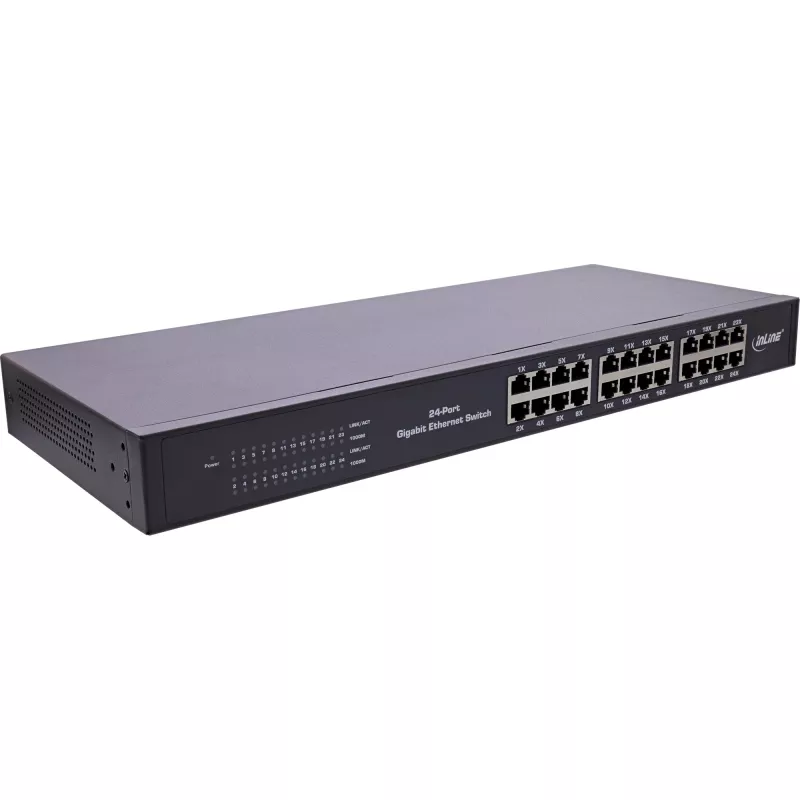

Switch de red InLine Gigabit 24 puertos, 1 Gb/s, 48,26 cm (19"), 1U, metal, sin ventilador

The InLine® 24-Port Green Gigabit Switch offers a seamless network connection. The 24x 10/100/1000Mb/s auto-negotiation ports support all Auto MDI/MDIX. The switch is a cost-effective, easy-to-use, and powerful solution to upgrade your legacy network to a Gigabit network.
The switch supports IEEE802.3az Energy Efficient Ethernet (EEE), which reduces power consumption by detects the connected cable length and operating mode and automatically adjusts the signal intensity, which reduces energy consumption and protects our environment.
Features

Meets the standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x and IEEE802.3az
EEE (Energy Efficient Ethernet): Reduced power consumption thanks to intelligent energy management
Supports up to 16K MAC addresses
Supports IEEE802.3x Flow control for full-duplex mode and back-pressure for half-duplex mode
Supports jumbo frames
LED indicators for monitoring power supply and link/activity< /ul>
Technical data

Chipset: RTL8382L+ 2x RTL8218D + 2x RTL8231
Stan standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az

Cables to be used:
10Base-T: UTP cable Cat. 3, 4, 5 (max. 100m)
EIA/TIA-568 100Ohm STP (max. 100m)
100Base-TX: UTP cable Cat. 5, 5e or higher (max. 100m)
EIA/TIA-568 100Ohm STP (max. 100m)
1000Base-T: UTP cable Cat. 5e or higher (max. 100m)

Number of ports: 24x 10/100/1000Mb/s auto-negotiation ports
LED indicators: LINK/ ACT/SPEED (green), Power (red)
Transmission method: Store-and-forward
Switching capacity: 52Gb

Frame Filtering and forwarding rate:
10Mb/s: 14880pps
100Mb/s: 148800pps
1000Mb/s: 1488000pps


Dimensions (WxDxH): 440x180x44mm (19" housing)
Ambient conditions:
Operating temperature: 0°C - 40°C
Storage temperature: -10° C - 70°C
Operating humidity: 10% - 90%, non-condensing
Storage humidity: 5% - 90%, non-condensing
Power supply: AC 100V~240V 50/60Hz (internal power supply) / power consumption: Max. 21 Watt
incl. 19" bracket for rack mounting

InLine Gigabit Network Switch 24-Port, 1Gb/s, 48,26cm (19"), 1U, metal, fanless. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

How to use

Mount the switch in a 19" rack using the included 19" brackets or place it on a flat, stable surface. Connect each network device to the RJ-45 ports using appropriate Ethernet cables (Cat5e or higher for Gigabit speeds). Plug the power cord into an AC 100–240 V outlet. The LEDs indicate power status and link/activity; after power-up the switch operates in unmanaged mode and performs auto-negotiation and Auto MDI/MDIX on each port automatically. No additional configuration is required for basic switching functions.

Recommendations

For optimal performance, use Cat5e or higher cables for Gigabit connections and keep cable runs within 100 m. Install the switch in a well-ventilated rack or cabinet, avoid exposure to temperatures outside the specified range, and ensure stable AC power to prevent network interruptions. Regularly check LED indicators to monitor link and activity status.
