Switch de red ROLINE 21.13.1162 Gigabit Ethernet 5 puertos PoE

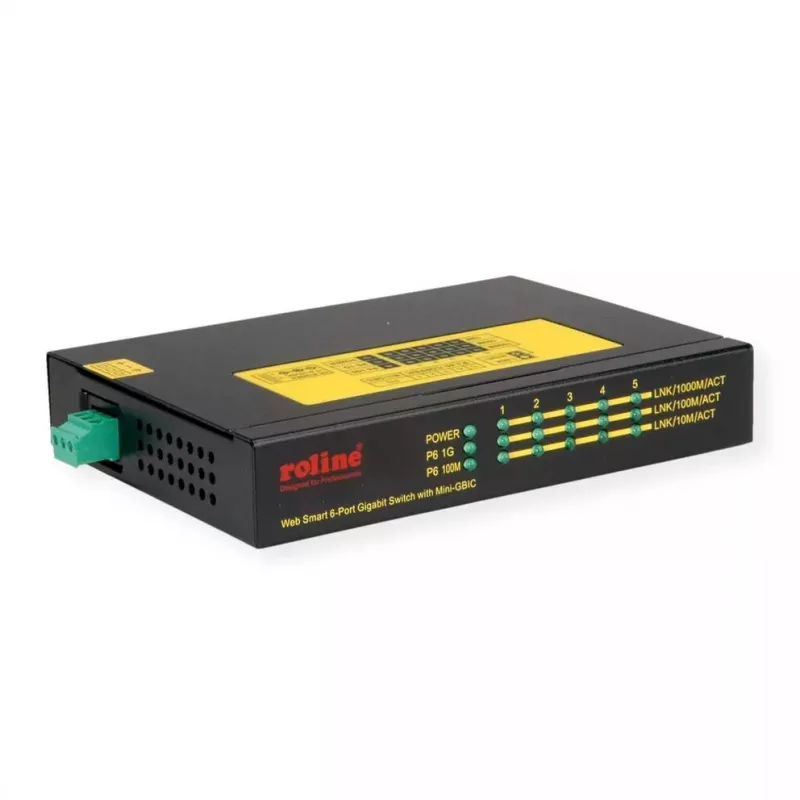

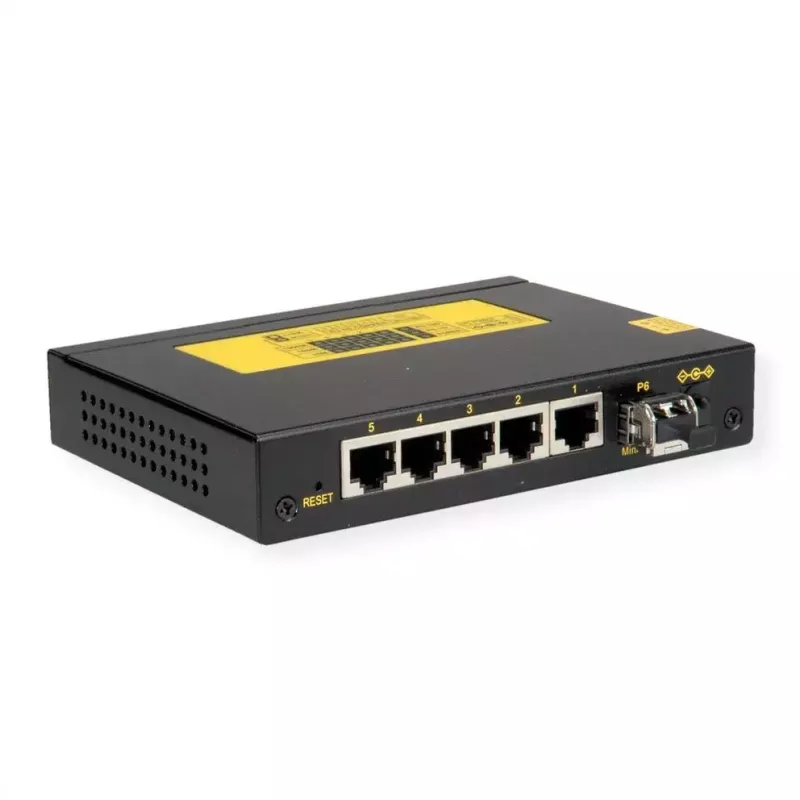

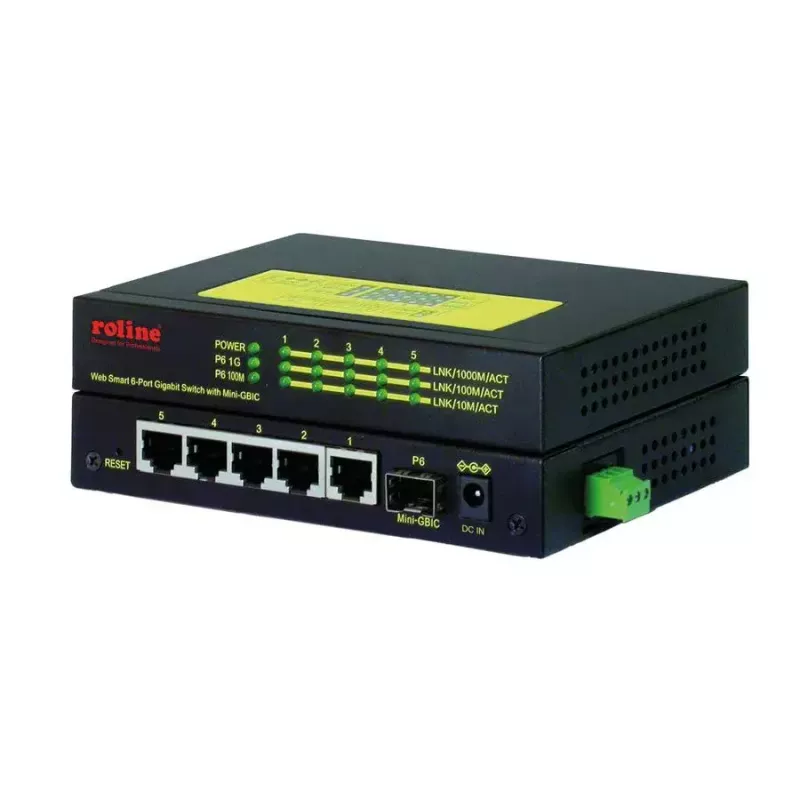

The ROLINE 21.13.1162 is a compact Gigabit Ethernet switch with five RJ-45 ports and one additional SFP port. It supports Power over Ethernet (PoE) and operates in full duplex mode, complying with IEEE standards including 802.3af and 802.3at. The switch accepts a DC input voltage from 7 to 57 V via a DC-in jack and is designed for industrial network environments where both data and power delivery to devices are required.

Advantages

The switch combines five Gigabit RJ-45 ports with an SFP slot for fiber connectivity, enabling flexible deployment in mixed copper–fiber networks. Integrated PoE support simplifies installation of powered devices such as IP cameras and access points by delivering power and data over the same cable. Wide DC input range increases compatibility with various industrial power supplies, and the black, compact housing is suitable for constrained installations.

Suitable for

• Connecting and powering IP cameras in surveillance systems
• Supplying power and network connectivity to wireless access points
• Edge and industrial network segments requiring Gigabit ports and an SFP uplink
• Small office or control cabinets where PoE reduces separate power cabling

Key specifications

• Manufacturer: ROLINE
• Model / MPN: 21.13.1162
• Ports: 5 × Gigabit RJ-45, 1 × SFP
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Operation: Full duplex
• Input voltage: DC 7–57 V via DC-in jack
• Colour: Black
• EAN: 7611990138111

How to use

Mount the switch in the desired location and connect the DC power source to the DC-in jack with a compatible power supply within the 7–57 V range. Connect Ethernet devices to the RJ-45 PoE ports using Cat5e or higher cables to provide both data and power. Use the SFP port for fiber uplink by inserting a compatible SFP module. Ensure connected devices support the PoE standard used (802.3af/at) and verify link/activity LEDs for connection status.

Recommendations

Use shielded or properly rated Ethernet cables in industrial environments and verify power budget requirements for all PoE-powered devices before deployment. Maintain ventilation around the unit and secure it in an appropriate enclosure if installed in harsh conditions.
