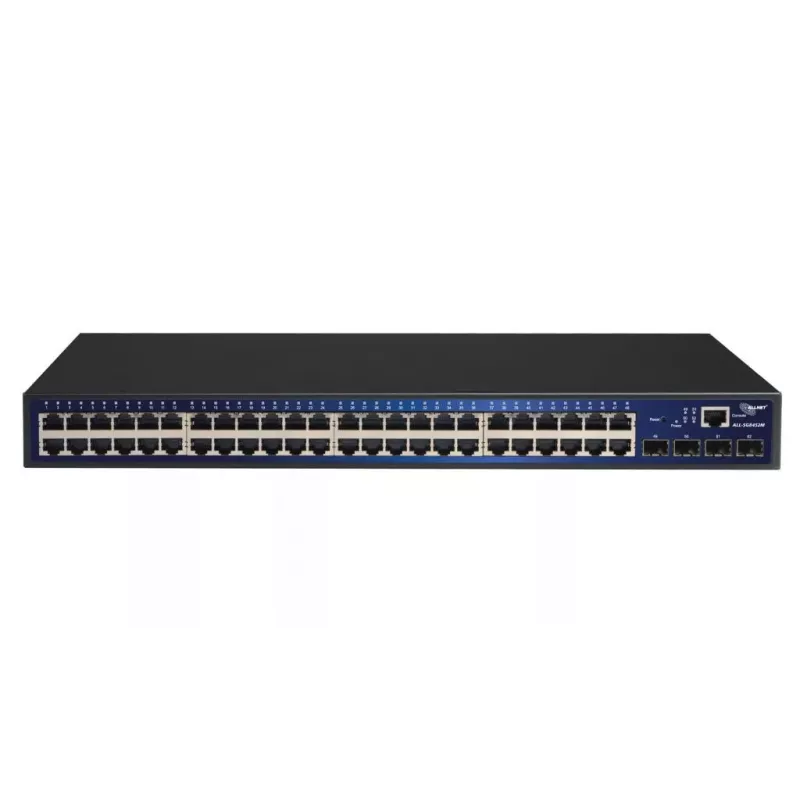

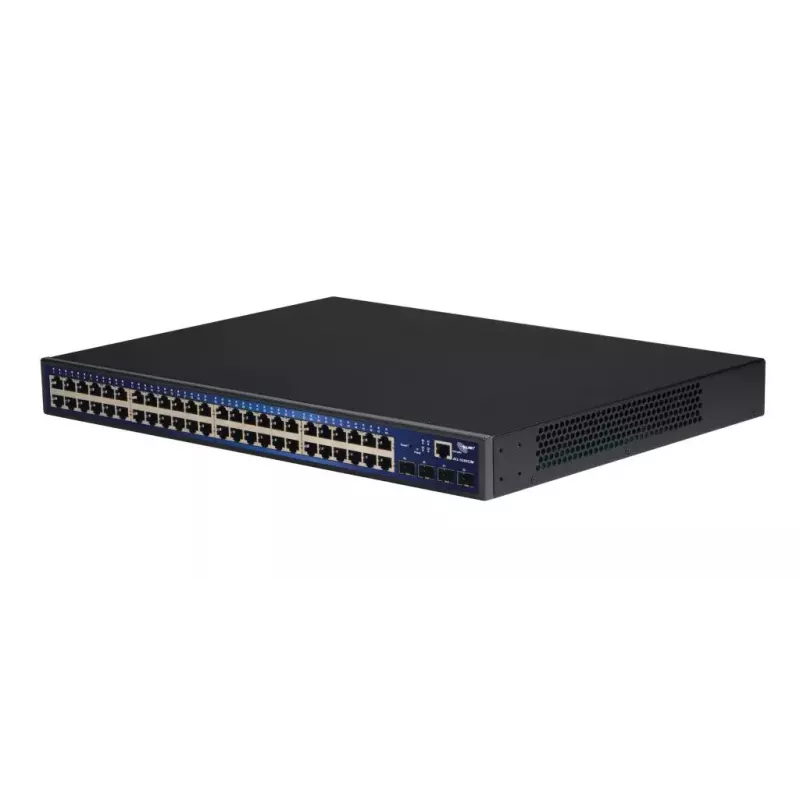

Switch gestionado ALLNET ALL-SG8452M

The ALLNET ALL-SG8452M is a managed L2 Gigabit Ethernet switch with 48 10/100/1000 Mbps RJ45 ports. It combines Gigabit, Fast Ethernet and Ethernet support in a single compact unit and offers Auto-Negotiation and Auto MDI/MDIX on all UTP ports. With a switching capacity of 104 Gbit/s and support for standard IEEE protocols, the ALL-SG8452M is designed to upgrade networks to full 1 Gbps connectivity and to reduce bandwidth bottlenecks in modern network environments.

Advantages

The managed ALL-SG8452M provides hardware-level Gigabit performance across 48 ports while remaining cost-effective and easy to deploy. Full-duplex support and a broad set of IEEE standards (including 802.1Q VLAN tagging, 802.3ad link aggregation and 802.1p QoS) ensure efficient traffic handling and interoperability with existing infrastructure. Auto-Negotiation and Auto MDI/MDIX simplify cabling and device connection.

Suitable for

• Small and medium business LANs requiring 1 Gbps access ports
• Server rooms and distribution switches in hierarchical networks
• Environments needing VLAN segmentation, QoS and link aggregation

Key specifications

• Ports: 48 × RJ45, 10/100/1000 Mbps (Auto-Negotiation, Auto MDI/MDIX)
• Switch type: Managed L2
• Switching capacity: 104 Gbit/s
• Networking standards: IEEE 802.1s, 802.3x, 802.3u, 802.3ad, 802.3ab, 802.3, 802.1w, 802.1p, 802.1ab, 802.1Q, 802.1D
• Color: Black

How to use

Install the ALL-SG8452M in a rack or on a flat surface, connect power and link the required devices to the RJ45 ports using standard Cat5e/Cat6 cables. Access the management interface according to the product manual to configure VLANs, QoS, link aggregation and other L2 features. Ensure connected devices negotiate at the desired speeds or set port parameters manually via the switch management if needed.

Recommendations

For best performance, use Cat5e or Cat6 cables for Gigabit connections, enable link aggregation for uplinks to servers or core switches, and configure VLANs and QoS to separate and prioritize critical traffic.
