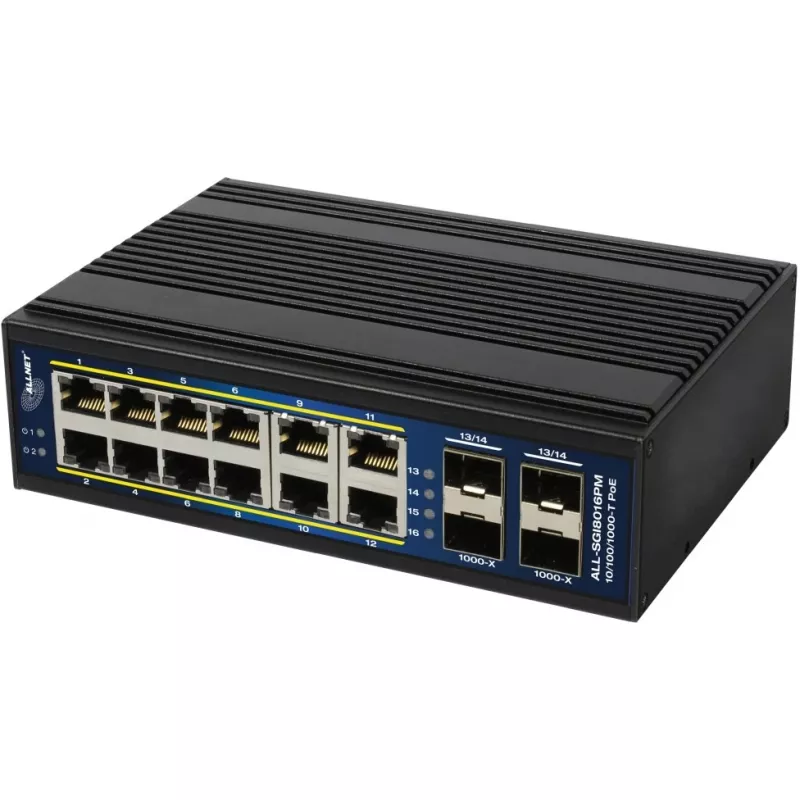

Switch gestionado ALLNET ALL-SGI8016PM L2+/L3 12x Gigabit Ethernet PoE

The ALLNET ALL-SGI8016PM is a managed L2+/L3 switch with 12 Gigabit Ethernet RJ-45 ports and 4 SFP slots, designed for structured small to medium-sized networks. It supports Power over Ethernet (PoE) on the copper ports and implements a switching capacity of 32 Gbit/s and a MAC address table of 16,000 entries for stable frame forwarding and address learning. The switch conforms to a range of Ethernet and network control standards including IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at, and several IEEE 802.1 series standards for VLAN, QoS and redundancy.

Advantages

The device provides centralized management and advanced L2+/L3 capabilities suitable for traffic segmentation, QoS and link aggregation. Integrated PoE support simplifies deployment of powered devices such as access points and IP cameras without separate power cabling. Compact form factor and black enclosure allow flexible placement in office racks or telecom cabinets. Compliance with multiple IEEE standards ensures interoperability with existing network equipment.

Suitable for

• Small to medium enterprise access layer with PoE deployment
• Connectivity for IP cameras and wireless access points
• Edge switching with VLAN segmentation and QoS
• Network environments requiring fiber uplinks via SFP modules

Key specifications

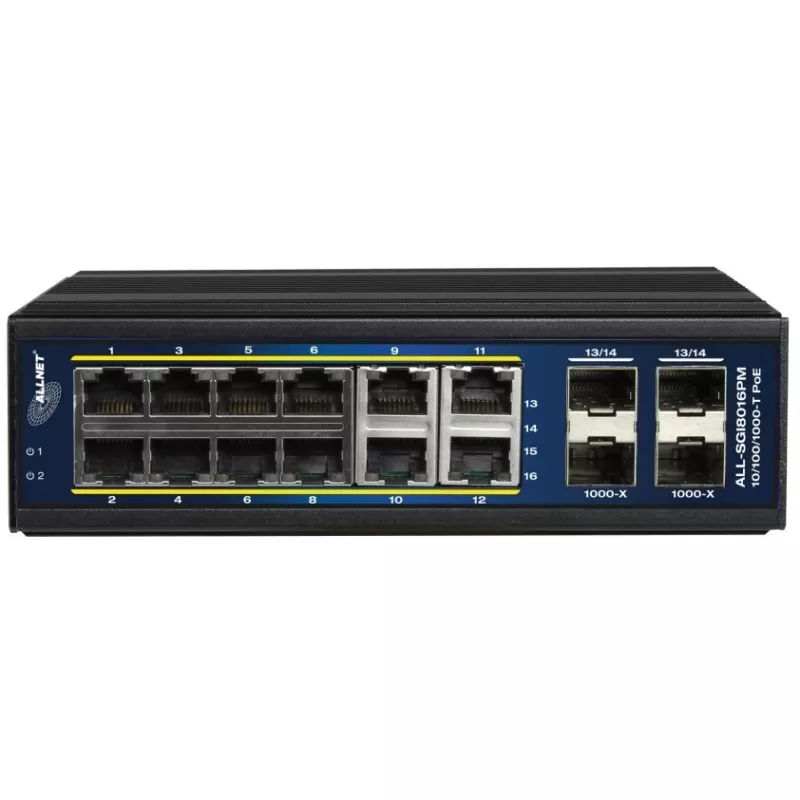

• Port count: 12 Gigabit Ethernet RJ-45 ports and 4 SFP slots
• Switching capacity: 32 Gbit/s
• MAC address table: 16,000 entries
• PoE support: IEEE 802.3af and IEEE 802.3at on compatible ports
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s, 802.1x, 802.3ad
• Switch type: Managed L2+/L3
• Physical colour: Black
• Weight: 0.53 kg

How to use

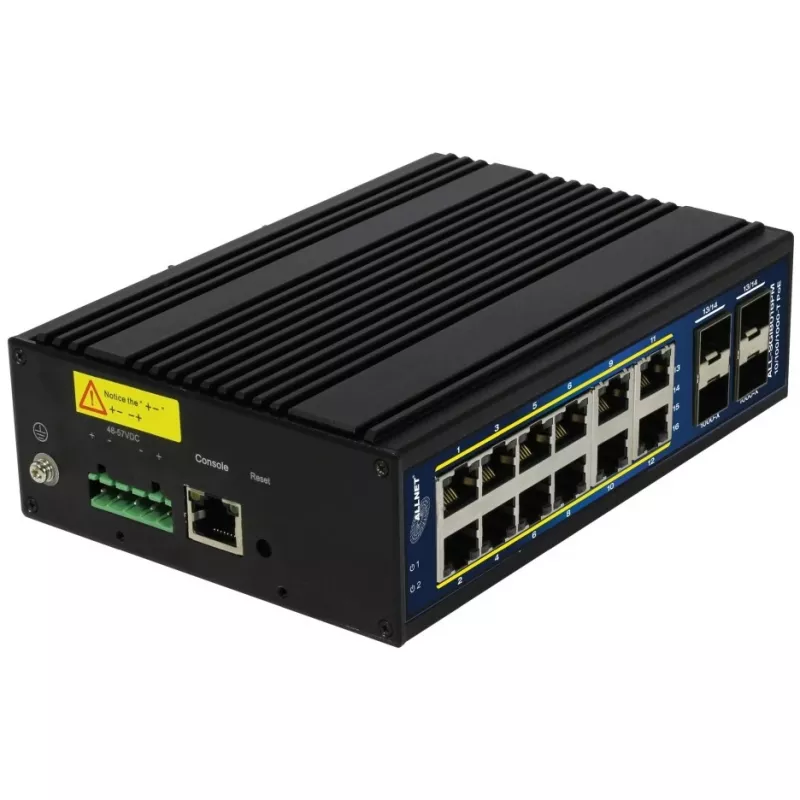

Install the ALLNET ALL-SGI8016PM in a ventilated rack or on a stable surface and connect power according to the installation manual. Connect network devices to the Gigabit RJ-45 ports and plug SFP transceivers into the SFP slots for fiber uplinks if required. Access the management interface using the provided web GUI, CLI or management protocol to configure VLANs, PoE settings, link aggregation, QoS policies and L3 routing features as needed. Monitor port status and performance through the management console to ensure correct operation.

Recommendations

For reliable PoE delivery, verify the total PoE budget and distribution per port before connecting multiple powered devices. Use SFP modules that match your fiber type and distance requirements. Apply VLANs and QoS to segregate traffic and prioritise latency-sensitive services such as VoIP and video streaming.
